INSTRUCTION FOR USE
ENGLISH
8

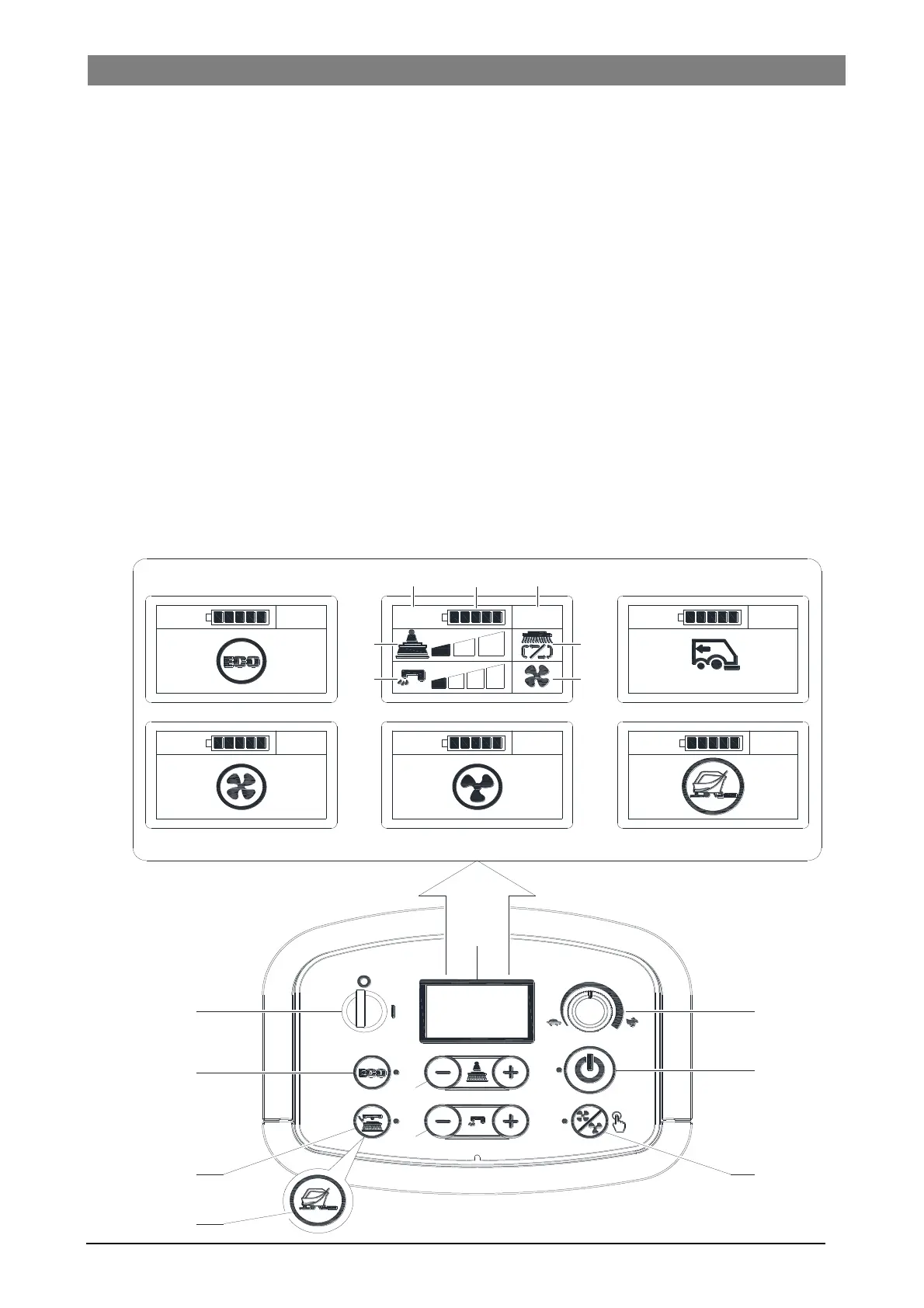

CONTROL PANEL (as shown in Figure 3)
41. Multifunction display
Items displayed:
A) Battery type
B) Battery charge level
C) Hours worked
D) ECO mode
E) Vacuum normal mode
F) Vacuum silence mode
G) Reverse mode
H) Extra pressure active
I ) Detergent solution flow quantity
J ) Brush work mode
K) Vacuum mode
L) Floor prep mode
42. Ignition key (0 - I)
43. ECO mode button
LED on-below function activated
water flow at minimum (level 1)
pressure at minimum (level 1)
The vacuum in silent mode
44. Brush/pad-holder release button (only for disc
machine)
Flashing LED-Releasing system activated
45. Floor prep button (only for orbital machine)
Travel speed pre-set to 1Km/hour
LED on-below function activated
water flow at minimum (level 1)
pressure at maximum (level 3)
The vacuum in normal mode
46. Brush pressure adjusting button
47. Solution flow adjusting button
48. Speed adjuster
49. One-button start
LED on below-function activated
water system minimum (level 1)
pressure at minimum (level 1)
vacuum system normal
50. Vacuum system adjustment button (press the button
1 second to activation)
LED on-normal mode
Flashing LED-Slient mode
1S
0000.H
AGM
R
AGMAGM
AGM AGM
0000.H0000.H
0000.H 0000.H
AGM
0000.H
I
H
K
J
L
B
G
D
E
F
41
48
49
50
42
43
44
47
46
A
C
45
Figure 3
