Viper Fang15B - MACHINE SET UP & INSTALLATION; UNCRATING MACHINE; Battery Installation and Disassembly; Setup and Pre-operation Checks

2
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
US
ER!MANUAL!
MA
CHINE SET UP & INSTALLATION
UNCRA
TING MACHINE
Be
sure and check packing carton for any damage. Immediately report any damage to carrier.
Check contents of package to ensure that the following items are included:
1. Machine
2. Batteries(x2)
3. Squeegee assembly
4. Owners Manual
5. Electric Battery Charger Manual（if equipped）
6. Connecting wire for battery and charger (if equipped)
7. Brush
B
ATTERY DISASSMBLY AND INSTALLATION
1. Sw
itch off the main switch. (47)
2. Remove the recovery tank. (2)
3. Remove the bolt from batteries. (16) Remove or change batteries.

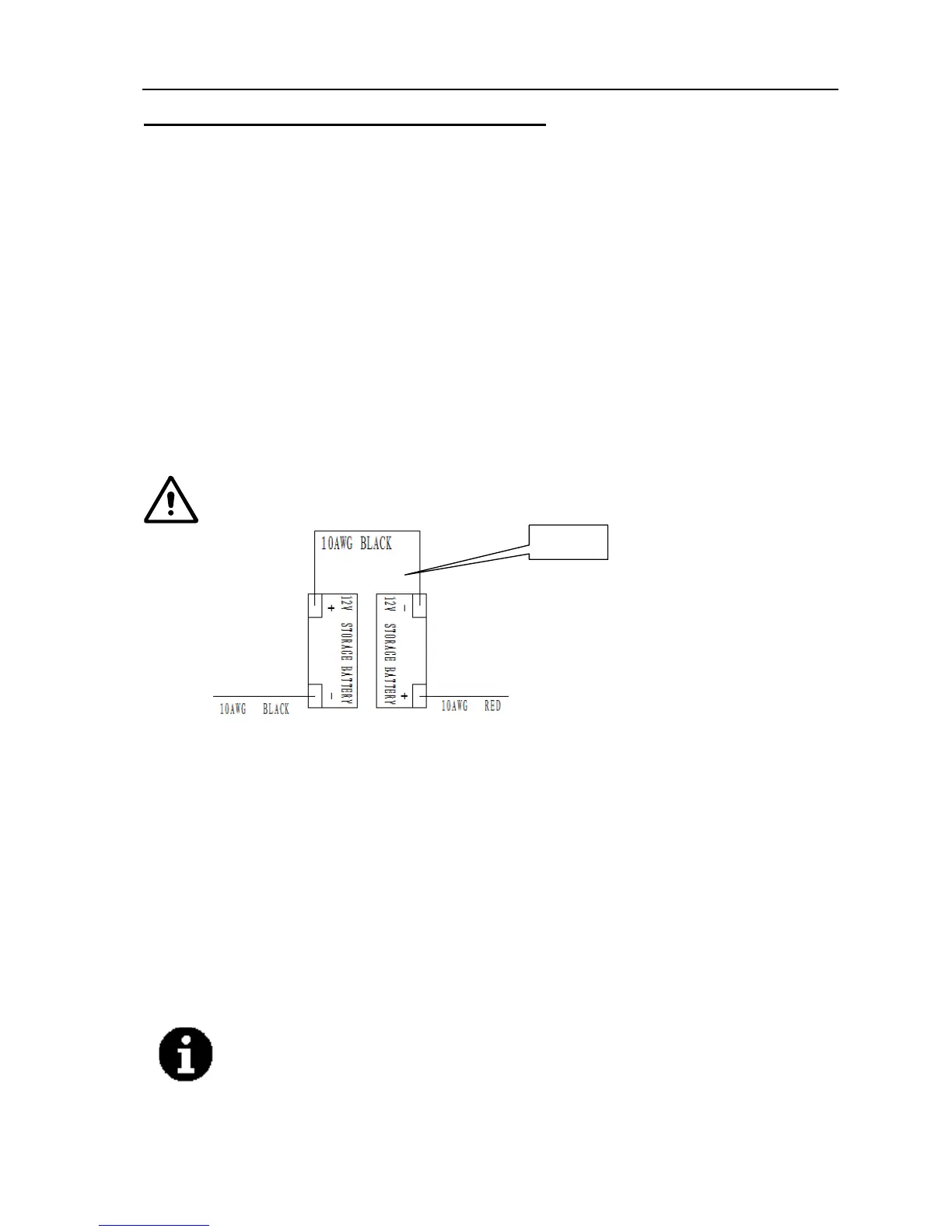

4. Install the batteries on the machine according to the diagram below.
5. Install the recovery tank.
WARNI
NG
Do
not connect+ to +,or - to-,when disassembly or install the batteries. It is very dangerous.
!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!
B
attery charging
Char
ge the batteries. (see Maintenance section)
MA
CHINE SET UP
Pr
e-operation checks
1． Sw
eep or dust mop the surface to be cleaned.
2． Check that squeegee is properly installed.
3． Lower the squeegee (33) with the lever. (26)
4． Ensure batteries are fully charged. (see Battery Charging section)
5． Check that brush is properly installed.
B
rush/Pad driver installation and disassembly
NOTE
On
ly install manually. If automatically installed, it will wear brush hub.
Make sure that the tanks are empty before removing the brush.
1. Tu
rn off the machine.
2. Lay down the machine in the position shown in figure 2. Pull up lift lever (26) to raise the
squeegee. (33)
Fi
gure!1!
