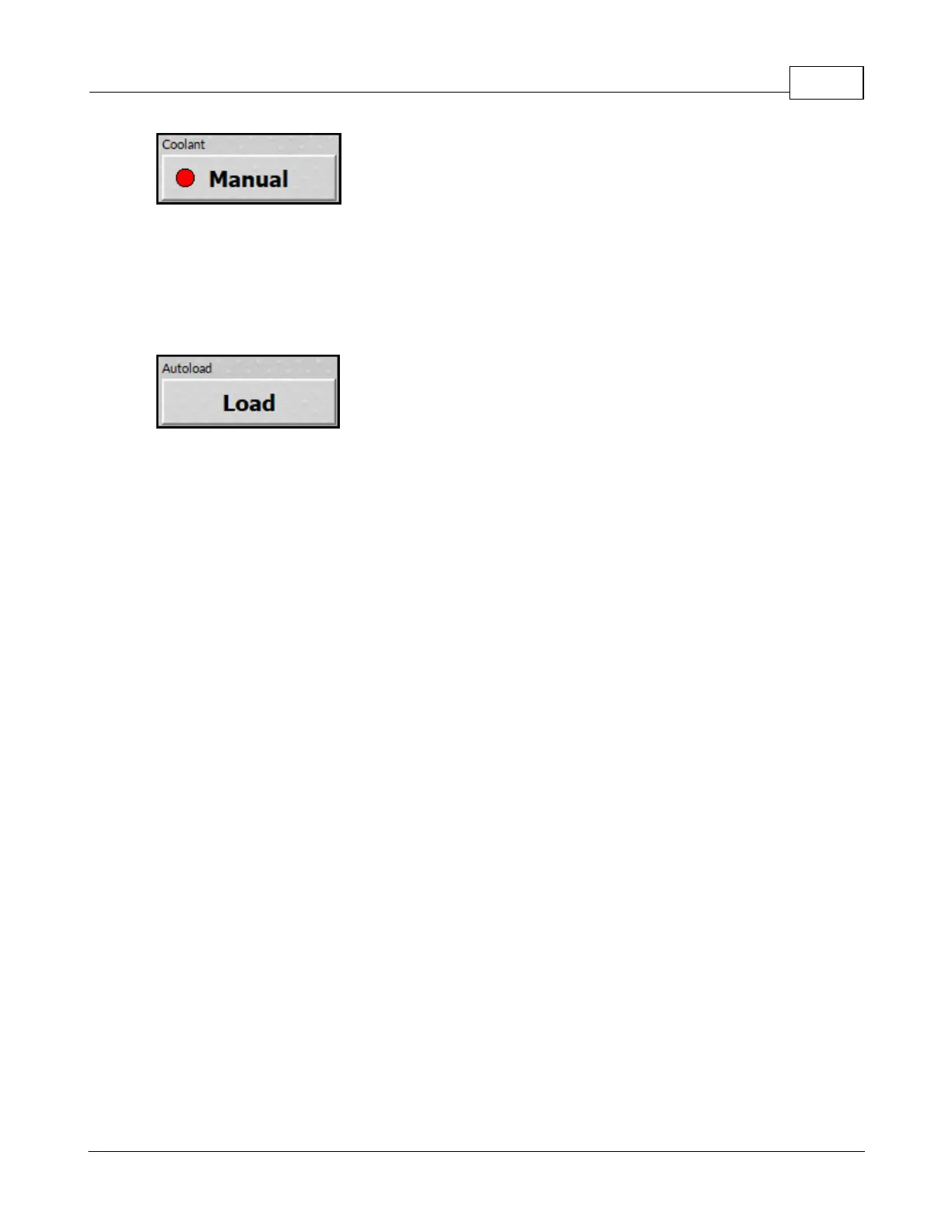

The Coolant button allows the default state of the coolant/misting system/pump to be set. Pressing this
button toggles between Manual, Auto and Disabled.
This button is only used if software other than the Vision software is being used.
The default setting is manual but the Vision software overrides this value each time a job is sent to the
machine to match the material settings used in the Vision software.
The Autoload button changes how the machine starts running jobs. Pressing this button toggles
between Load, Load_Start and Disabled.
The default setting is Load.
A setting of Load will display the run screen automatically when a job is sent to the machine allowing the
operator to press start to run the job.
A setting of Load_Start will automatically start running a job wh
6.2.12 Diagnostic screen
Enter topic text here.
6.3 Set Surface Procedures
The procedure for setting the surface is as follows:
1. Use the X & Y jog buttons to move the spindle over the material to be engraved.
2. Press the Set Surface button. The Pendant screen will display the message below
