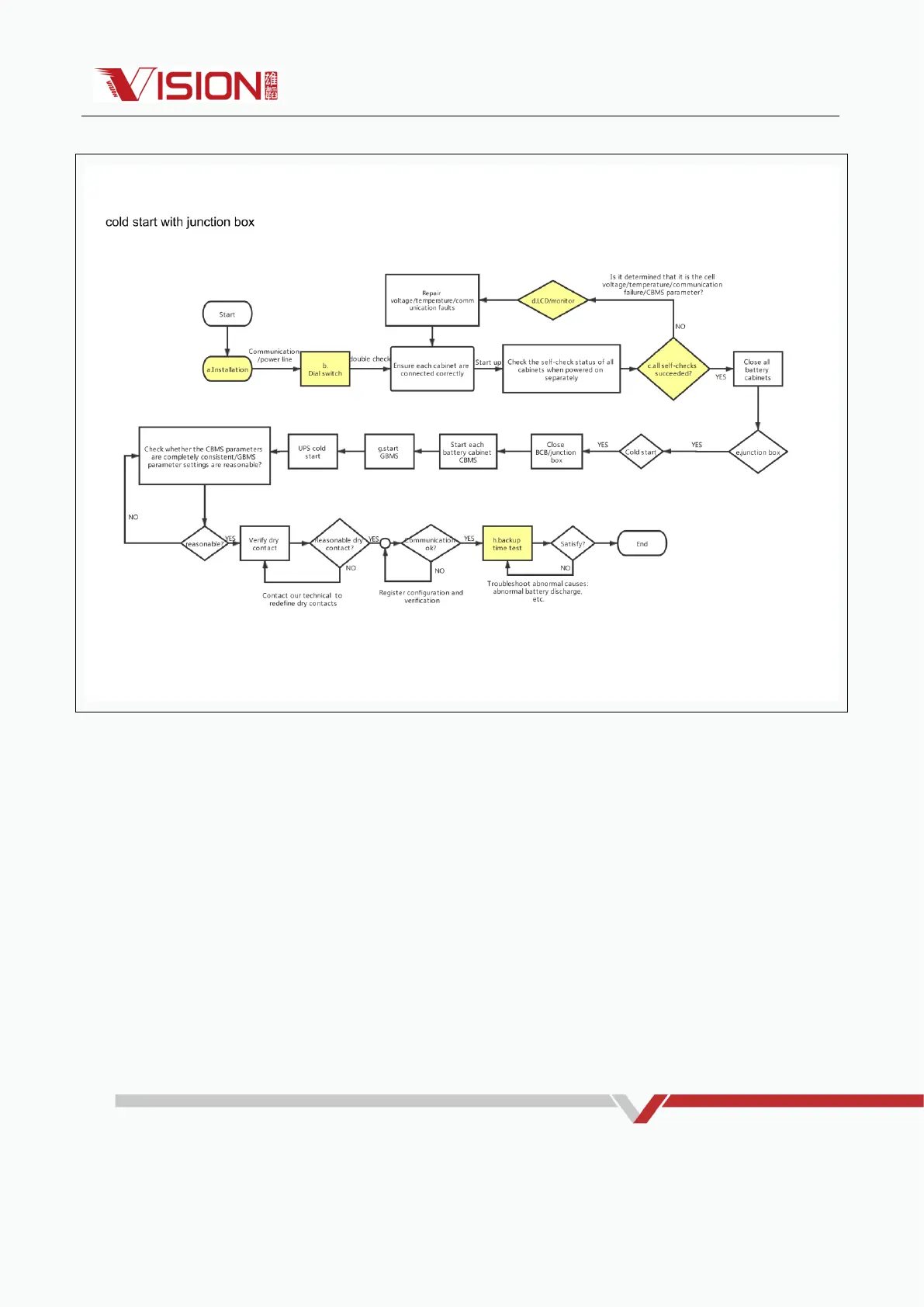

Figure 11.1-3 Cold start with junction box
 Step 1: Start installing batteries, ensure the battery power cables are correctly connected
and the communications cables have an anti-freeze mechanism. Connect the cables
according to COM1/COM2.
 Step 2: Before starting the system, set the DIP codes of CBMS and GBMS. Dip rules have
been put in the manual.
 Step 3: Double check the connection of cabinets are corrected
 Step 4: Start the cabinets. Check the self-check status of all cabinets when powered on
separately.
