3. POWERMASTER-10 G2 INSTALLATION
8
D-304762 PowerMaster-10/30 G2 Installer's Guide
3. POWERMASTER-10 G2 INSTALLATION
Required tool: Philips screwdriver #2.
PowerMaster-10 mounting process is shown in Figures 3.1 - 3.9.
3.1 Opening the PowerMaster-10 G2 Control Panel and Bracket Mounting

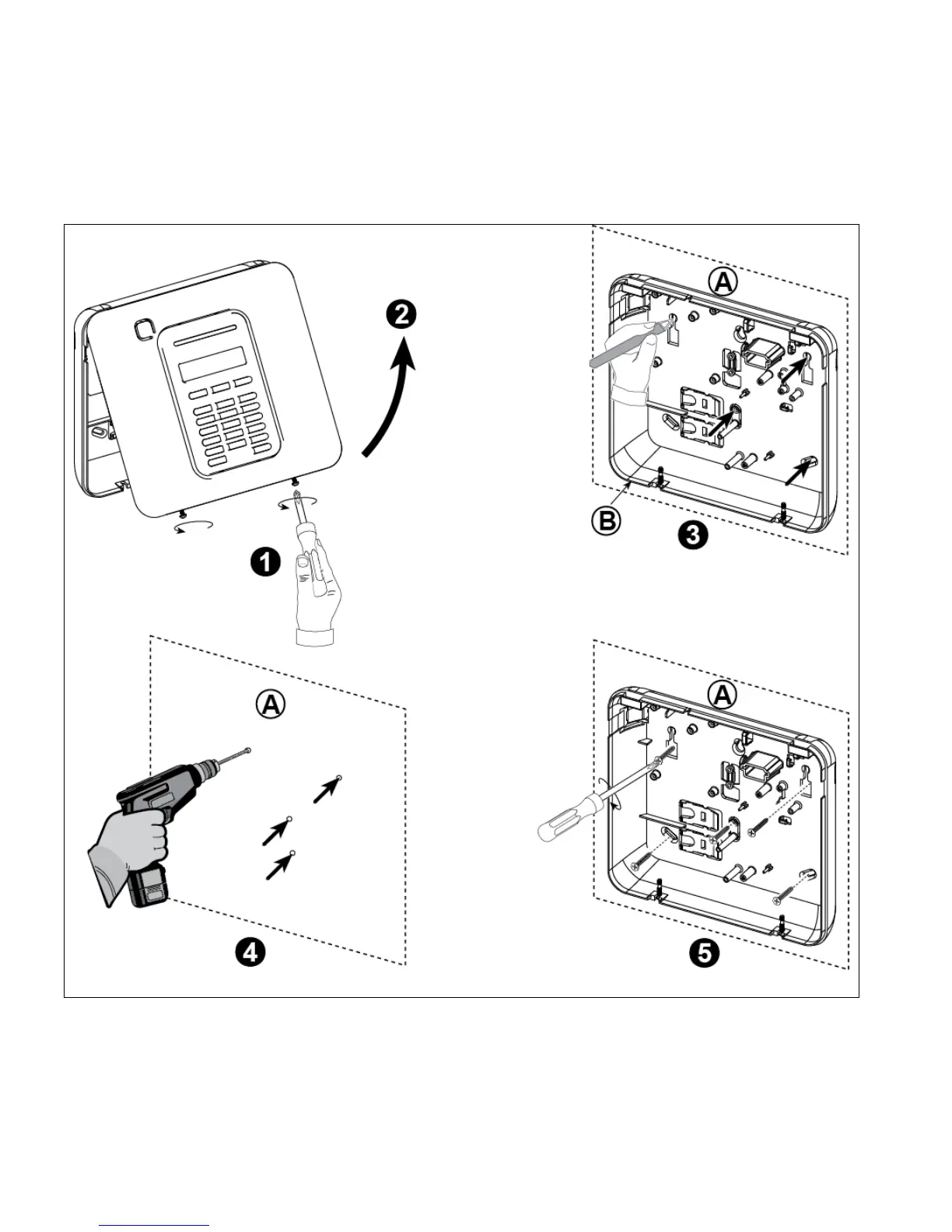

Figure 3.1 – Back Unit Mounting
To Mount the Unit:
1. Release the screws A. Mounting surface
2. Remove the front cover B. Back unit
3. Mark 4 drilling points on the mounting surface
4. Drill 4 holes and insert wall anchors
5. Fasten the back unit with 4 screws
WARNING! When plugging SIREN & ZONE terminals back into place, be sure to align them carefully with the pins on the
PCB. Misaligned or reverse insertion of terminals may cause internal damage to the PowerMaster-10 G2!

Visonic PowerMaster-30 G2 Specifications

General

Type	Wireless Security System
Frequency	868 MHz
Event Log	1000 events
Wireless Protocol	PowerG
Zones	Up to 64 zones
Users	Up to 48 users
Communication	GSM/GPRS/IP
Partitions	3 partitions
Keypads	Up to 8 keypads
Siren	Built-in siren and external siren support
Humidity	Up to 93% RH, non-condensing
Operating Temperature	-10°C to 55°C (14°F to 131°F)
