INTRODUCTION
4 DE5468U
1. Introduction
Overview
The PowerMax Pro is a wireless alarm control
system that provides protection against burglary, fire
and tampering. In addition, it can be used to control
lights and electrical appliances within your household
and/or to monitor the activity of disabled or elderly
people left at home. Status information is presented
visually and verbally, and in most cases a recorded
voice prompts you to take correct action.
The PowerMax Pro includes an optional partition
feature. Partitioning allows you to have up to four
independently controllable areas with different user
codes assigned to each partition. A partition can be
armed or disarmed regardless of the status of the
other partitions within the system.
The PowerMax Pro is governed by a control panel
(Figure 1) designed to collect data from various
sensors that are strategically located within and
along the perimeter of the protected site (Figure 2).
In the disarmed state, the system provides you
with visual and verbal status information, and
initiates an alarm if smoke is detected or upon
disturbance in a 24-hour zone (a zone which is
active 24-hours a day).
In the armed state, the system will initiate an alarm
upon detection of disturbance in any one of the
armed zones.
CONTROL
KEYS
KEYPAD
COVER
(CLOSED)
DISPLAY
MICROPHONE

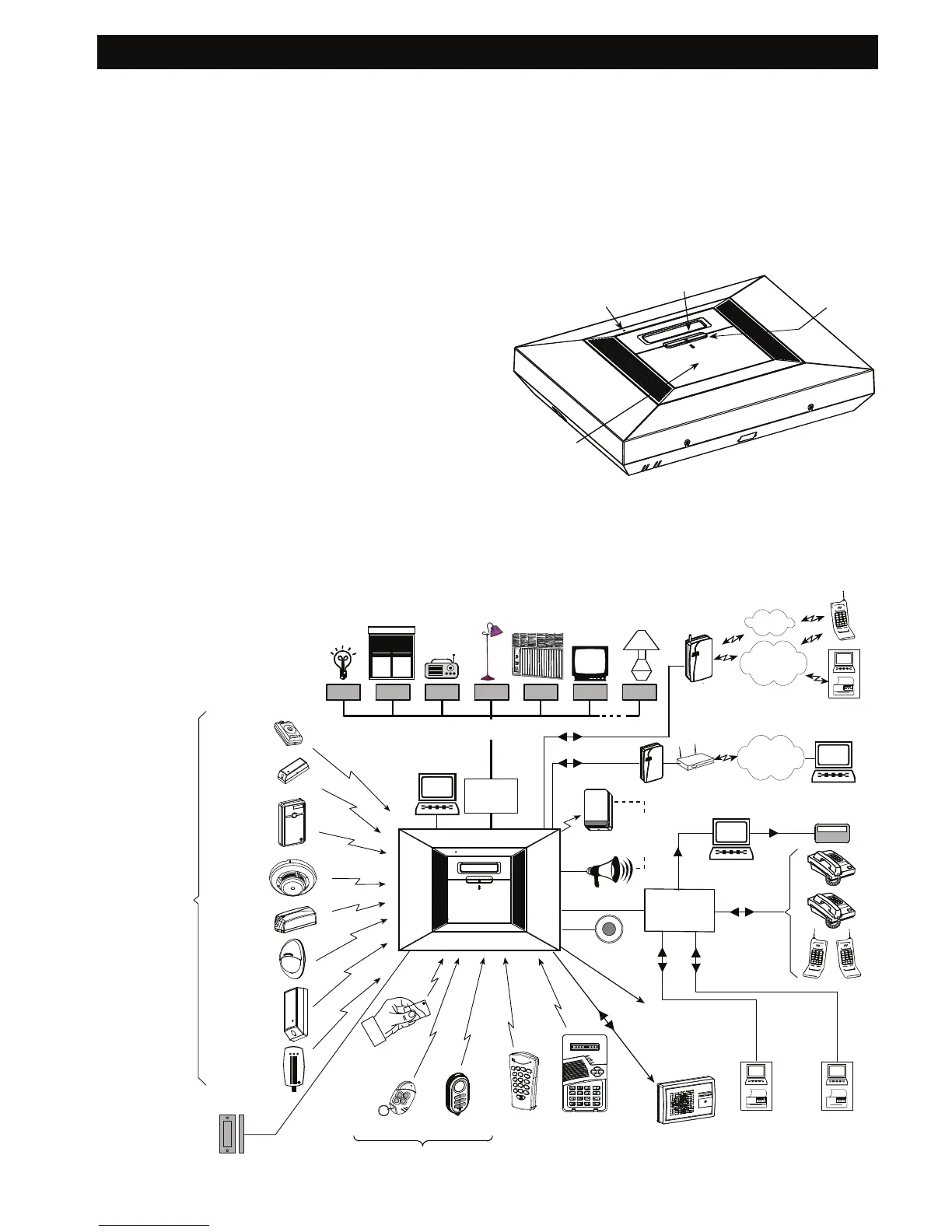

Figure 1. Control Panel with Cover Closed
You will need a 4-digit security code to master the
system (code 0000 is disallowed), and you can
authorize 7 other persons to use the system by
providing them with their own security codes.
15 ELECTRICAL APPLIANCES (CONTROLLED VIA EXISTING ELECTRICAL CABLING).
ON/OFF BY VARIOUS FACTORS AS PROGRAMMED BY THE INSTALLER
X-10 #1 X-10 #2 X-10 #3 X-10 #4 X-10 #5 X-10 #6 X-10 #15
KEYFOB
TRANSMITTER
UP TO 8
WIRELESS
REMOTE
COMMANDERS
EXISTING ELECTRICAL
CABLING IN WALLS
EMERGENCY
PENDANT
TRANSMITTERS
POWERLINE
INTERFACE
MODULE
WIRELESS
DETECTORS
(UP TO 28 UNITS)
INSTALLED IN
THE PROTECTED
PREMISES
SMOKE
DETECTOR
UNIVERSAL
PERIMETER
PROTECTION
DETECTOR
DOOR OR
WINDOW
OPEN/CLOSE
DETECTOR
MOTION
DETECTOR
FLOOD
DETECTOR
LOCAL
COMPUTER
(OPTION)
PGM OUTPUT FOR
CONTROLLING DEVICES
BY VARIOUS FACTORS
AS PROGRAMMED
BY THE INSTALLER
GSM
TELEPHONE
EXCHANGE
UP TO 2
HARD WIRED
DETECTORS
CO / GAS
DETECTOR
EXTERNAL /
INTERNAL
GSM UNIT
TEL
TV
Radio
Shutter
Air conditioner
INTERNAL
SIREN OR
STROBE
CENTRAL MONITORING
STATIONS
PUBLIC
TELEPHONE
EXCHANGE
4 PRIVATE
TELE-
PHONES
TEL. LINE
USER
COMPUTER
WIRELESS
SIREN OR
EXTERNAL
SIREN
CENTRAL
MONITORING
STATION
UP TO 8
PROXIMITY
TAGS
2-WAY KEYFOB
TRANSMITTER
A COMBINATION OF UP TO 8
INTERNET
PAGER COMPANY
COMPUTER
PAGER
ROUTER
POWERLINK
TEMPERATURE
DETECTOR
WIRED
REMOTE
SPEECH BOX
AWAY
UP TO 2
KEYPAD
DEVICES
SMS
Figure 2. Typical System Configuration
