DE5467U 19
SUNDAY
NEXT NEXT NEXT
WEDNESDAY
NEXT NEXT NEXT NEXT
FRIDAY DAILY
SET TIME&FORMAT
NEXT
SET DATE&FORMAT
device number (2-digit)
SCHEDULER
OK
OK
NEXT
DEVICE No.
OK
OK
OK
OK
NEXT
OPERATION No. 1
OK
NEXT
OPERATION No. 2
OK
NEXT
OPERATION No. 3
OK
NEXT
OPERATION No. 4
OK
start - HH:MM
stop - HH:MM
BACK
or
NEXT
TIME - - / - -
(enter start/stop time)
OK
MONDAY
OK
TUESDAY
OK
THURSDAY
OK
NEXT
SATURDAY
OK
Moving forward
Moving backward
Moving one level
up in the menu
Return to
“<OK> TO EXIT”
NEXT
To move within most of
the menus, the following
keys can be used:
SHOW / OK
Show / confirm
data
Black box is displayed
regarding 2-way X-10 unit
If you enter “00” and
press OK, PGM is displayed
Notes
1. Select time in 10 minute interval only.
2. To erase a displayed time, press OFF.
(See figure 8)
OK
OK

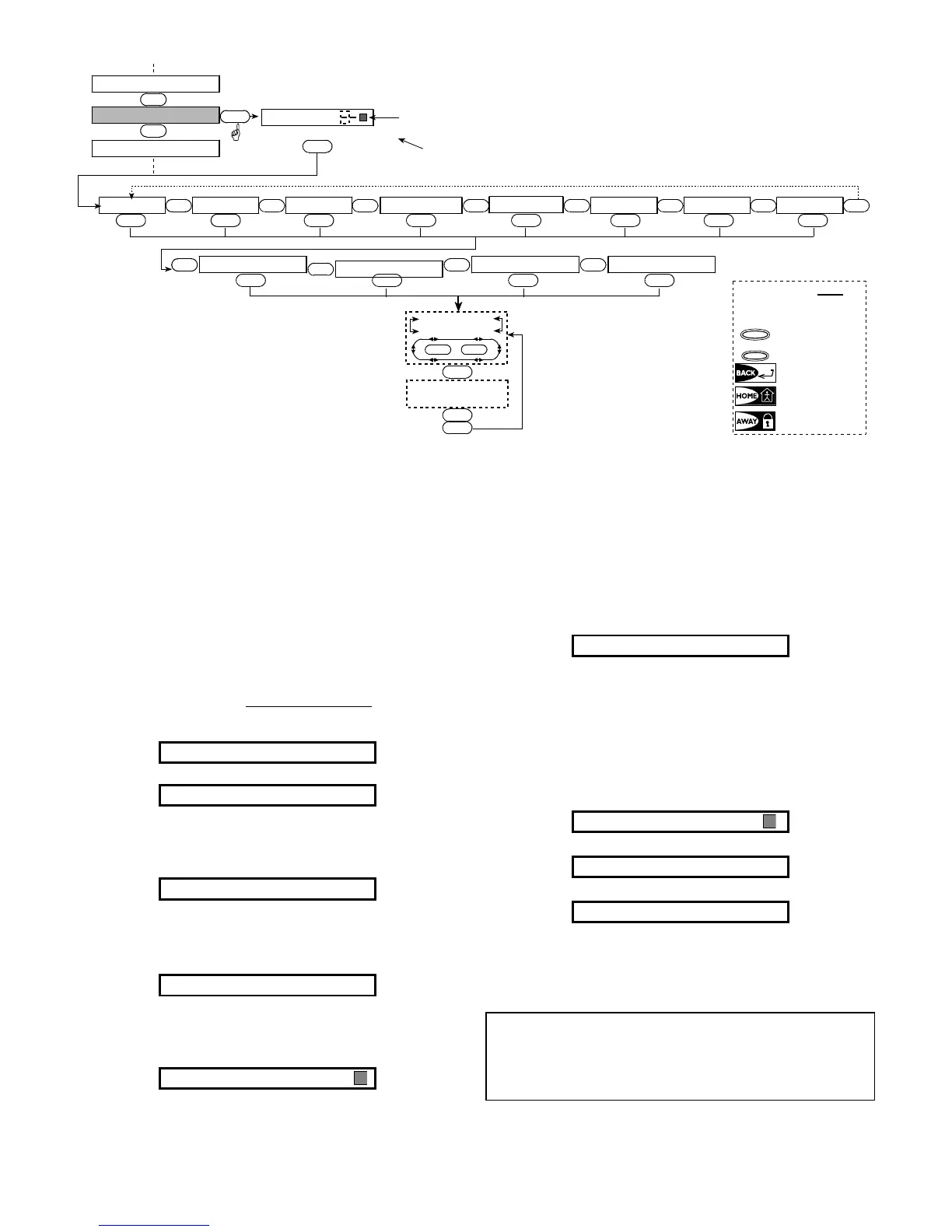

Figure 8 DETAIL "A" - Scheduler Function
7.8 Enrolling Keyfob Transmitters
Keyfob transmitters are multi-button wireless units of the
CodeSecure™ type. Eight system users carry keyfob
transmitters to exercise better, quicker and safer system
functions control. Your control panel must recognize the
unique identification code (ID) of each such keyfob to
respond to commands transmitted by them.
Note: For UL installations where the model MCT-234
keyfob is used, the voice/speaker on the PowerMax+
shall be enabled.
Before anything else, gather up all keyfob units you intend
to enroll, and make sure they all have batteries installed.
Keyfob transmitter enrolling involves the following steps:
A. Having entered your Master User Code successfully
(see Para. 7.2), Click the NEXT button (repeatedly, if
necessary) until the display will read:
ENROLL KEYFOB
B. Click <OK>. The display will read:
Keyfob No: _
C. Suppose that the Keyfob you are about to enroll is to be
designated as Keyfob No. 5. Assuming that memory
location No. 5 is free - no keyfob has yet been enrolled
to it - click the <
5> key. The display will change to:
Keyfob No: 5
The clear space at the far right tells you that the
memory location is free.
D. Click <OK>. The display will prompt you to initiate a
transmission from the chosen keyfob:
TRANSMIT NOW
E. Initiate a transmission from the chosen keyfob by
pressing any one of its pushbuttons. In response, the
“Happy Tune” (- - - –––) will sound and the display will
change to:
Keyfob No: 5
A dark box will appear at the far right, indicating that the
chosen Keyfob has been enrolled as Keyfob No. 5.
Note: If the same keyfob is already enrolled elsewhere,
the “Happy Tune” will sound twice in succession.
F.
From this point on, you may continue in several
different directions:
• If you wish to enroll another keyfob, select the
desired number by:
- Clicking
<NEXT> to go up (678.....)
- Clicking
<BACK> to go down (432.....)
- Clicking <
HOME> <keyfob #>.
• To return to the main menu, click <AWAY>. This will
bring back the display:
<OK> TO EXIT
You may now review and select any other mode on the
User menu (by clicking <
NEXT> or <BACK>).
7.9 Deleting Keyfob
Occupied keyfob memory locations must be cleared
(enrolled ID must be deleted) before enrolling a new ID. To
delete an existing ID, proceed as follows:
A. Select the desired memory location, as described in the
previous par. 7.8, steps A-C. If, for example, you
selected
keyfob No. 5, the display will read:
Keyfob No. 5
B. Click <OK>. The display will change to:
<OFF> to delete
C. Click <OFF>. The display will change to:
Keyfob No. 5
Note that the dark box at the far right has disappeared. It is
now possible to enroll a new ID. It is also possible to leave
the cleared zone or memory location free and simply exit to
the main menu.
7.10 Setting the Voice Options
Remember: Voice prompts are heard over the built-in
loudspeaker subject to two conditions:
- The voice option is enabled as shown below
- The loudspeaker is enabled by pressing the “7” key (see
Para. 3.3)
Here you may select one of two options:
• Enable prompts: Voice announcements
• Disable prompts: No voice announcements
To Next Page
