VIVAX ENG
16

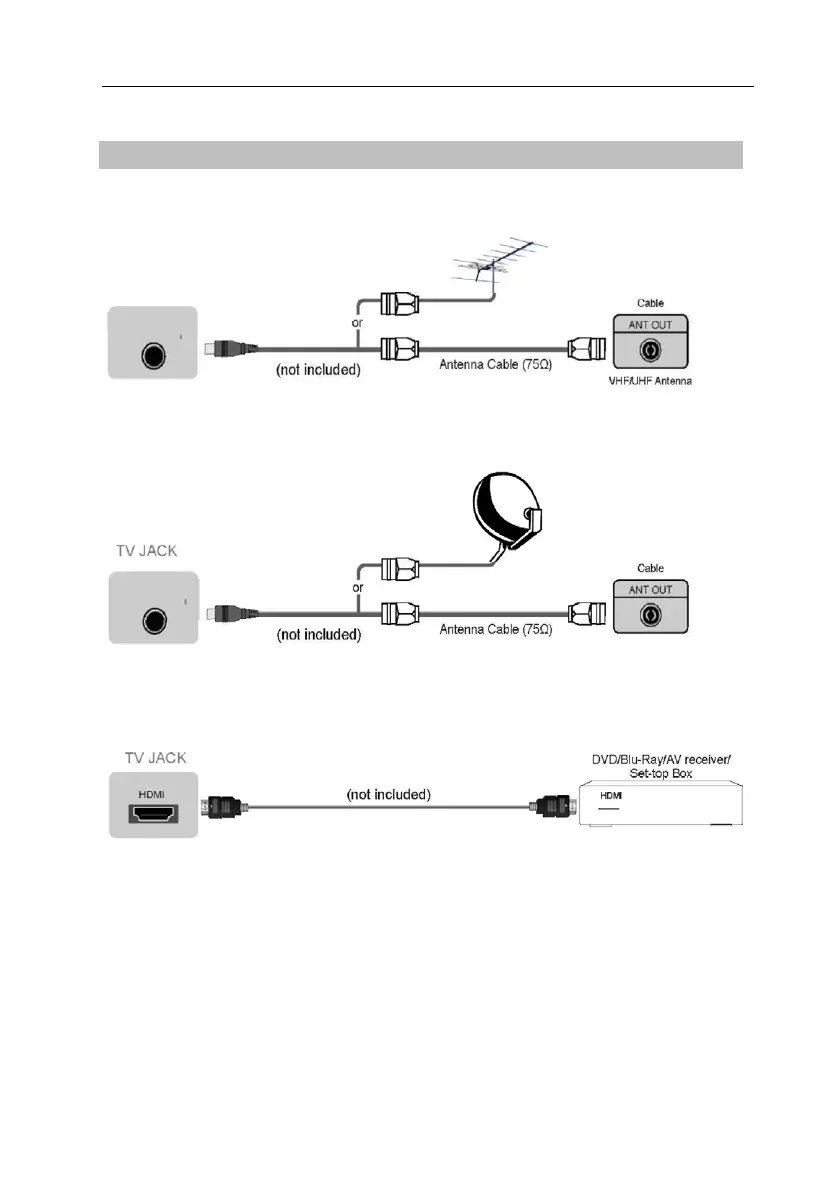

► CONNECTIONS
► RF IN (T2): Connect (DVB-T2) an outdoor VHF/UHF antenna or cable
► RF IN (S2): Connect (DVB-S2) an outdoor Satellite dish or Sat. Cable
conection.
► HDMI1, HDMI2, HDMI3 Digital connection
Connect an HDMI cable from an external A/V equipment.
Some devices such as DVD player require HDMI signal to be set to output in the
device's settings.
Please consult your device user manual for instructions. Please note that the
HDMI connector provides both video and audio signals, it's not necessary to
connect an audio cable.
• Press [SOURCE] button, when the list of Input Source appears, press [▲/▼]
to select the source [HDMI], then press [ENTER] to connect.
Note: HDMI1 supports the ARC (Audio Return Channel) function. With this function you do
not have to connect RCA audio cables to the audio system.
RF IN
T2
RF IN (S2)
SAT Antenna
SAT cable socket
