DLP Projector—User’s Manual

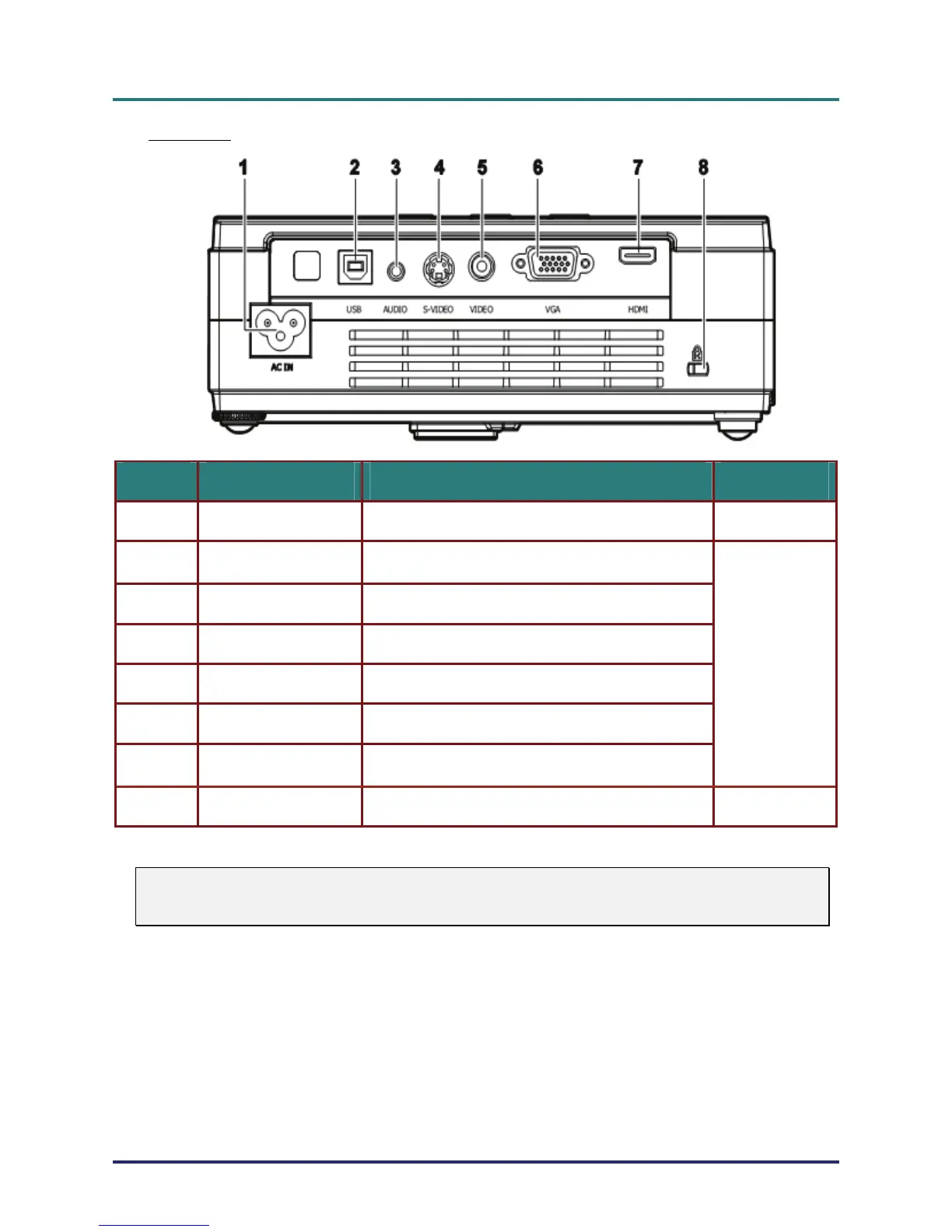

Rear view
ITEM LABEL DESCRIPTION SEE PAGE:
11
1.
AC IN Connect the POWER CABLE
Connect the USB CABLE from a computer (Service
Only)
2.
USB (Service Only)
3.
AUDIO Connect the AUDIO CABLE from the input device
4.
S-VIDEO Connect the S-VIDEO CABLE from a video device
– 4 –
5.
VIDEO Connect the VIDEO CABLE from a video device
10
6.
VGA Connect the RGB cable (supplied) from a computer
Connect the HDMI
TM
digital video CABLE from a video
device
7.
HDMI
TM
41
8.
Security Lock Secure to permanent object with a Kensington® Lock
Note:
If your video equipment has both S-VIDEO and RCA jacks (composite video) connect to the
S-VIDEO connector. S-VIDEO provides a better quality signal.
