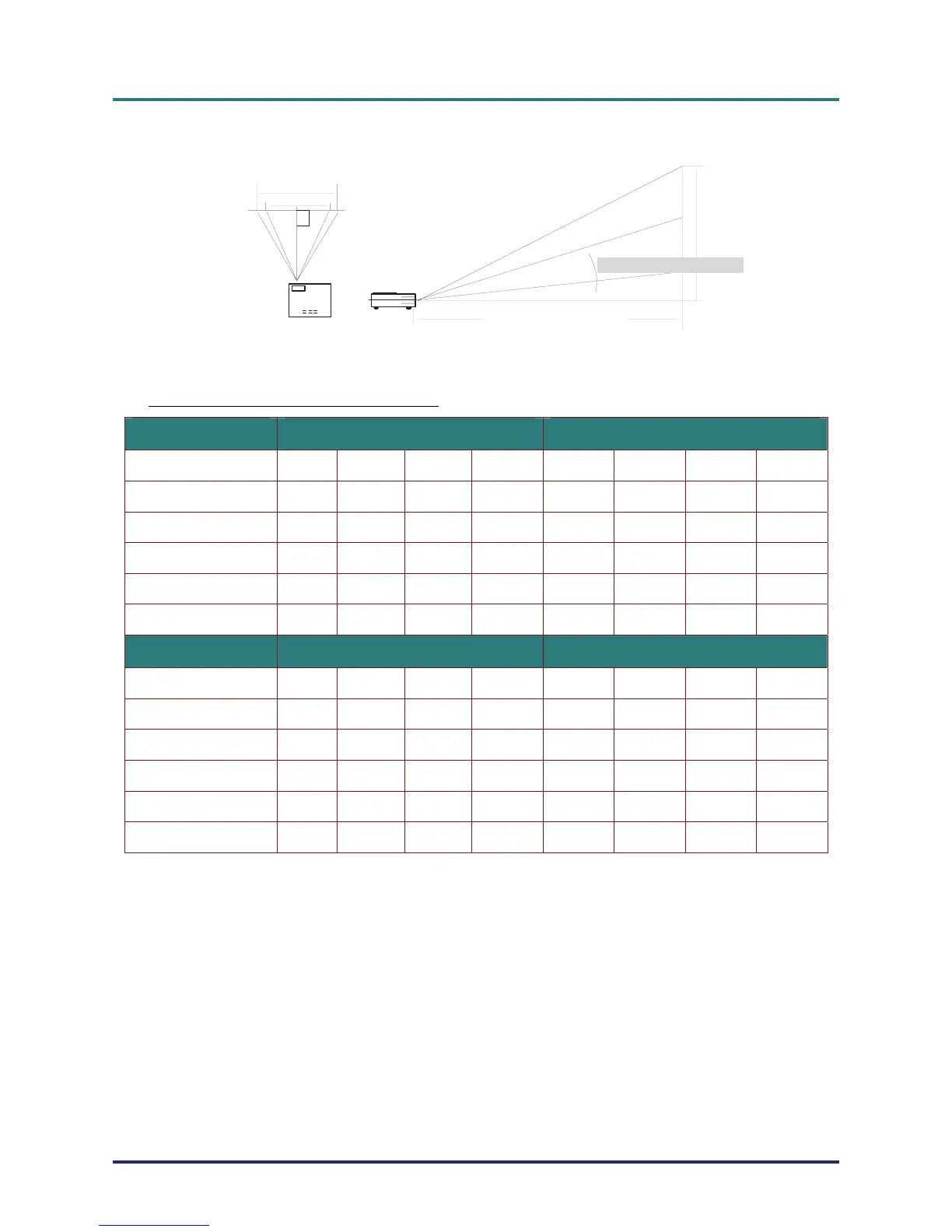

Projection Distance V.S. Projection Size
A
B
Projection Distance and Size Table
D330MX TELE WIDE
Distance (m) 1.56 4.47 7.15 9.83 1.54 3.86 7.72 11.58
Diagonal (inches) 35 100 160 220 40 100 200 300
Keystone (degree) 12.29 12.29 12.29 12.29 14.16 14.16 14.16 14.16
Image Height (mm) 533.4 1524.0 2438.4 3352.8 609.6 1524.0 3048.0 4572.0
Image Width (mm) 711.2 2032.0 3251.2 4470.4 812.8 2032.0 4064.0 6069.0
A (mm) 74 212 339 466 85 212 424 636
D330WX TELE WIDE
Distance (m)
1.52 4.55 7.58 9.86 1.65 3.30 6.59 9.89
Diagonal (inches)
40 120 200 260 50 100 200 300
Keystone (degree)
12.29 12.29 12.29 12.29 14.07 14.07 14.07 14.07
Image Height (mm)
538.5 1615.4 2692.4 3500.1 673.1 1346.2 2692.4 4038.6
Image Width (mm)
861.6 2584.7 4307.8 5600.2 1077.0 2153.9 4307.8 6461.7
A (mm)
61 183 306 397 76 153 306 458
Screen width
Image Hight
A
Keystone Correction Angel
Projection Distance
