STEP 10
STEP 11

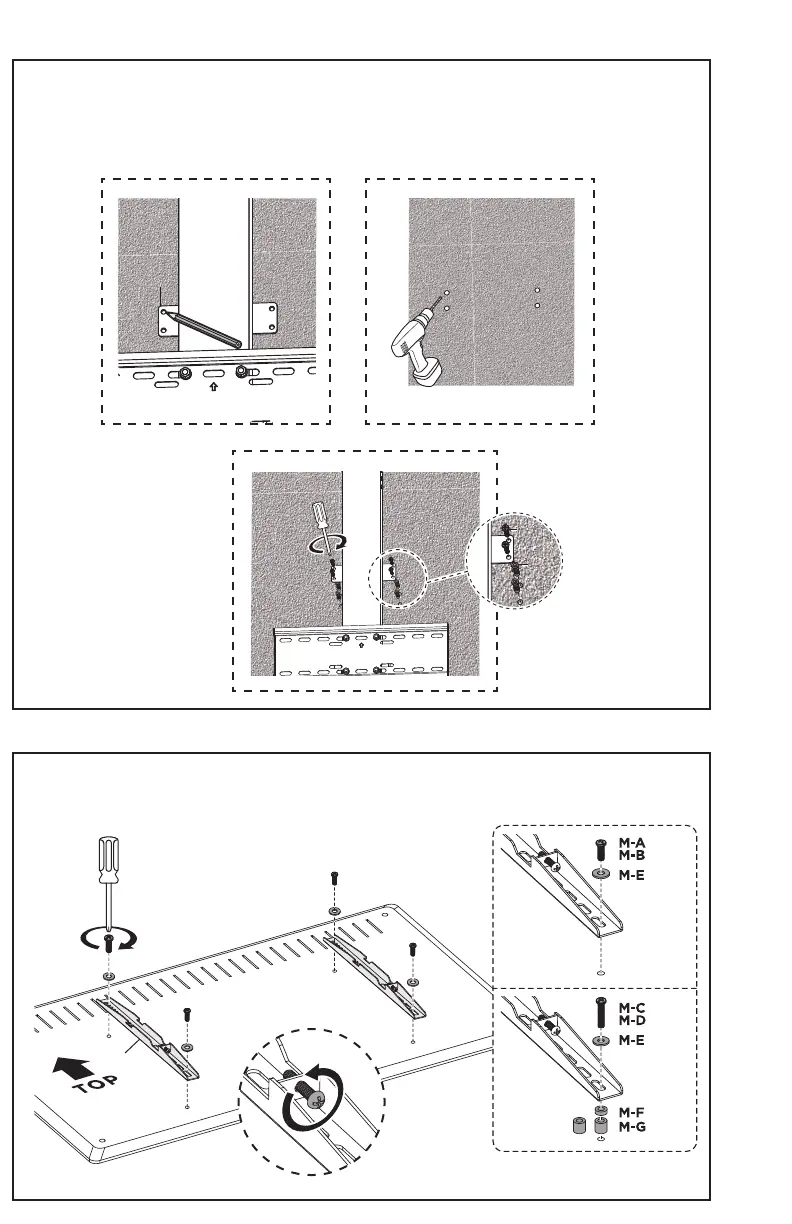

Concrete/Brick Installation:
Mark Wall Mounting Plate (A1) hole locations using a pencil or marker. Remove Li Column (A) from
Ceiling Plate (I) or hold away from the wall. Drill 1.8”/45mm deep holes using a 5/16”/8mm drill bit.
Insert Concrete Anchors (W-C) and install Li Column (A) using ST5.5x38mm Screws (W-B) and a
Phillips screwdriver.
W-BW-B
W-CW-C
A1A1
Attach VESA Brackets (C) to the back of the TV using Screws (M-A thru M-D), M8 Washers (M-E), and
Spacers (M-F, M-G). Partially loosen the safety screw using a Phillips screwdriver.
