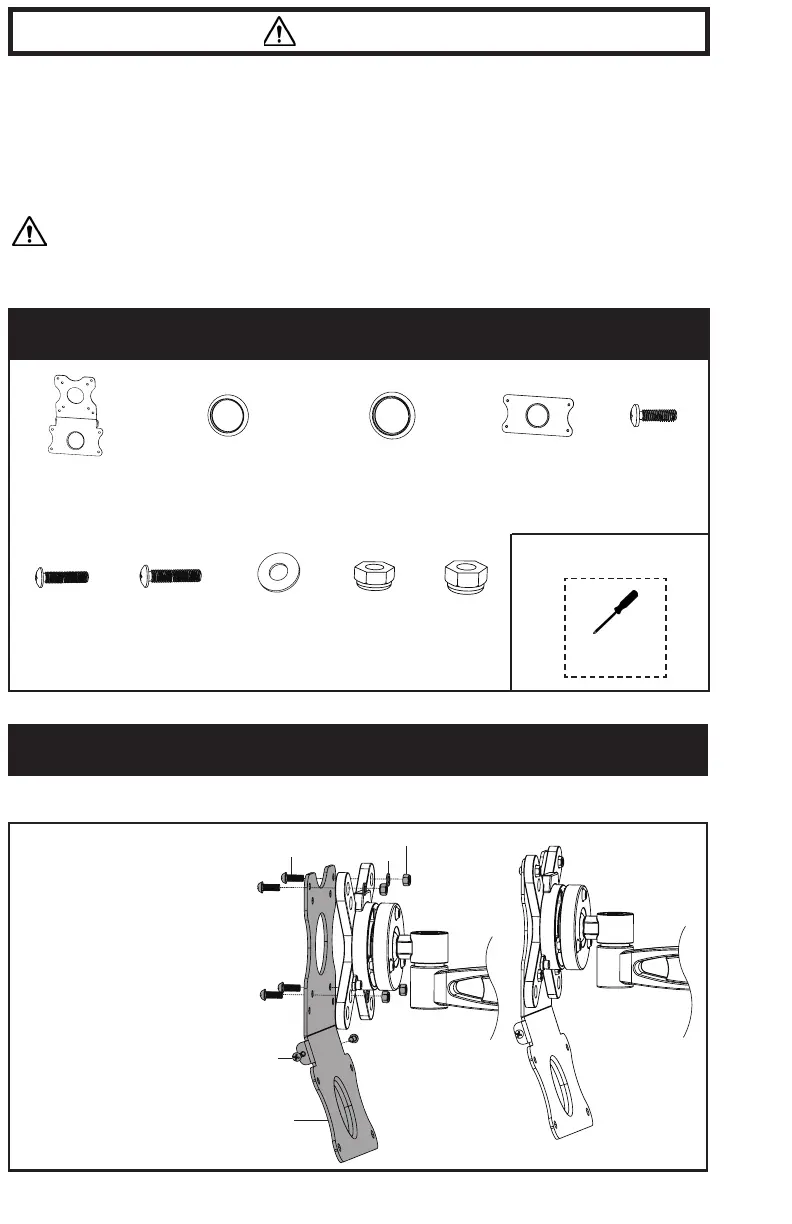

PACKAGE CONTENTS
TOOLS NEEDED
WARNING!
Phillips
Screwdriver
A (x1)
Adapter Plate
M-A (x2)
M4x12
M-C (x8)
M5x16
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
M-D (x4)
D5 Washer
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
ASSEMBLY STEPS
STEP 1
Insert M4x12 nylon screws (M-A)
into sides of adapter plate (A).
Attach adapter plate to VESA
mount using x4 screws (M-B
or M-C), D5 washers (M-D) and
nyloc nuts (M-E or M-F).
Please note that the screws
must be force-tightened through
the nylon inserts in the nyloc
type nuts.
M-E (x4)
M4 Nut
B (x1)
70mm Adapter Ring
C (x1)
72mm Adapter Ring
D (x1)
Clamp Plate
M- A
A
M-B/M- C
M- D
M-E/M- F
M-B (x4)
M4x14
M-F (x4)
M5 Nut
To Next Page
