Physical Description (FD8181)

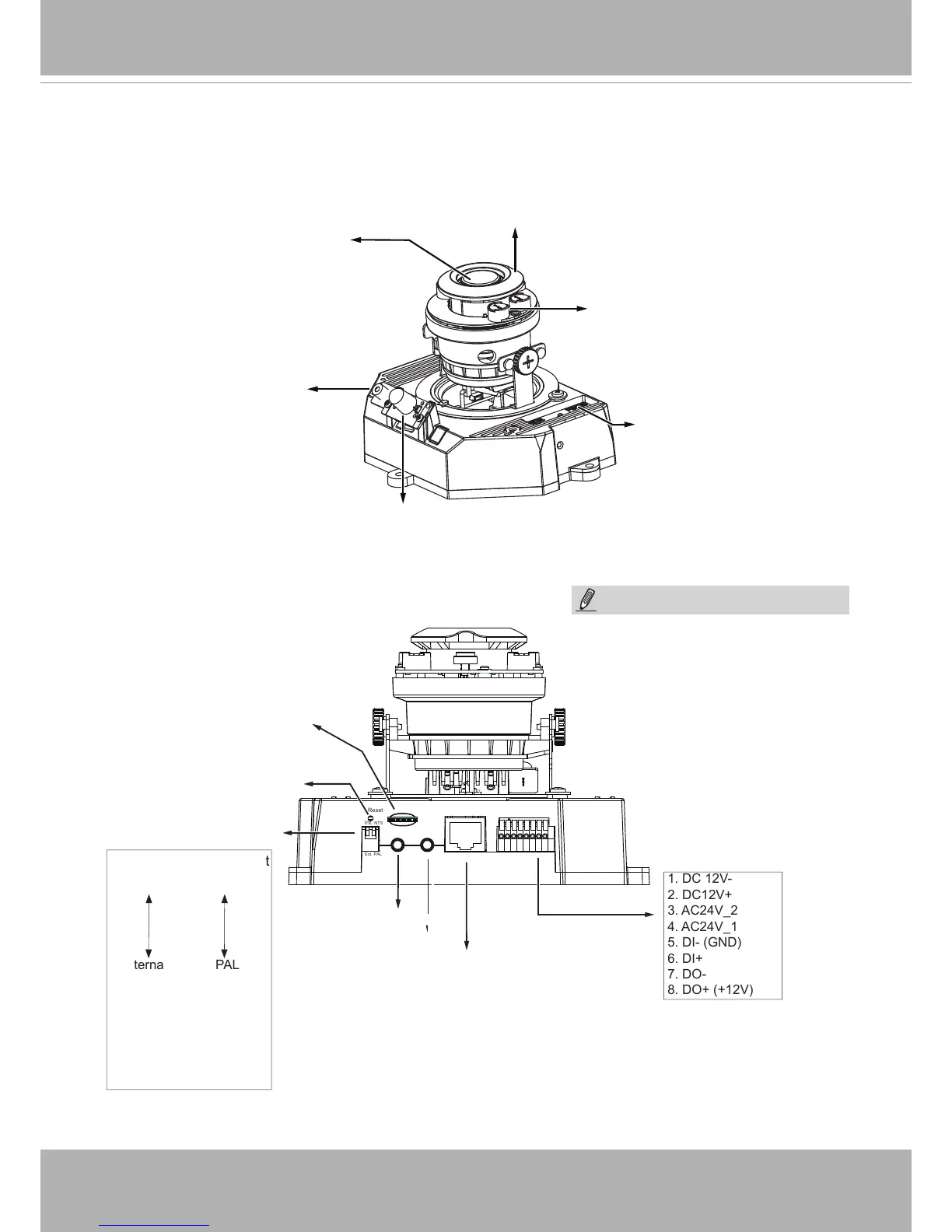

Inner View (FD8181)
Light Sensor
Built-in Microphone
PIR Sensor
IR LEDs (4 units, effective up to
30m)
Focus & Zoom Buttons
Vari-focal Lens
12 3 74 5 86
Ethernet
Micro SD Card
Audio InAV Out
Reset
Int.
NTSC
PAL
Ext.
1� DC 12V-
2� DC12V+
3� AC24V_2
4� AC24V_1
5� DI- (GND)
6� DI+
7� DO-
8� DO+ (+12V)
Microphone In (pink)
Audio/Video Out
(green)
Jumpers
Microphone
Video Output
internal
external
NTSC 60Hz
PAL
50Hz
1 2
Reset Button
The max� output load from pins #7 and 8 is
50mA�
NOTE:
MicroSD/SDHC/SDXC Card Slot
General I/O Terminal Block
Ethernet 10/100 RJ45
Socket
