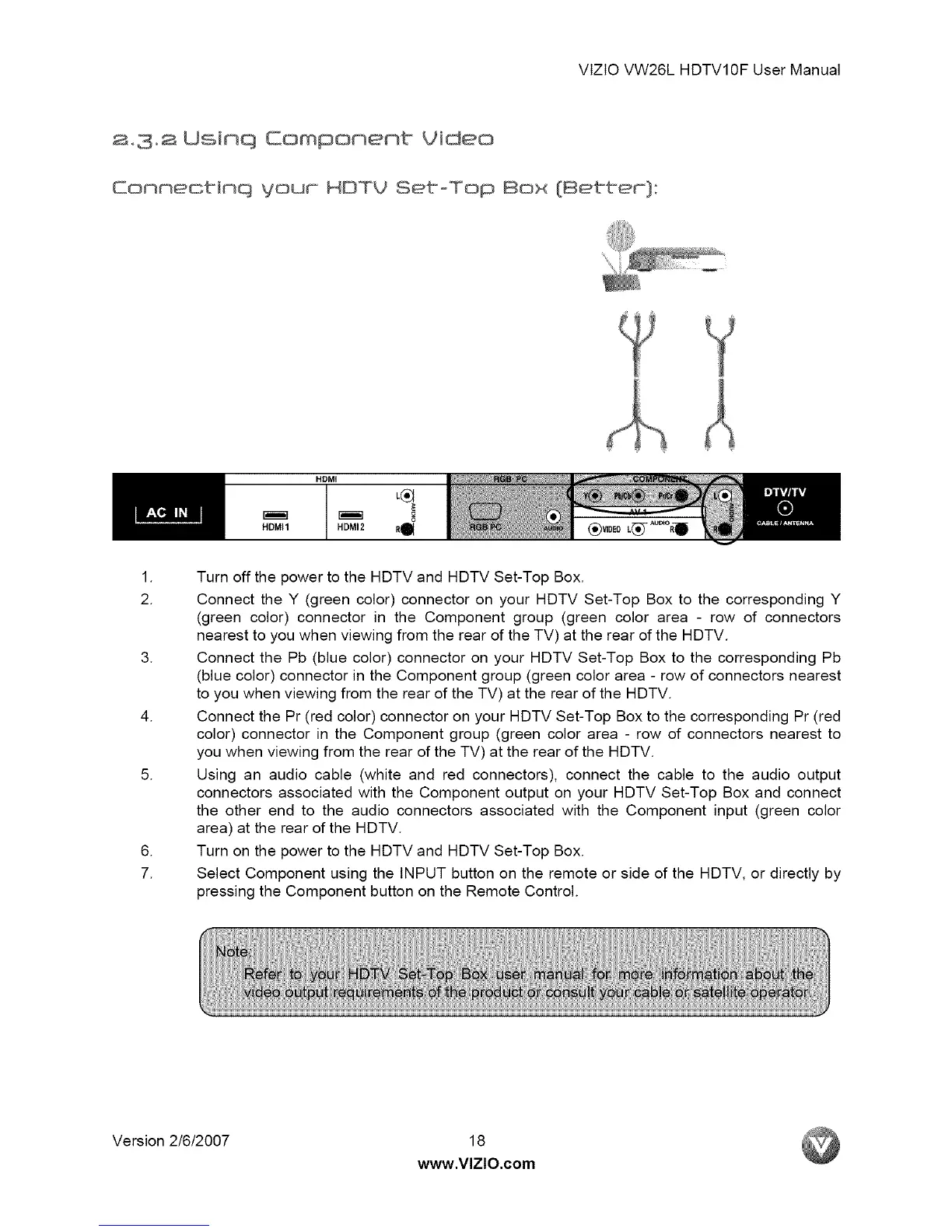

VlZlOVW26LHDTV10FUserManual
2.3,2 Usinq Component t/idea
Connectinq vour HDTV Set-Top Box {Better]:
I.
2.
.
.
.
.
7.
HDMI1
HDMI
HDMI2 R_
Turn off the power to the HDTV and HDTV Set-Top Box.
Connect the Y (green color) connector on your HDTV Set-Top Box to the corresponding Y
(green color) connector in the Component group (green color area - row of connectors
nearest to you when viewing from the rear of the TV) at the rear of the HDTV.
Connect the Pb (blue color) connector on your HDTV Set-Top Box to the corresponding Pb
(blue color) connector in the Component group (green color area - row of connectors nearest
to you when viewing from the rear of the TV) at the rear of the HDTV.
Connect the Pr (red color) connector on your HDTV Set-Top Box to the corresponding Pr (red
color) connector in the Component group (green color area - row of connectors nearest to
you when viewing from the rear of the TV) at the rear of the HDTV.
Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the Component output on your HDTV Set-Top Box and connect
the other end to the audio connectors associated with the Component input (green color
area) at the rear of the HDTV.
Turn on the power to the HDTV and HDTV Set-Top Box.
Select Component using the INPUT button on the remote or side of the HDTV, or directly by
pressing the Component button on the Remote Control.
Version 2/6/2007 18
www.VIZIO.com
