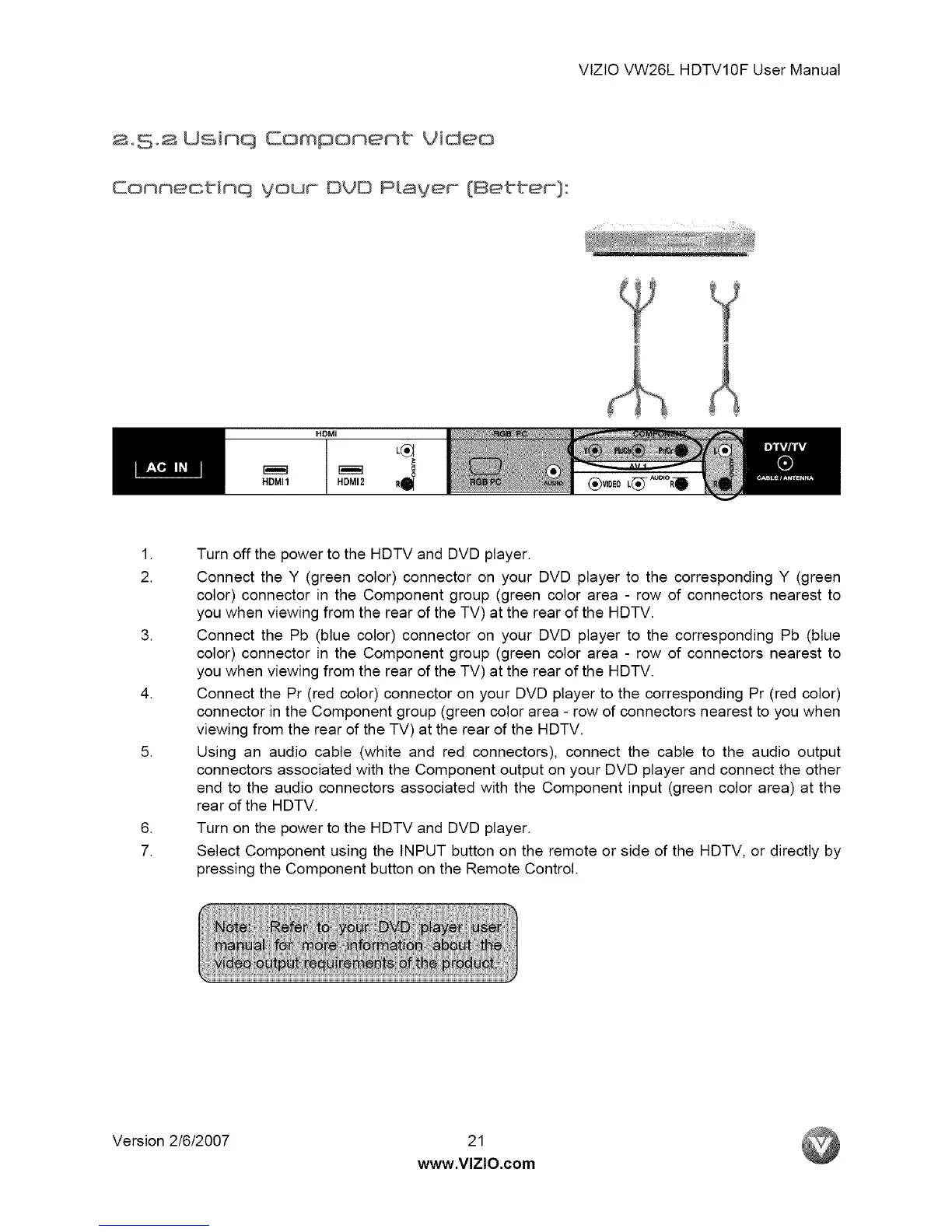

VlZlO VW26L HDTV10F User Manual

2.5_2 Usinq Componenb Video

Connecbinq vour OWO Player {Better}:

HDMI1

HDMI

HDMI2 R_

Turn off the power to the HDTV and DVD player.

Connect the Y (green color) connector on your DVD player to the corresponding Y (green

color) connector in the Component group (green color area - row of connectors nearest to

you when viewing from the rear of the TV) at the rear of the HDTV.

Connect the Pb (blue color) connector on your DVD player to the corresponding Pb (blue

color) connector in the Component group (green color area - row of connectors nearest to

you when viewing from the rear of the TV) at the rear of the HDTV.

Connect the Pr (red color) connector on your DVD player to the corresponding Pr (red color)

connector in the Component group (green color area - row of connectors nearest to you when

viewing from the rear of the TV) at the rear of the HDTV.

Using an audio cable (white and red connectors), connect the cable to the audio output

connectors associated with the Component output on your DVD player and connect the other

end to the audio connectors associated with the Component input (green color area) at the

rear of the HDTV.

Turn on the power to the HDTV and DVD player.

Select Component using the INPUT button on the remote or side of the HDTV, or directly by

pressing the Component button on the Remote Control.

Version 2/6/2007 21
