2.2.4 Using Composite (AV) Video

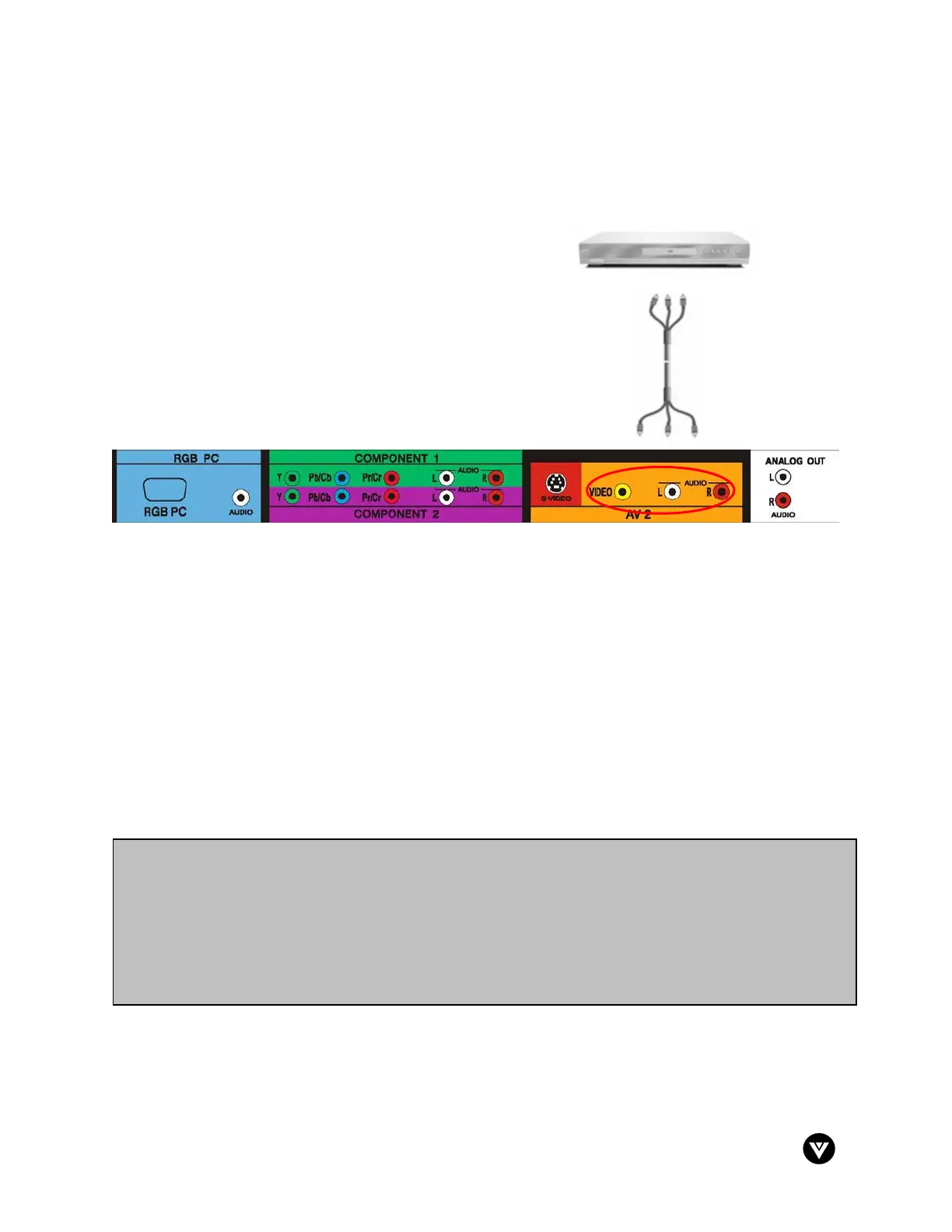

Connecting your DVD Player (Good):
1. Turn off the power to the LCD HDTV and DVD player.
2. Connect the Video (yellow color) connector on your DVD player to the Video (yellow color)
connector in the AV1 group (yellow color area - row of connectors nearest to you when
viewing from the rear of the TV) at the rear of the LCD HDTV.
3. Connect the R (red color) and L (white color) audio connectors on your DVD player to the
corresponding R (red color) and L (white color) audio input connectors in the AV1 group
(yellow color area - row of connectors nearest to you when viewing from the rear of the TV) at
the rear of the LCD HDTV.
4. Turn on the power to the LCD HDTV and DVD Player.
5. Select AV1 using the INPUT button on the remote or side of the LCD HDTV, or directly by
pressing the AV button on the Remote Control.
Note:
a) If you are already using the AV1 input for another component, or you do not want to use the AV1
input for the DVD player, and you are not using the S-Video input for another component, you
can connect the DVD player to the AV2 connections coded by the orange area.
b) Refer to your DVD player user manual for more information about the video output requirements
of the product.

Vizio VX37L Specifications

General

Screen Size	37 inches
Resolution	1366 x 768
Aspect Ratio	16:9
HDMI Ports	2
Brightness	500 cd/m²
Response Time	8 ms
Viewing Angle	178°
Refresh Rate	60 Hz
Speakers	2 x 10W
Inputs	HDMI, Component, Composite, RF, VGA
