2.4 Connecting Your Basic Set-Top Box

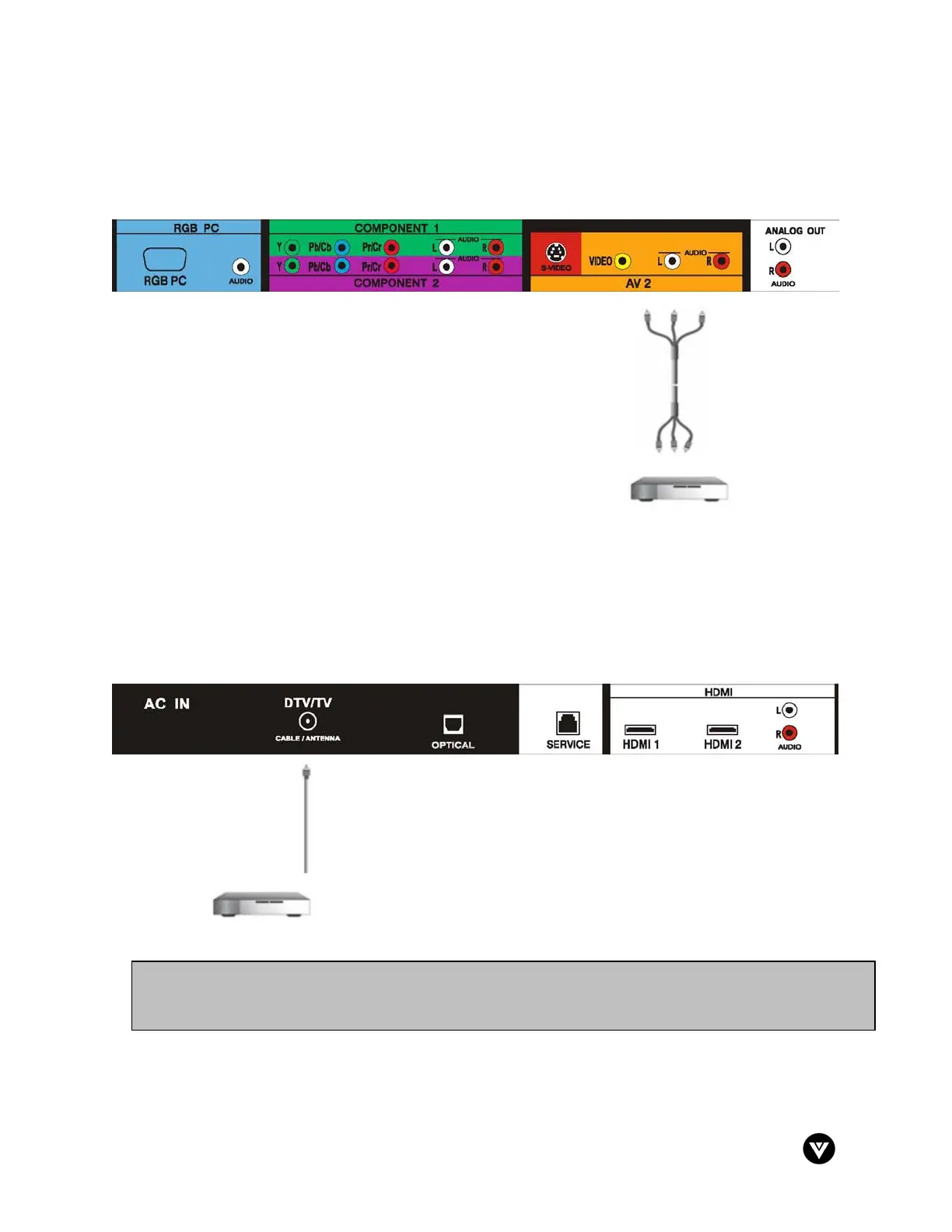

2.4.1 Using Composite Video
1. Turn off the power to the LCD HDTV and Set-Top Box.
2. Using the AV Cable, connect the Video (yellow color)
connector on your Set-Top Box to the corresponding Video
(yellow color) connector in the AV 2 group (orange color area)
at the rear of the LCD HDTV.
3. Using the white and red connectors, connect the cable to the
audio output connectors associated with the Video output on
your Set-Top Box and connect the other end to the audio
connectors associated with the AV 2 input (orange color
area) at the rear of the LCD HDTV.
4. Turn on the power to the LCD HDTV and Set-Top Box.
5. Select AV 2 using the INPUT button on the remote or side of the LCD HDTV, or directly by
pressing the AV button on the Remote Control.
2.4.2 Using Coax (RF)
1. Turn off the power to the LCD HDTV and Set-Top Box.
2. Using a Coax (RF) cable, connect one end to the TV OUT
(RF) on your Set Top Box and the other end to the DTV/TV
input at the rear of the LCD HDTV.
3. Turn on the power to the LCD HDTV and Set-Top Box.
4. Select TV using the INPUT button on the remote or side of
the LCD HDTV, or directly by pressing the TV button (below
the WIDE button) on the Remote Control.
Note: Refer to your Set Top Box user manual for more information about selecting the video or RF
output of the product.
