VIZIO VX37L HDTV User Manual
Version 8/23/2006 29
www.VIZIOCE.com

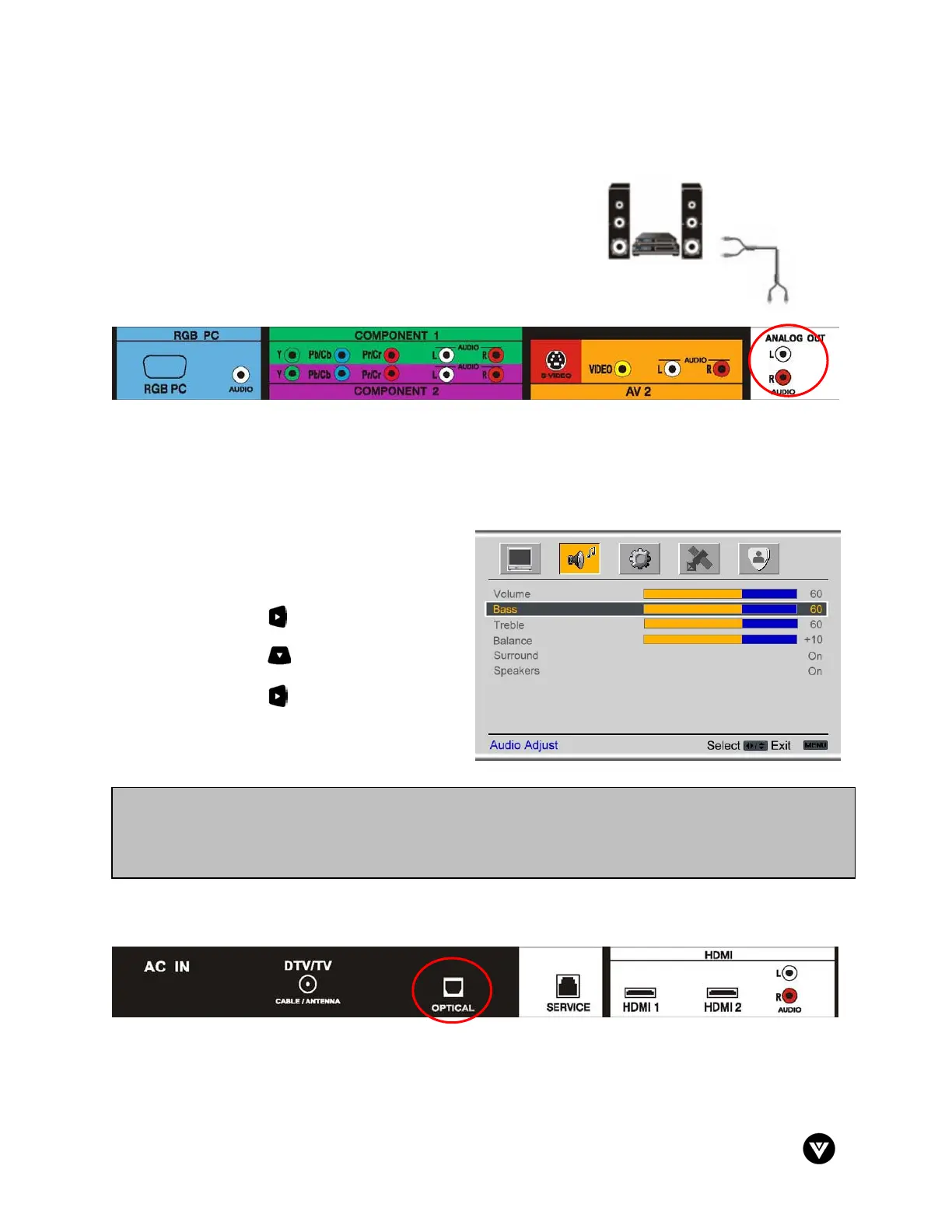

2.7 Connecting an external Receiver/Amp
1. Turn off the power to the LCD HDTV and Receiver/Amp.
2. Using an audio cable (white and red connectors), connect the cable to the audio input
connectors on the Receiver/Amp and connect the other end to the ANALOG OUT (white
area) audio connectors at the rear of the LCD HDTV.
3. Turn on the power to the LCD HDTV
and Receiver/Amp.
4. Then press the MENU button on the
remote control to open the On-Screen
Display (OSD) menu.
5. Press the on the remote control to
select the Audio Adjust menu.
6. Press the on the remote control to
select SPEAKERS.
7. Press the on the remote control to
select OFF so that the sound from the
LCD HDTV will now be routed through
your Receiver/Amp system.
Optical Output of Audio received with HD Programs
If your sound system has a SPDIF (optical) digital audio input you can connect it to the optical DIGITAL
AUDIO OUT (black area) at the rear of the LCD HDTV. This is active when receiving digital audio with
the programs from the DTV/TV CABLE/ANTENNA input.
Note:
a) Refer to your Receiver/Amp user manual to select the corresponding audio input.
b) The audio output is not amplified and cannot be connected directly to external speakers.
