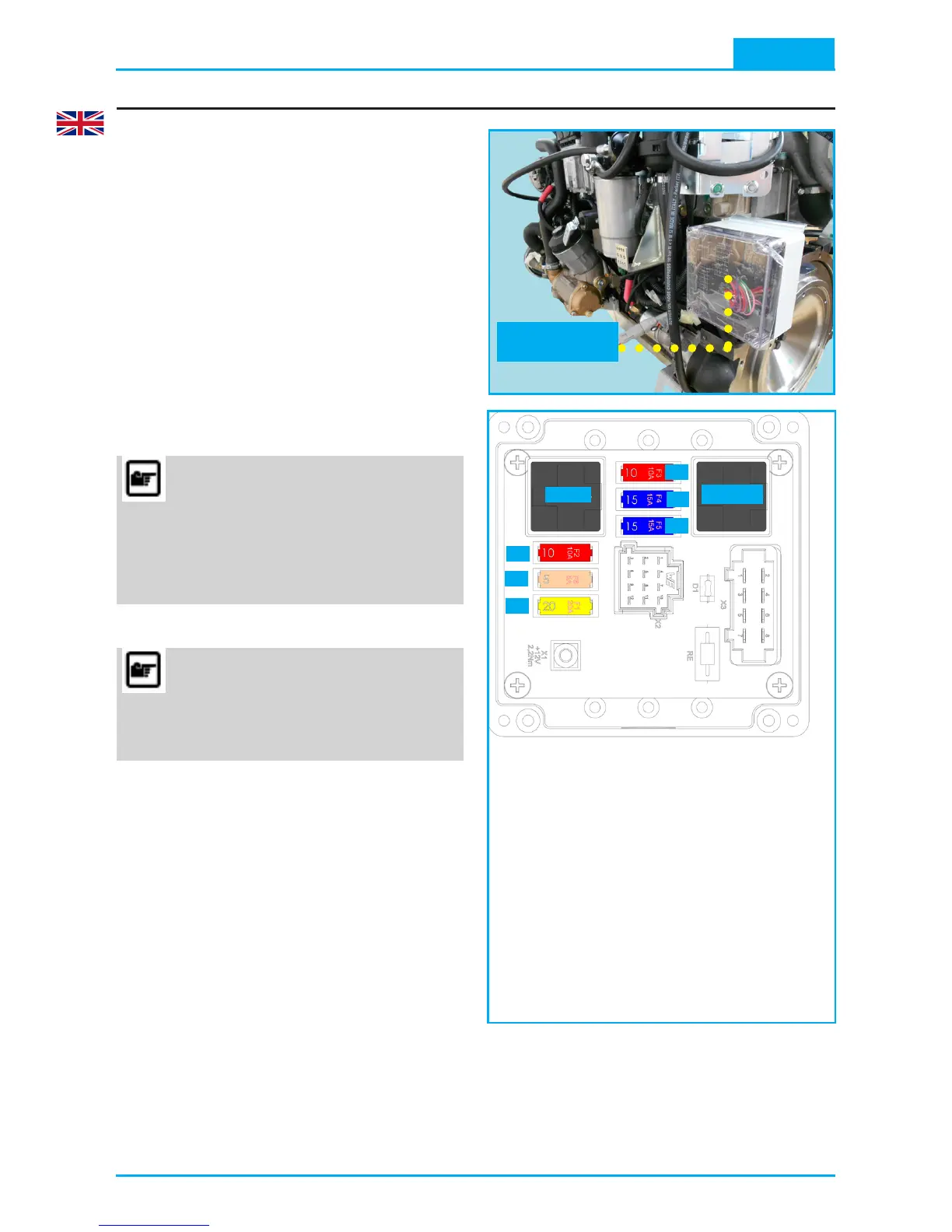

RESET FUSES
The engine is equipped with safety fuses,
which cut out to prevent damage to the
electrical components.
In the event of malfunctions due to trig-
gering of a fuse, the cause (overload or
short circuit current) must be eliminated
before the fuse is reset.
1 - To repair the protective fuse of the
electrical circuit, open the fuse box/re-
lay (A) and replace the fuse which has
intervened.
Important
the new fuse must have the same
electrical characteristics as the fuse
replaced.
Important
If the problem persists, contact a VM
MOTIRI S.P.A. service centre.
Fuse/relay box (A)
K1: Starter motor relay
K2: Main relay
F1: 20A
F2: 10A
F3: 10A
F4: 15A
F5: 15A
F6: 5A
