HANDLING AND LIFTING

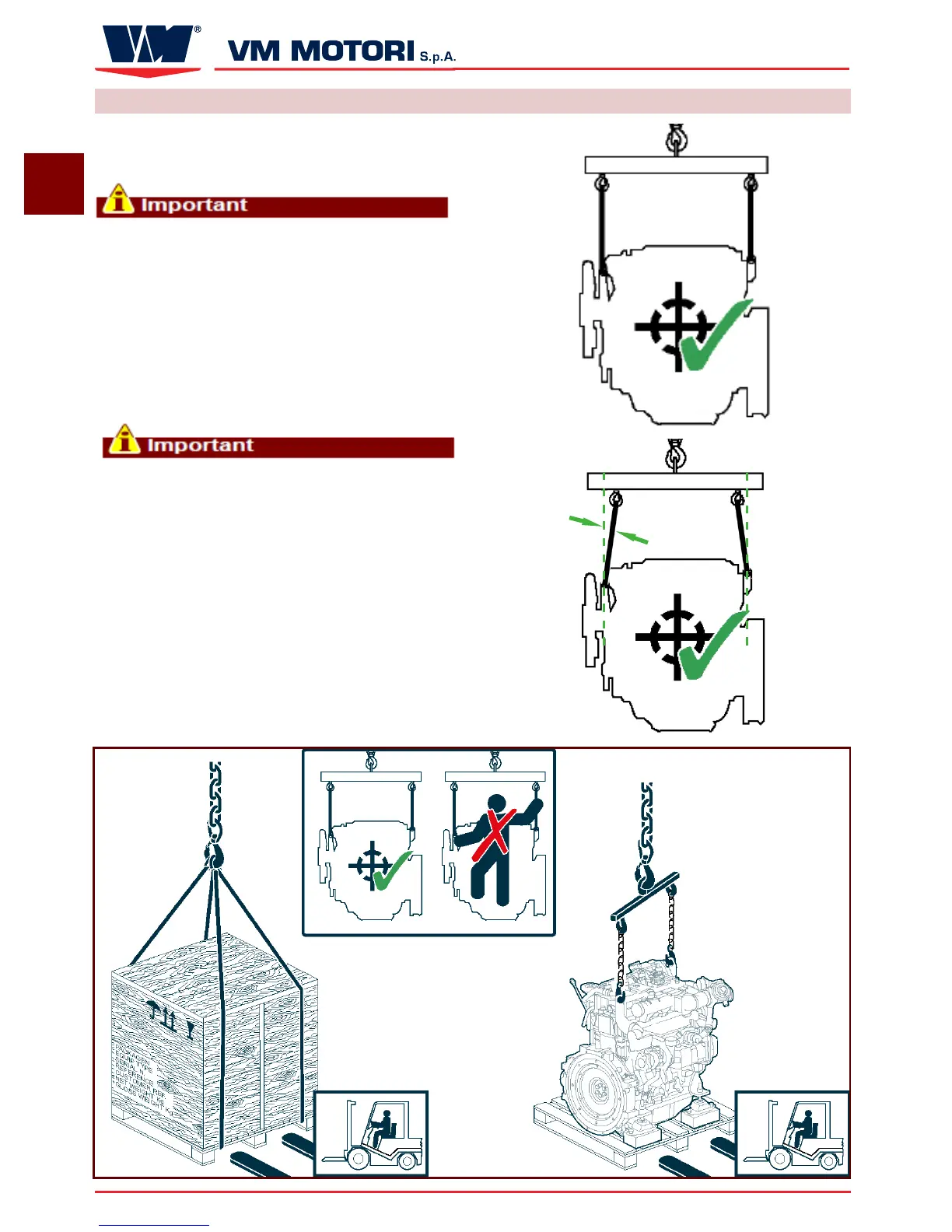

Secure the engine with a lifting device
(lifting beam) of appropriate capacity.
The angle formed by the lifting device
chains must not exceed 5°, as shown
in the gure.
–Hook the lifting device to the xing points
as shown in the gure.
–Before carrying out the lifting, identify the
barycentre position of the load.
The brackets of the xing points have
been designed to lift the engine only
without any additional weight. Do not
lift the engine using a different proce-
dure from the prescribed one; othe-
rwise, the warranty for damages will be
invalidated.
