Display and Setting of Evaluator
Installation and Operating Manual / Version 10 / 3626-011500
en / Protection Class
0: public / 2017-12-15
7.2 Setting - evaluator
•
If required, set the start-up bypass time; setting at the factory: 10 s!

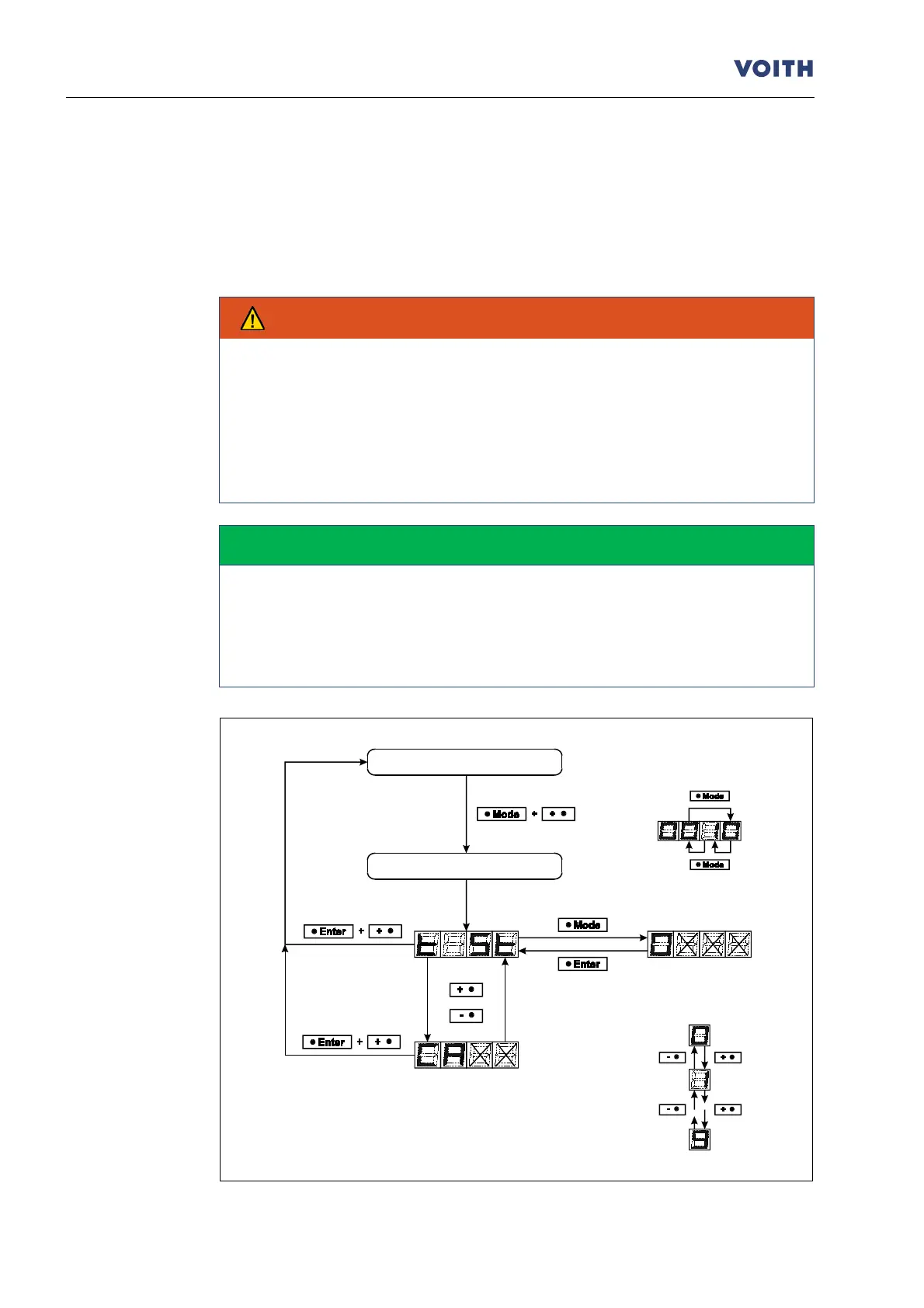

The pushbuttons on the front are used to set the time (see schematic sketch
below).
Risk of personal injuries an
d damage to property
-
up bypass time, an excess temperature of the turbo coupling is
not
recorded!
Only persons who are sufficiently qualified, trained and authorized are
allowed to work on or with the turbo coupling.
Please observe the warnings and safety information.
The start-up bypass time begins with triggering the start-up bypass.
After the start-
up bypass time, the speed of the turbo coupling with switching
element should have clearly exceeded 60 rpm!
Factory setting of the start-up bypass time: 10 s.
Fig. 11
Number of software version
(a change is not possible!)
Start-up bypass time in [s],
1 s ≤ XXX ≤ 120 s
