Technical data KFD2-SOT2-Ex2
4
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0002 Singapore: +65 6779 9091Germany: +49 621 776 2222
www.pepperl-fuchs.com pa-info@us.pepperl-fuchs.com pa-info@de.pepperl-fuchs.com pa-info@sg.pepperl-fuchs.com
Power feed module KFD2-EB2
The power feed module is used to supply the devices with 24 V DC via the Power Rail. The fuse-protected power feed module
can supply up to 150 individual devices depending on the power consumption of the devices. Collective error messages received
from the Power Rail activate a galvanically-isolated mechanical contact.
Power Rail UPR-03
The Power Rail UPR-03 is a complete unit consisting of the electrical insert and an aluminium profile rail 35 mm x 15 mm. To
make electrical contact, the devices are simply engaged.
Profile Rail K-DUCT with Power Rail
The profile rail K-DUCT is an aluminum profile rail with Power Rail insert and two integral cable ducts for system and field cables.
Due to this assembly no additional cable guides are necessary.
Power Rail and Profile Rail must not be fed via the device terminals of the individual devices!

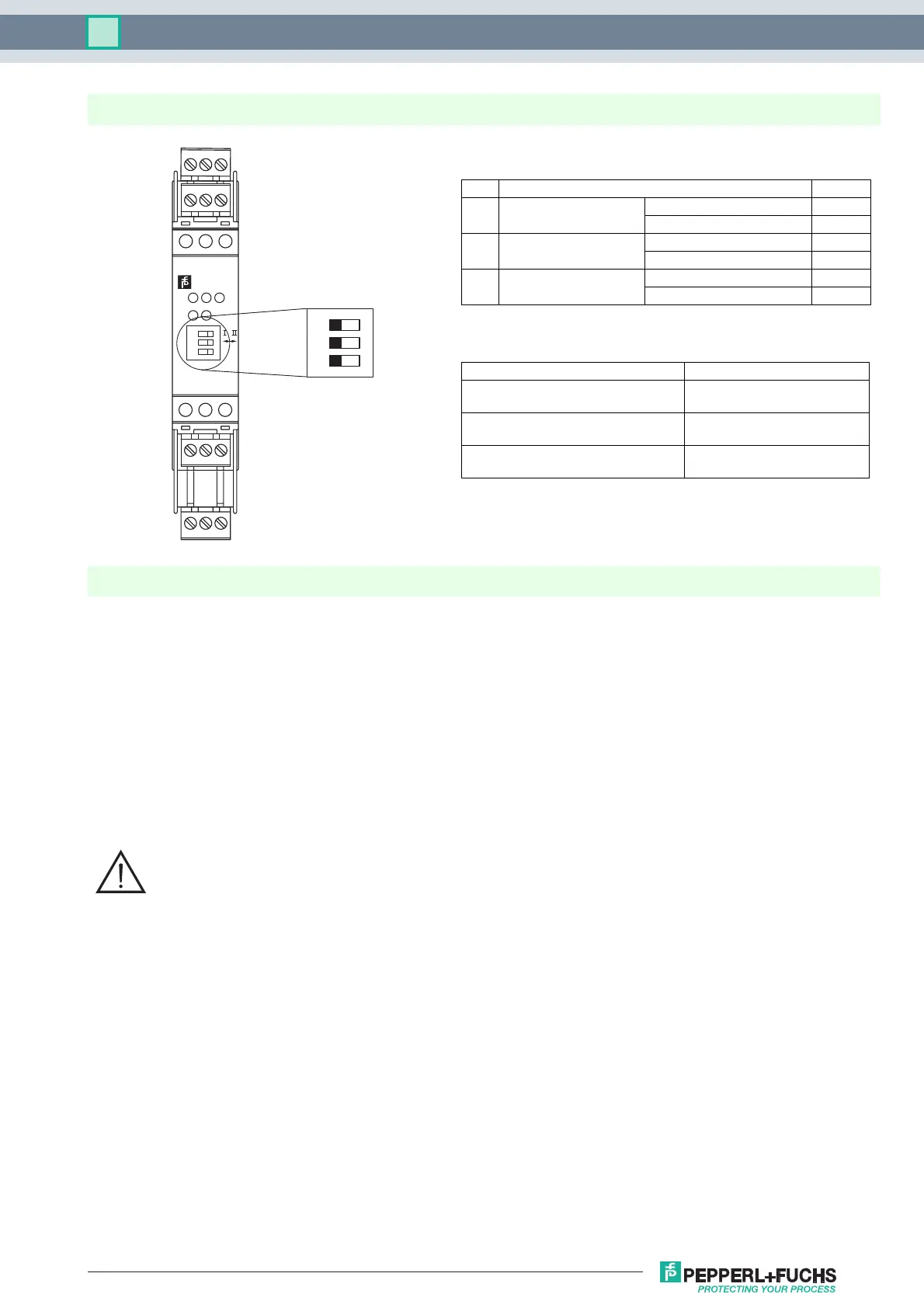

Configuration
789
10 11 12
123
456
13 14 15
1
2
PWRCHKOUT
S1
S2
S3
123
123
S1
S3
II
S2
I
Switch position
Operating status
Factory settings: switch 1, 2 and 3 in position I
S Function Position
1 Mode of operation
Output I active
with high input current I
with low input current II
2 Mode of operation
Output II active
with high input current I
with low input current II
3 Line fault detection ON I
OFF II
Control circuit Input signal
Initiator high impedance/
contact opened
low input current
Initiator low impedance/
contact closed
high input current
Lead breakage,
lead short-circuit
Line fault
Accessories
