2 BTS Functioning
The non-contacting thermal switch unit (BTS) consists of three components:
–
Switching element
–
Initiator with mounting flange
–
Evaluator
Optionally, if an intrinsically safe control circuit is required:
–
Isolating switch amplifier, two-channel for up to 2 initiators

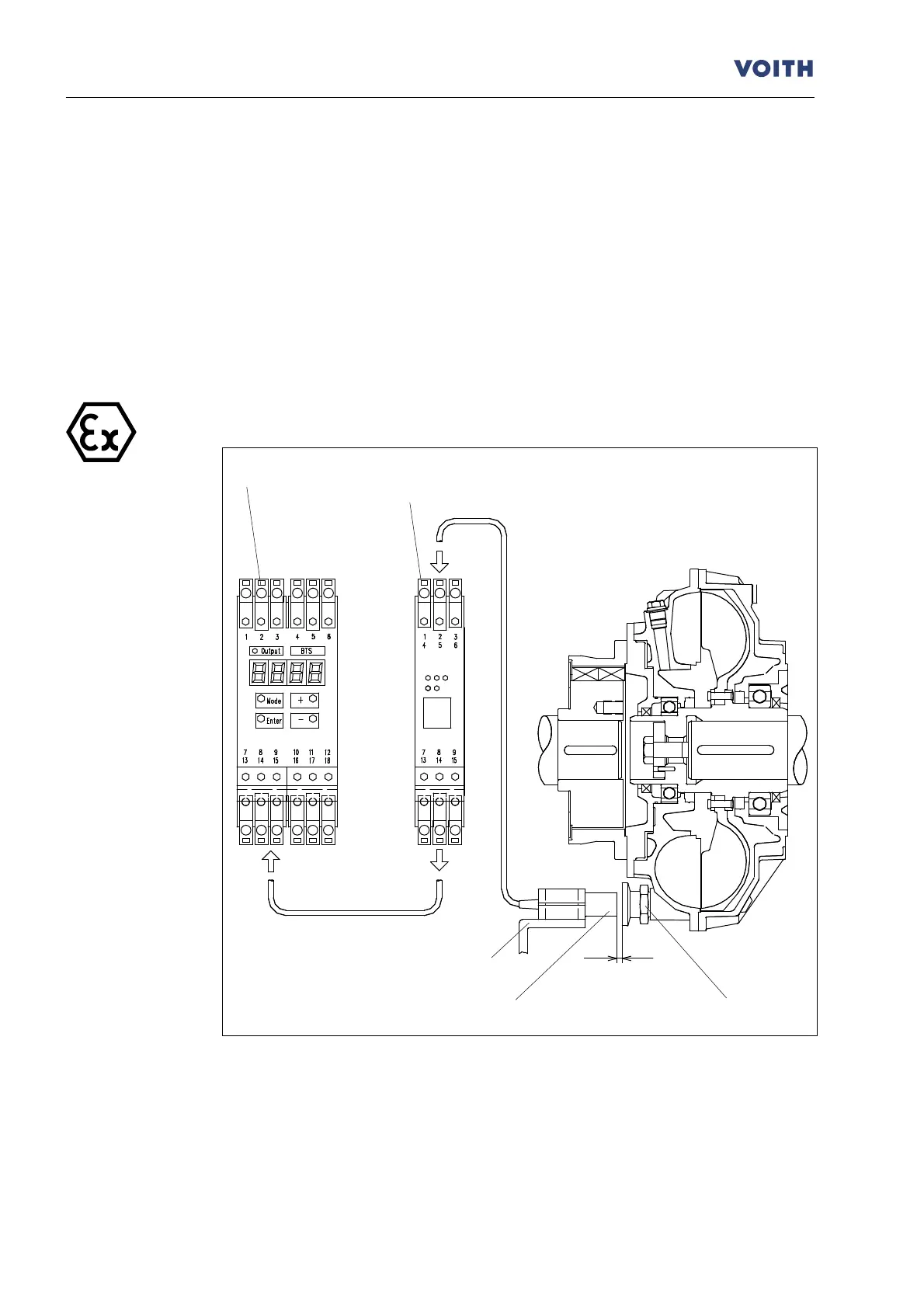

Fig. 1
a = 4 ± 1 mm
a
Evaluator
Isolating switch
amplifier
Turbo coupling
Initiator
Mounting flange
Switching element
