Voith BTS User Manual

Installation and Operating Manual / Version 10 / 3626-011500 en
/ Protection class 0: public / 2017-12-15
9
BTS, non-contacting thermal switch unit
Technical Data
3 Technical Data
3.1 Switching element

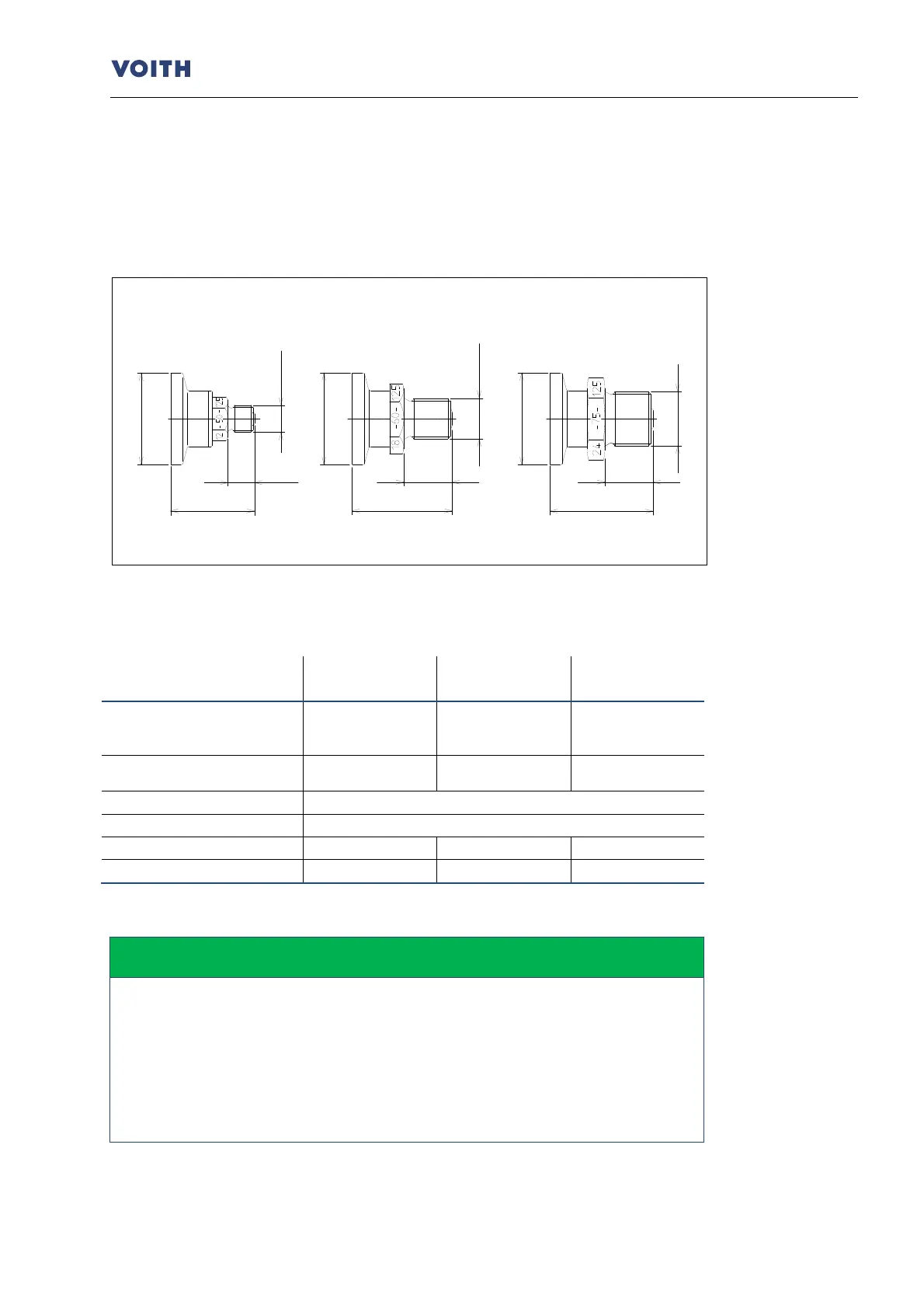

Fig. 2
The following switching elements are available for the different turbo coupling sizes:
Dimension of thread M12x1.5 M18x1.5 M24x1.5
Nominal response temperature 125 °C
85 / 90 / 100 /
110 /125 / 140 /
160 / 180 °C
85 / 125 / 140 /
160 / 180 °C
Suitable for
coupling sizes ...
206 – 274 366 – 650 750 – 1330
Response tolerance ± 5 °C
Trip temperature approx. 40 K below the response temperature
Width across flats 17 27 32
Tightening torque 22 Nm 60 Nm 144 Nm
Table 1
SAFETY INFORMATION
•
The type of switching element is stamped in on the housing indicating:
- Dimension of thread
- Maximum peripheral speed
- and nominal response temperature
•
The nominal response temperature of the switching element is determined in
connection with the the coupling design.
~ 47
~ 22
~ 45.5
~ 22
~ 38.5
~ 12.5
M24x1.5
M12x1.5
M18x1.5
Ø 41
Ø 41
M12x1.5
M18x1.5
M24x1.5
Ø 41
