Voith BTS User Manual

BTS, non
-contacting thermal switch unit
Installation
Installation and Operating Manual / Version 10 / 3626-011500 en / Protection Class
0: public / 2017-12-15
26
6.4 Mounting, connection - evaluator, isolating switch
amplifier
NOTICE
Damage to property
Damage to the system by electric components not connected properly and/or not
complying with the mounting instructions.
•
Wiring of the BTS is not included in Voith's scope of supply!
•
In case of longer distances between initiator and evaluator, we recom
mend
using a shielded cable for extension purposes.
•
Total resistance of an extension cable between initiator and evaluator t
o be
less than 100 Ω.
•
Install the evaluator and, if necessary, the isolating switch amplifier into an
appropriate cubicle and connect it/them in accordance with the wiring diagram.

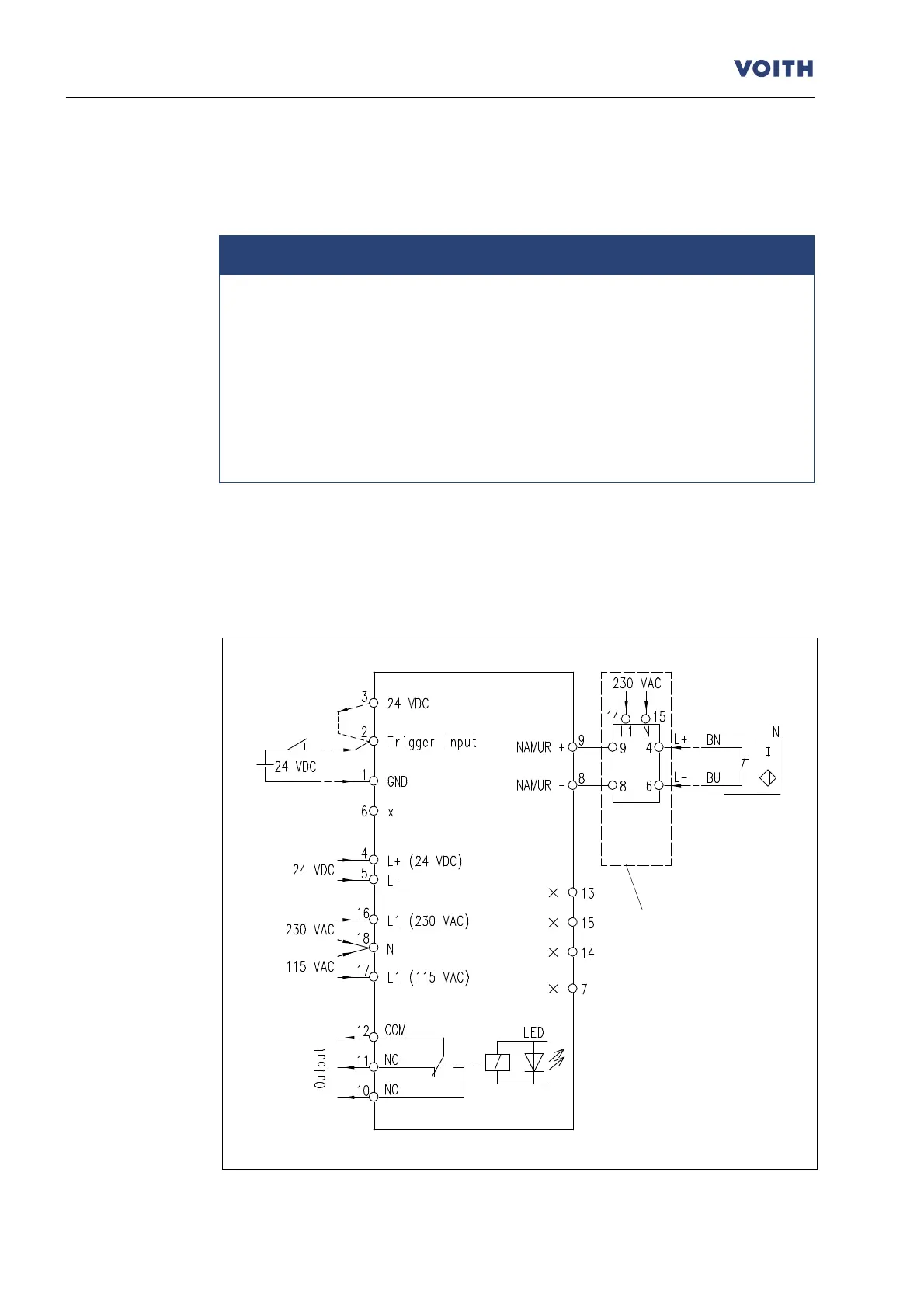

Wiring diagram:
Fig. 8
Evaluator
KFU8-DW-1.D-
Y209869

Chapter 15.4
Initiator
Isolating
switch
amplifier
Necessary for intrinsically
safe control circuits!
