Technical data KFA6-SOT2-Ex2
4
6IJIVXS+IRIVEP2SXIW6IPEXMRKXS4ITTIVP*YGLW4VSHYGX-RJSVQEXMSR
4ITTIVP*YGLW+VSYT 97% 7MRKETSVI+IVQER]
[[[TITTIVPJYGLWGSQ TEMRJS$YWTITTIVPJYGLWGSQ TEMRJS$HITITTIVPJYGLWGSQ TEMRJS$WKTITTIVPJYGLWGSQ

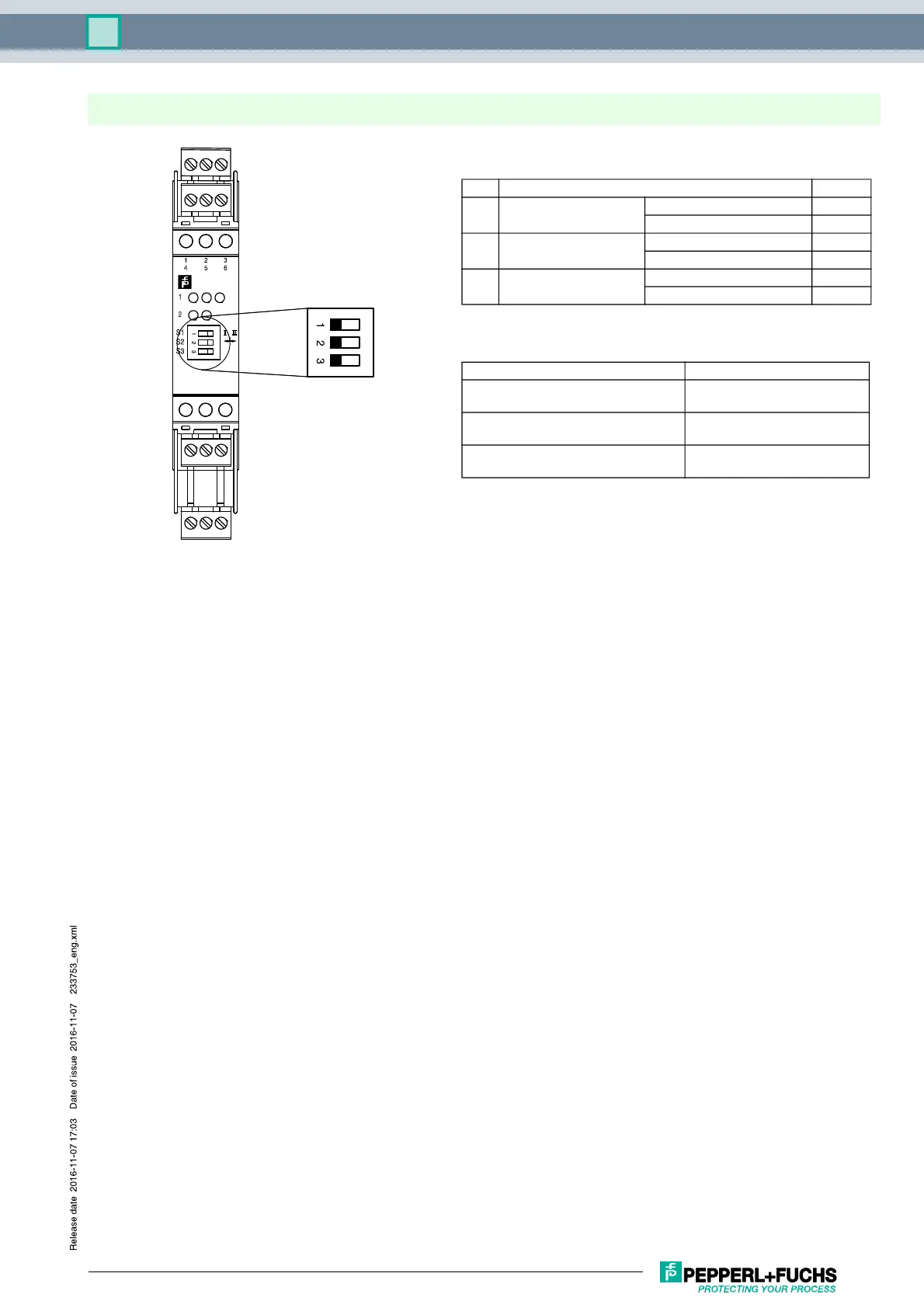

Configuration

  
  
4;6',/398
7
7
--
7
-
Switch position
Operating status
Factory settings: switch 1, 2 and 3 in position I
S Function Position
1 Mode of operation
Output I active
with high input current I
with low input current II
2 Mode of operation
Output II active
with high input current I
with low input current II
3 Line fault detection ON I
OFF II
Control circuit Input signal
Initiator high impedance/
contact opened
low input current
Initiator low impedance/
contact closed
high input current
Lead breakage,
lead short-circuit
Line fault
