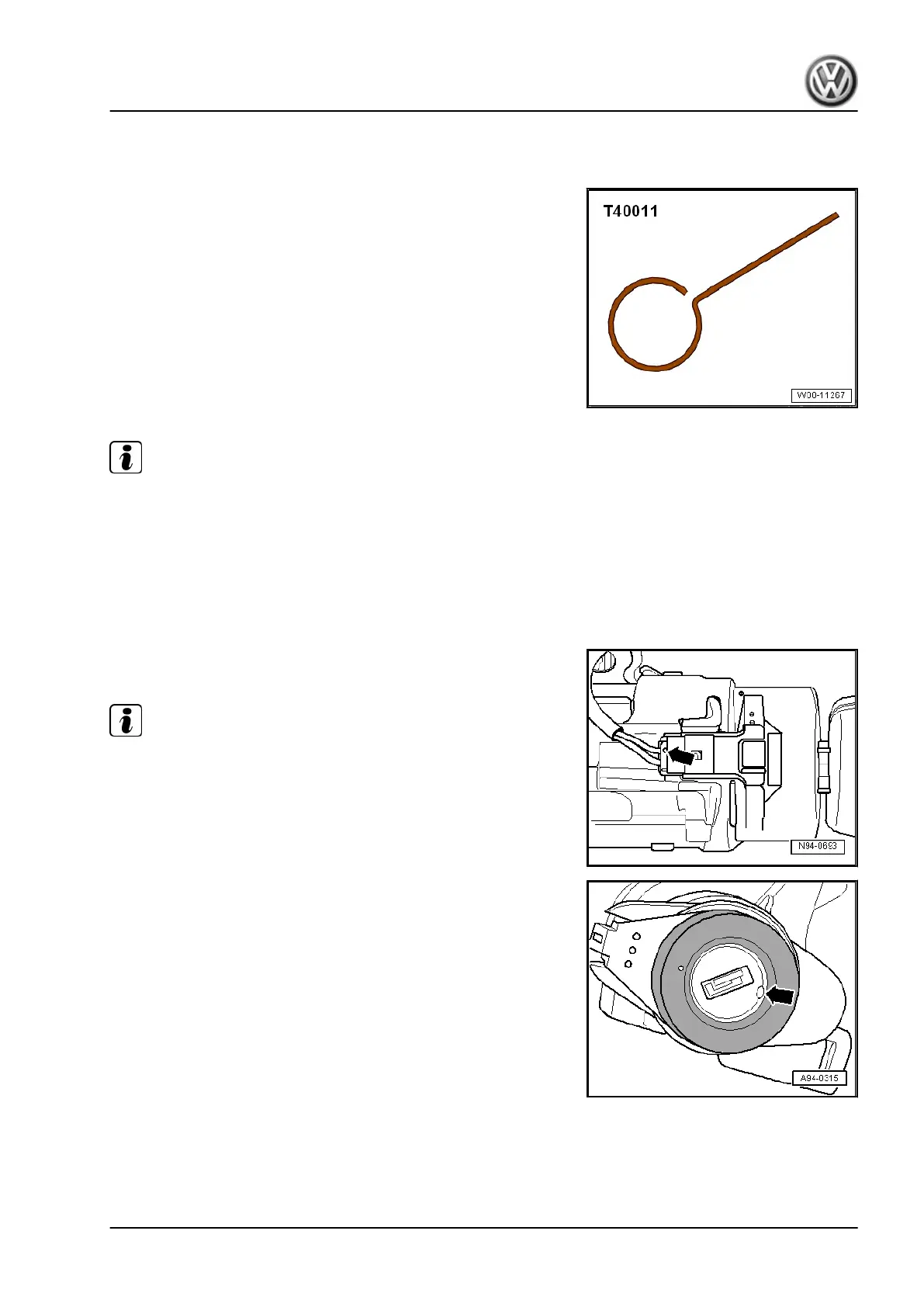

7.9 Removing and installing lock cylinder
Special tools and workshop equipment required
♦ Locking pin - T40011- or suitable welding wire
Note
♦
The immobiliser reader coil - D2- is integrated into the lock
cylinder and cannot be renewed individually.
♦
If it is defective, the complete lock cylinder must be renewed.
Removing
– Remove lower steering column trim ⇒ General body repairs,
interior; Rep. gr. 68 ; Compartments and covers; Removing
and installing lower steering column trim .
– Disconnect connector -arrow- from immobiliser reader coil -
D2- .
Note
♦
To remove the lock cylinder, it might be necessary to fold aside
the ignition key.
♦
For reasons of clarity, the ignition lock is illustrated in the cor‐
rect position without the ignition key.
– Turn ignition key to “Ignition ON” position. This will align the
recess in trim -arrow- with hole in ignition lock.
up! 2017 ➤ , up! 2020 ➤
Electrical system - Edition 10.2019
7. Steering column switch module 105
