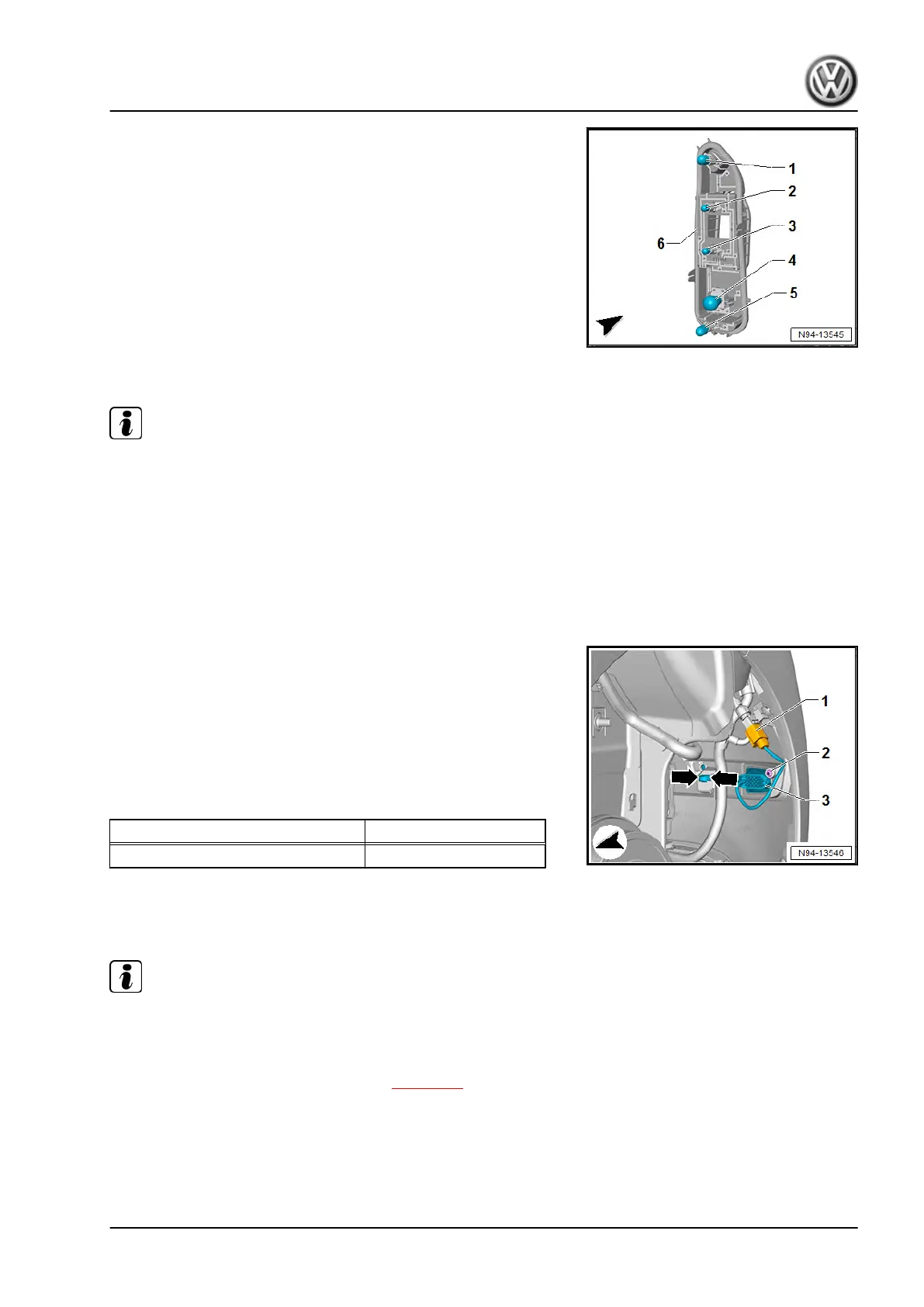

– Pull tail light bulb -2- or tail light bulb -3- in a straight line out
of bulb carrier -6-.
Installing
Install in reverse order of removal.
4.5 Removing and installing rear fog light
Note
Removal and installation are described for the left side. The re‐
moval and installation procedure for the right-hand side is basi‐
cally the same.
Removing
– Switch off ignition and all electrical consumers, and withdraw
ignition key.
– Detach rear left wheel housing liner in rear area ⇒ General
body repairs, exterior; Rep. gr. 66 ; Wheel housing liner; Re‐
moving and installing rear wheel housing liner .
– Release and pull off connector -1- of rear fog light -3-.
– Unscrew bolt -2-.
– Release fasteners -arrows-, and remove rear fog light -3- to‐
wards rear from bumper.
Installing
Install in the reverse order of removal.
Specified torques
Component Specified torque
Securing bolt 1.5 Nm
4.6 Removing and installing rear fog light
bulb -L46- / -L47-
Note
The rear fog light bulbs are LEDs -L46- / -L47- and are integrated
in the rear fog light. These LEDs cannot be renewed. The rear fog
light must be renewed completely.
– Removing and installing rear fog light ⇒ page 91 .
up! 2017 ➤ , up! 2020 ➤
Electrical system - Edition 10.2019
4. Tail lights 91
