Volt Time Source 2 Installation Guide - alternative entry
Closing the product
CAUTION: For a socket variant, be careful when closing the
product as wiring could get trapped between the housing and
the cover. Proceed with caution.

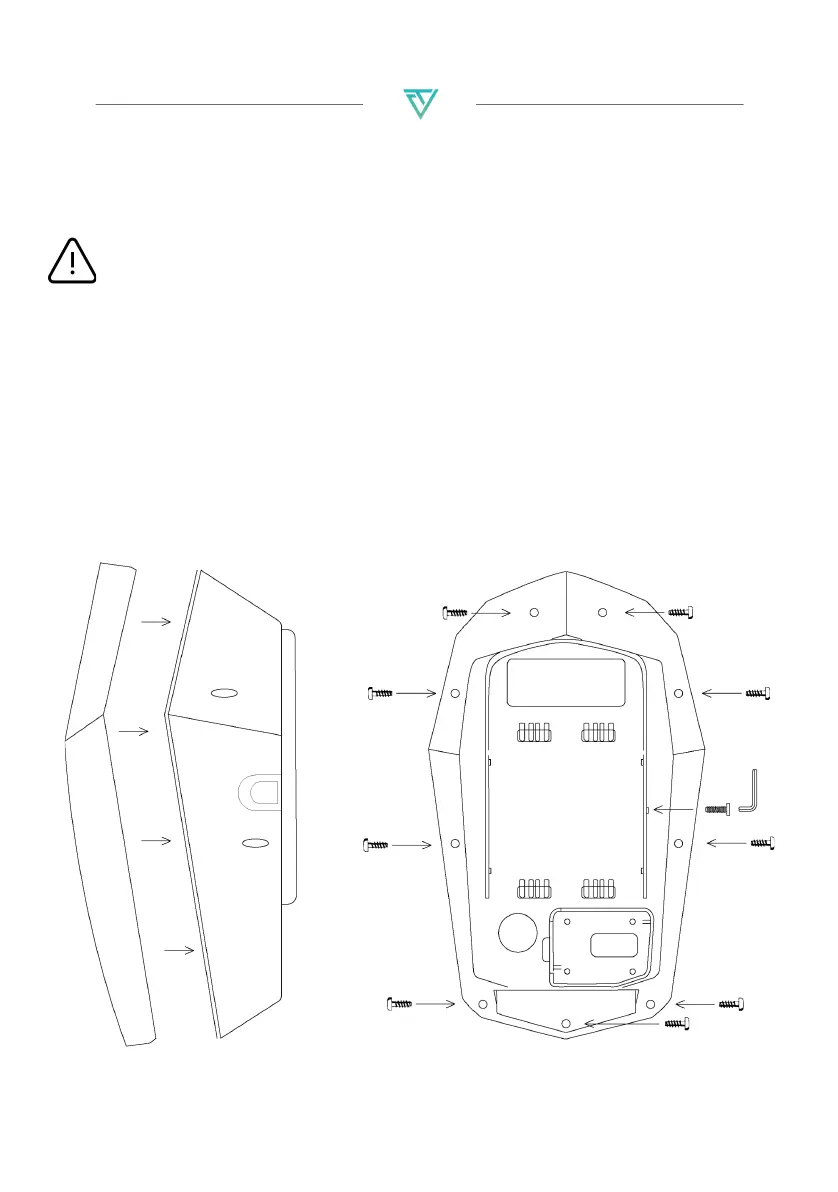

1. Place the cover back onto the product.
2. Slide the product temporarily from the mounting plate and lay
the product on your arm.
3. Fasten the 9 screws (T10) with a T10 screwdriver till a torque of
2Nm has been achieved per screw.
4. Slide the product back onto the mounting plate.
5. Fasten the locking bolt (H4) on the left side of the product with
the delivered Tool.
