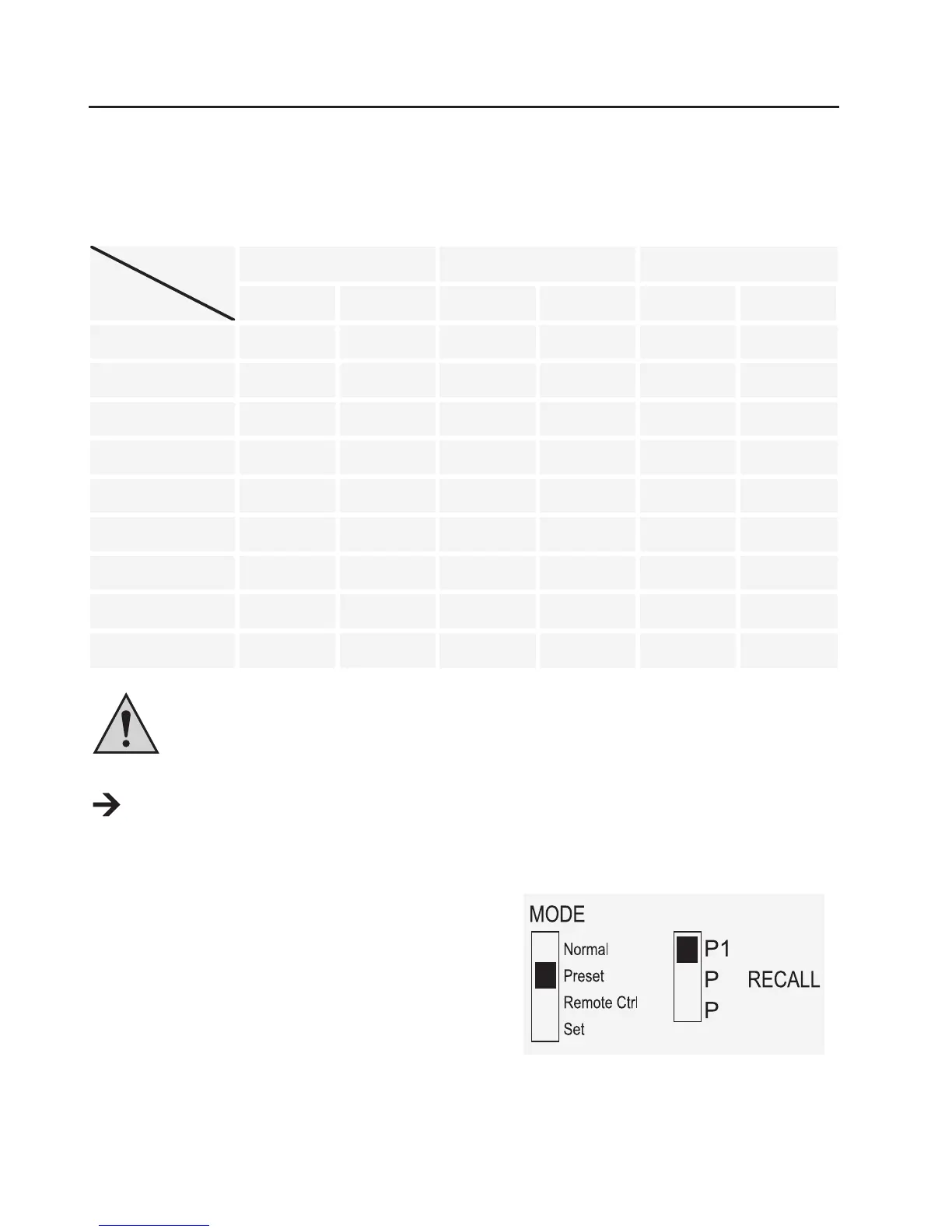

9. MEMORY SLOT OPERATION “PRESET” AND “SET”
Three xed voltages, including current settings, can be stored in the device with the Set function and
directly selected through the Preset function.
Ex works, all three memory slots (P1, P2, P3) are preset.
They are assigned as follows:
Memory
Type
P1 P2 P3
Voltage Current Voltage Current Voltage Current
DPPS-16-30 5 V Maximum 13.8 V Maximum 15 V Maximum
DPPS-32-15 5 V Maximum 13.8 V Maximum 25 V Maximum
DPPS-60-8 5 V Maximum 13.8 V Maximum 55 V Maximum
DPPS-16-40 5 V Maximum 13.8 V Maximum 15 V Maximum
DPPS-32-20 5 V Maximum 13.8 V Maximum 25 V Maximum
DPPS-60-10 5 V Maximum 13.8 V Maximum 55 V Maximum
DPPS-16-60 5 V Maximum 13.8 V Maximum 15 V Maximum
DPPS-32-30 5 V Maximum 13.8 V Maximum 25 V Maximum
DPPS-60-15 5 V Maximum 13.8 V Maximum 55 V Maximum
Make sure that no consumers are connected.
The memory can also be set via the software provided, check the chapter “Control with the
PC software”.
1. Activate the Preset function through the selection switch MODE (8) on the rear.
2. Put the switch in the Preset position. The front LED
indicator REAR CONTROL (2) lights up. The front
control knobs are now inactive.
3. Select the respective memory slot P1, P2 or P3 on
the rear selection switch RECALL (9). The
respective
output voltage is indicated on the display (1).
4. Now you can connect and switch on the consumer.
