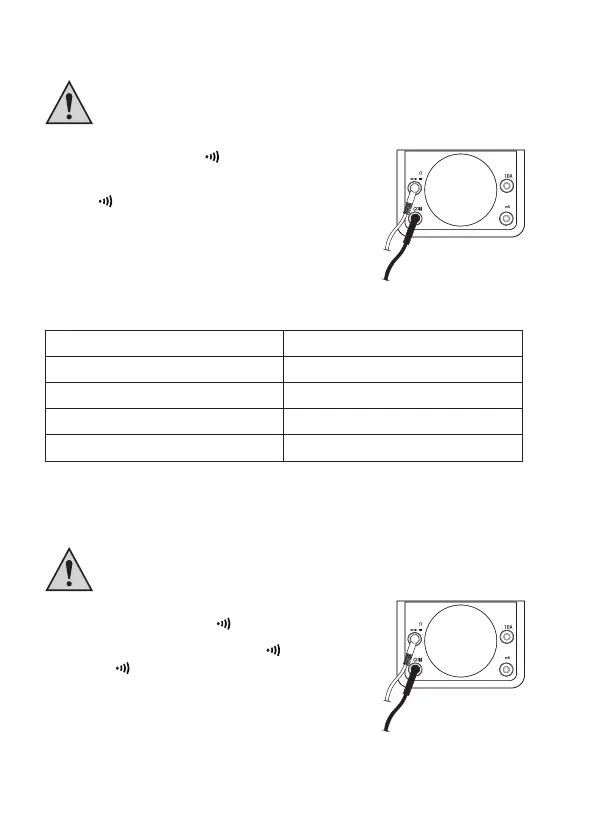

Connect the black measuring line to the COM socket “8” and
DC
AC
DC
AC
V
the red one to the socket V, Ω, “7”.
• Set the adjustment wheel “4” to the area Ω and the slider “5”
to “DC,
, Ω“
• Connect the two measuring prods with the object to be mea-
sured.
• The measuring value is shown on the analogue scale “1”.
Take the value and multiply it with the values of the following
table:
X 1 X 1
X 10 X 10
X 100 X 100
X 1K X 1000
• Connect the black measuring line to the COM socket “8” and
DC
AC
DC
AC
V
the red one to the socket V, Ω, , “7”.
• Set the adjustment wheel “4” to the area
, and the slider
“5” to “DC,
, Ω“
• Connect the two measuring prods with the object to be
measured
• A resistance value up to 40 Ohm will cause a signal to sound
