Volvo Penta D5A - D7 A T KC (1-circuit) Cooling System Diagram

D7A T KC (1-circuit)
P0013711
1
2
3
4
Drain points fresh water system
D
D
P0013812

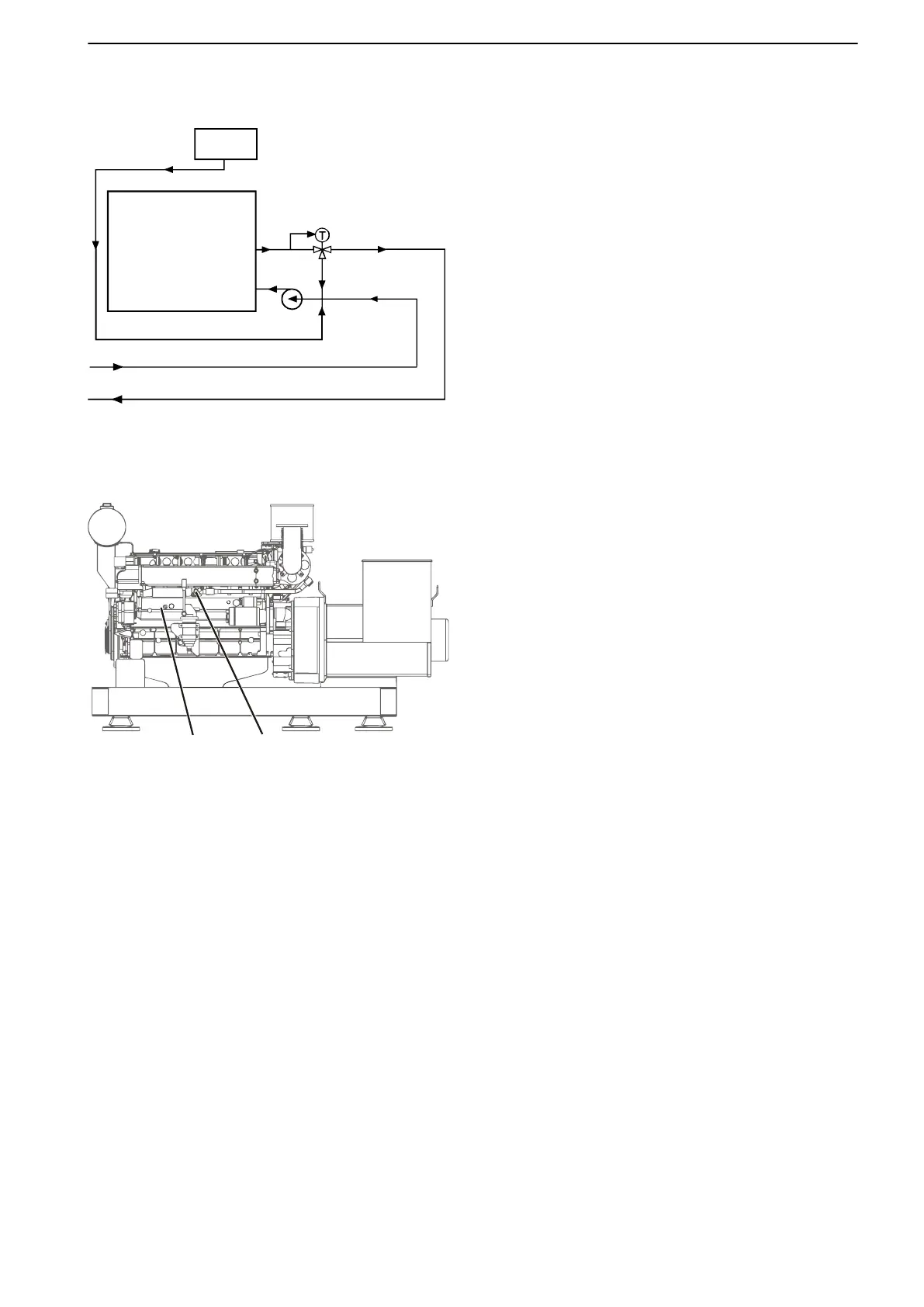

The engine cooling water (freshwater) is cooled
by ,e.g, a box cooler, a grid cooler, or any other
external heat exchanger. The system is cooling the
cylinder liners and the cylinder heads. An engine
driven freshwater pump circulate the coolant through
the engine.
1 Engine
2 Freshwater pump
3 Thermostat valve
4 Expansion tank
Maintenance
47713337 03-2021 © AB VOLVO PENTA 77
