Instrument panels
22 Right hand instrument panel

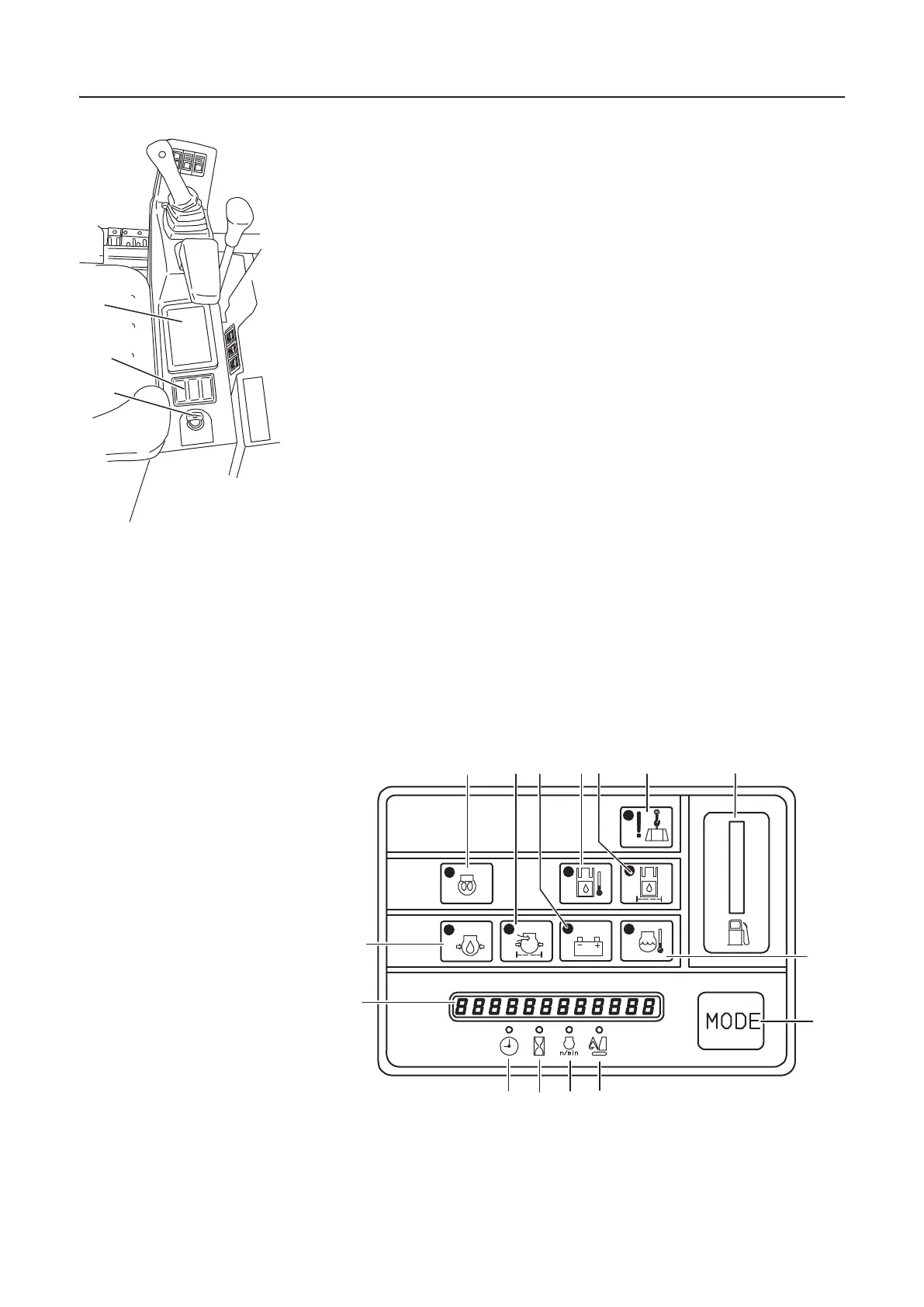

Right hand instrument panel
The right hand instrument panel contains control elements to
start, stop and secure the machine.
1 "PUMA" instrument panel
2 Anti-theft device (option)
3 Ignition switch
1 "PUMA" instrument panel
The "PUMA" (Processing Unit Monitoring Assistance) instru-
ment panel contains gauges, control and warning lights.
During operation 3 different audible warning signals (peep-
sounds) may sound:
– An extended warning signal after shut-down (with the ignition
key), which signalizes deactivation of the functions.
– A triple warning signal indicates that the machine needs to be
serviced (standard maintenance).
– 4 successive high pitch warning signals indicate a severe fault,
which needs to be rectified immediately (high urgency alarm).
1012225
1
2
3
3
11
5
617 4
1
0
28
9
5.1 5.2 5.3 5.4
1012105
