Operating techniques
Attaching and removing attachments 57
Attaching and removing attach-
ments

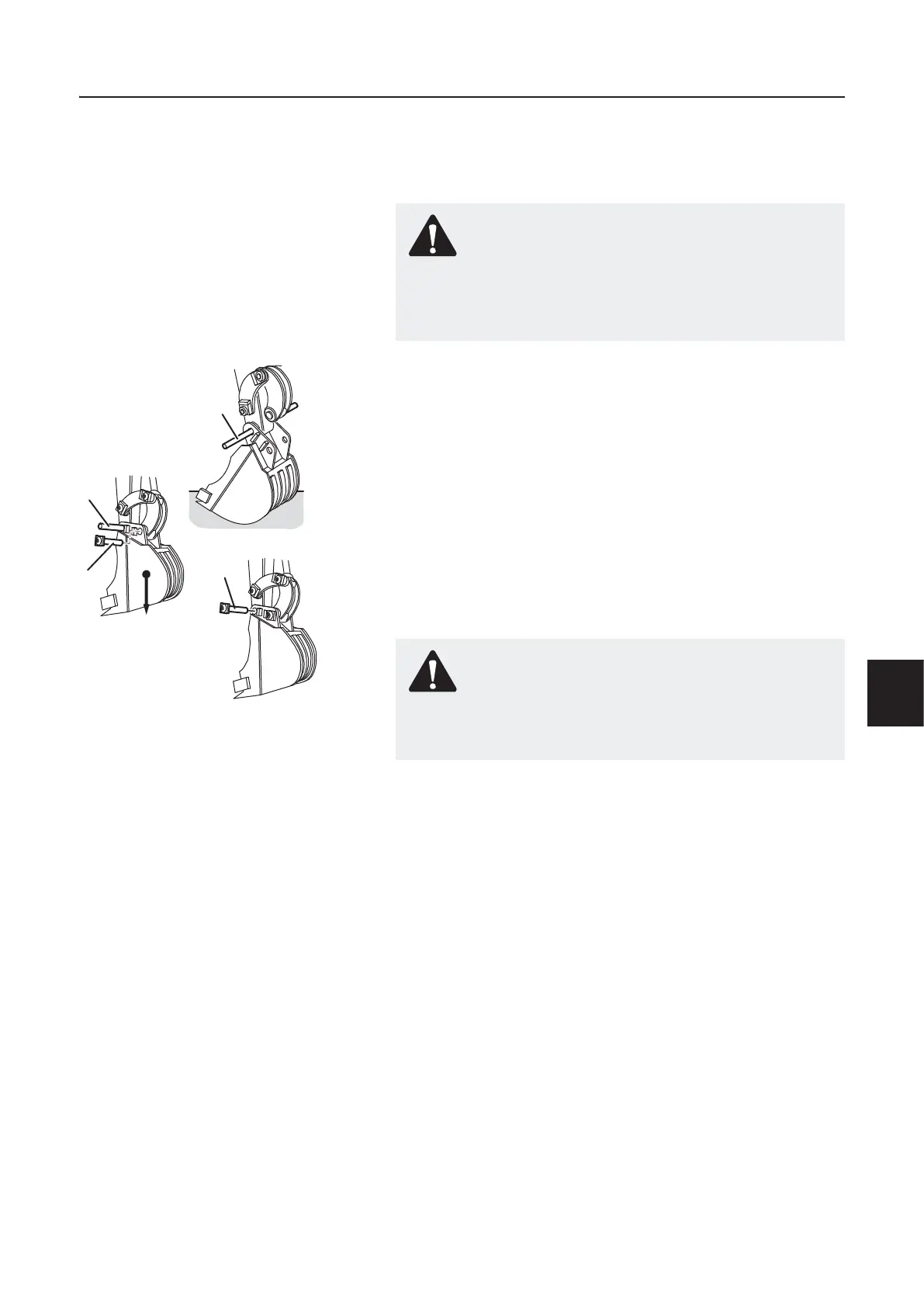

Installing a bucket with manual fastening
1 Position the excavating equipment to the bucket to be installed.
2 Align bores in dipper arm and bucket.
3 Insert a Ø 20 mm assembly rod into the bore.
4 Raise the excavating equipment and operate the bucket cylin-
der until the bores in bucket and toggle link are in line.
5 Insert locking bolt (2) and secure it with the split pin.
6 Remove assembly rod (1), insert locking bolt (3) and secure it
with the split pin.
NOTE! Disassembly of the bucket takes place in reverse or-
der.
WARNING!
Never use any attachment, unless you have checked that it
is securely fastened and that the attachment including
hydraulic hoses, hose connections and other components
is free of damage. Your personal safety is concerned.
WARNING!
Check whether the attachment is properly locked and secu-
red by pressing it against the ground, so that the machine
slightly lifted.
1012195
2
1
1
3
