Operating techniques
62 Hammer (option)

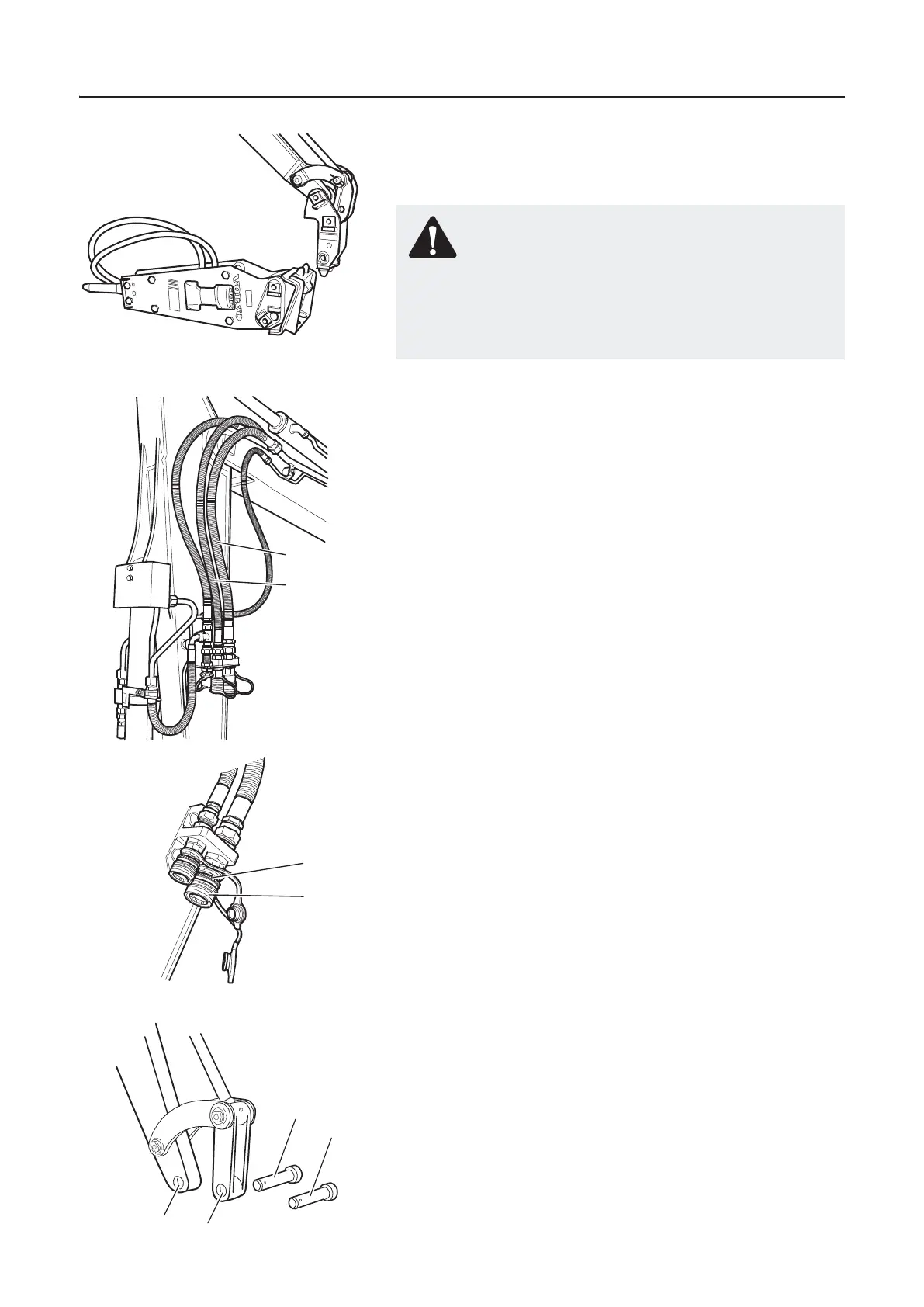

Detaching the hammer
1 Place the machine on firm and level ground.
2 Lower the boom and lay the hammer flat on the ground.
3 Turn the black safety rings (D) and pull them back to unlock the
hydraulic couplings (C).
4 Disconnect the hydraulic hoses of the hammer from the hy-
draulic connections on the boom.
5 Drive the bolts (1) out of the fastening bores (2) on the boom to
loosen the hammer.
NOTE! Lay the hammer on a pallet. This enables easier trans-
port of the hammer after disassembly.
WARNING!
Before removing or connecting hydraulic hoses the engine
must be shut down and the control levers shifted to all
directions, in order to relieve any trapped pressure. It must
be strictly assured that the engine cannot be started after
hydraulic couplings have been opened.
1016542
D
C
2
2
1016534
1
1
1016543
1016538
A
B
