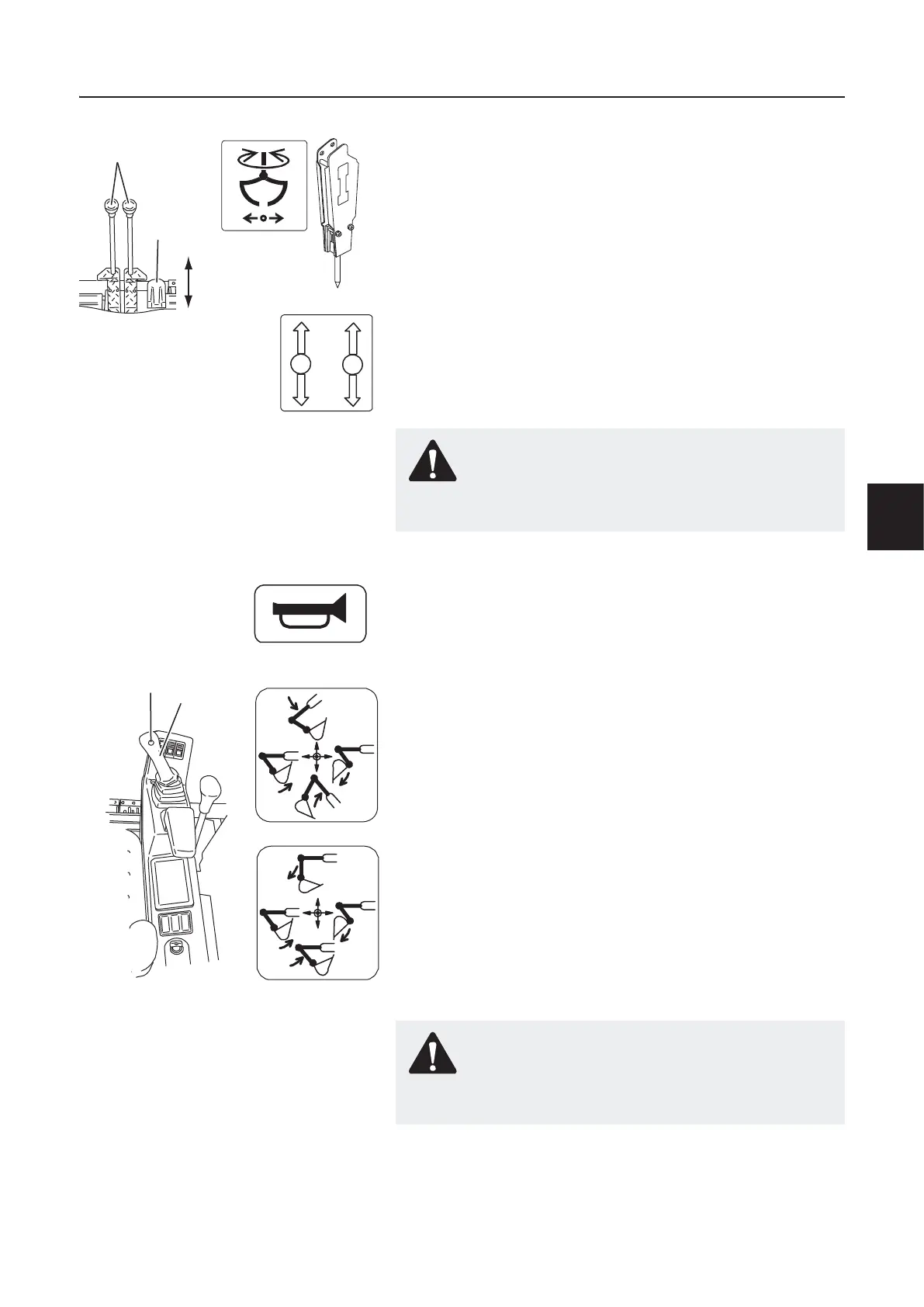

Other controls
Controls 31
5 Pedal for optional equipment
– Pedal for optional equipment, such as hammer or clamshell
(option).
– Actuation of the pedal executes the function of the optional
equipment.
6 Control levers for travel motion
– Push both levers forward: Forward travel.
– Pull both levers backward: Reverse travel.
– Pull left lever backward: Turn left.
– Pull right lever backward: Turn right.
7 Warning horn switch
– Button depressed: Horn signal.
8 Right hand control lever for excavator attach-
ment (ISO control pattern)
– Lever forward: Boom down.
– Lever backward: Boom up.
– Lever to the right: Empty the bucket (opening).
– Lever to the left: Fill the bucket (closing).
8 Right hand control lever for excavator attach-
ment (STD control pattern, option)
– Lever forward: Extending the dipper arm.
– Lever backward: Retracting the dipper arm.
– Lever to the right: Empty the bucket (opening).
– Lever to the left: Fill the bucket (closing).
NOTE! Market dependent optional equipment. North America
only. Control pattern selector switch, see page 32.
WARNING!
If the dozer plate is in rear position (180 degree rotation),
travel system operation is reversed.
WARNING!
Read and understand the corresponding control pattern
before starting operation!
