Other controls
32 Controls

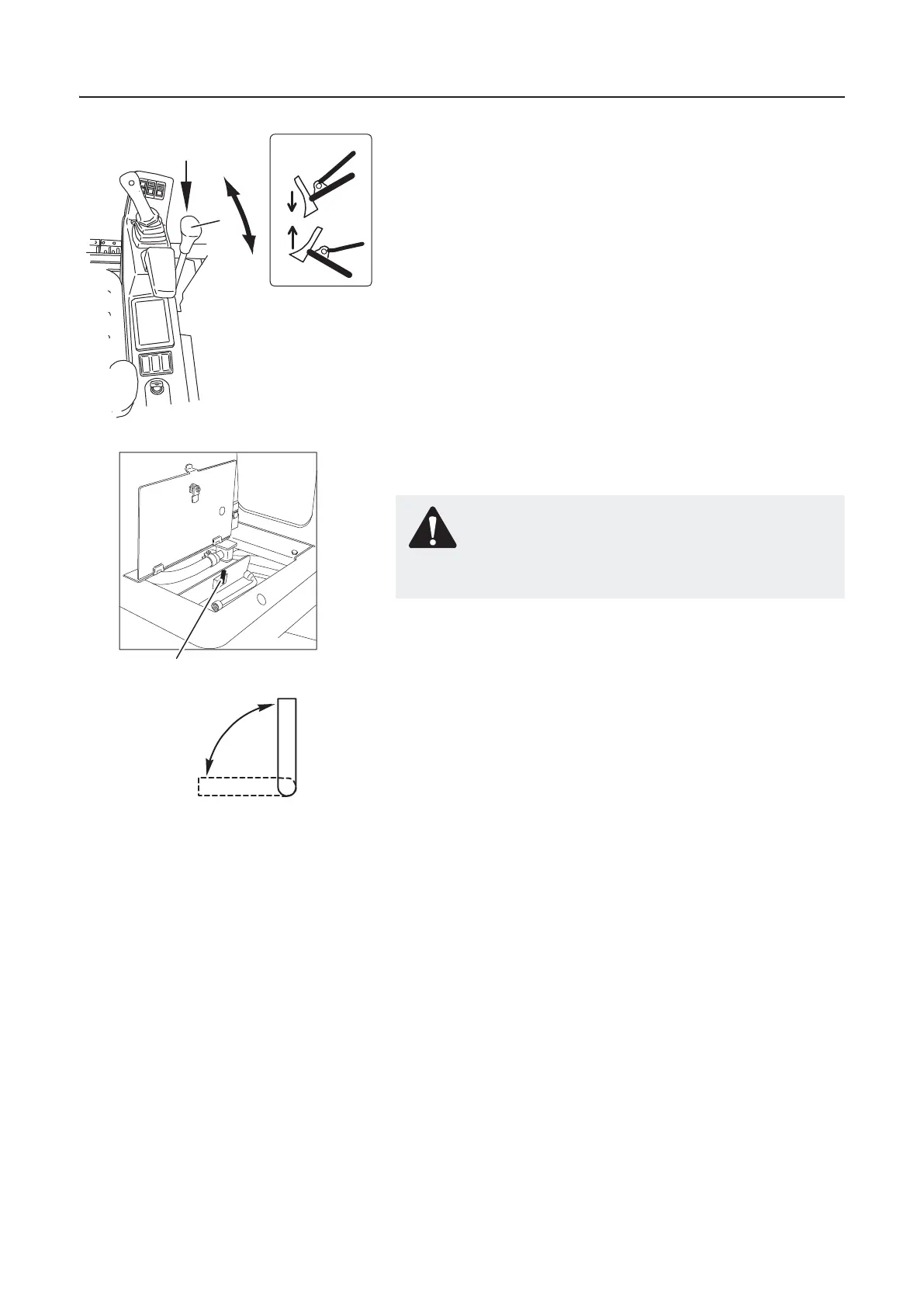

9 Dozer blade control lever
The control lever controls the height of the dozer blade.
– Lever forward: Dozer blade down.
– Lever backward: Dozer blade up.
A Button to activate fast travel speed gear.
– Hold button depressed: Fast speed is activated.
– Button released: Fast speed is deactivated.
NOTE! Fast speed is automatically disabled when the button
is released. The switch for fast speed in the front instrument
panel does not need to be activated!
10 Control pattern selector switch (ISO/STD)
(option)
The control pattern selector switch (10) is located in the tool rack.
This rack is located in travel direction right above the offset cylin-
der.
– Lever in vertical position (1): ISO control pattern.
– Lever in horizontal position (2): STD control pattern (option).
NOTE! Market dependent optional equipment. North America
only.
WARNING!
Read and understand the control pattern before switching
the control pattern selector switch over.
1 (ISO)
2 (STD)
1016527
1016526
10
1012127
1011331
9
A
