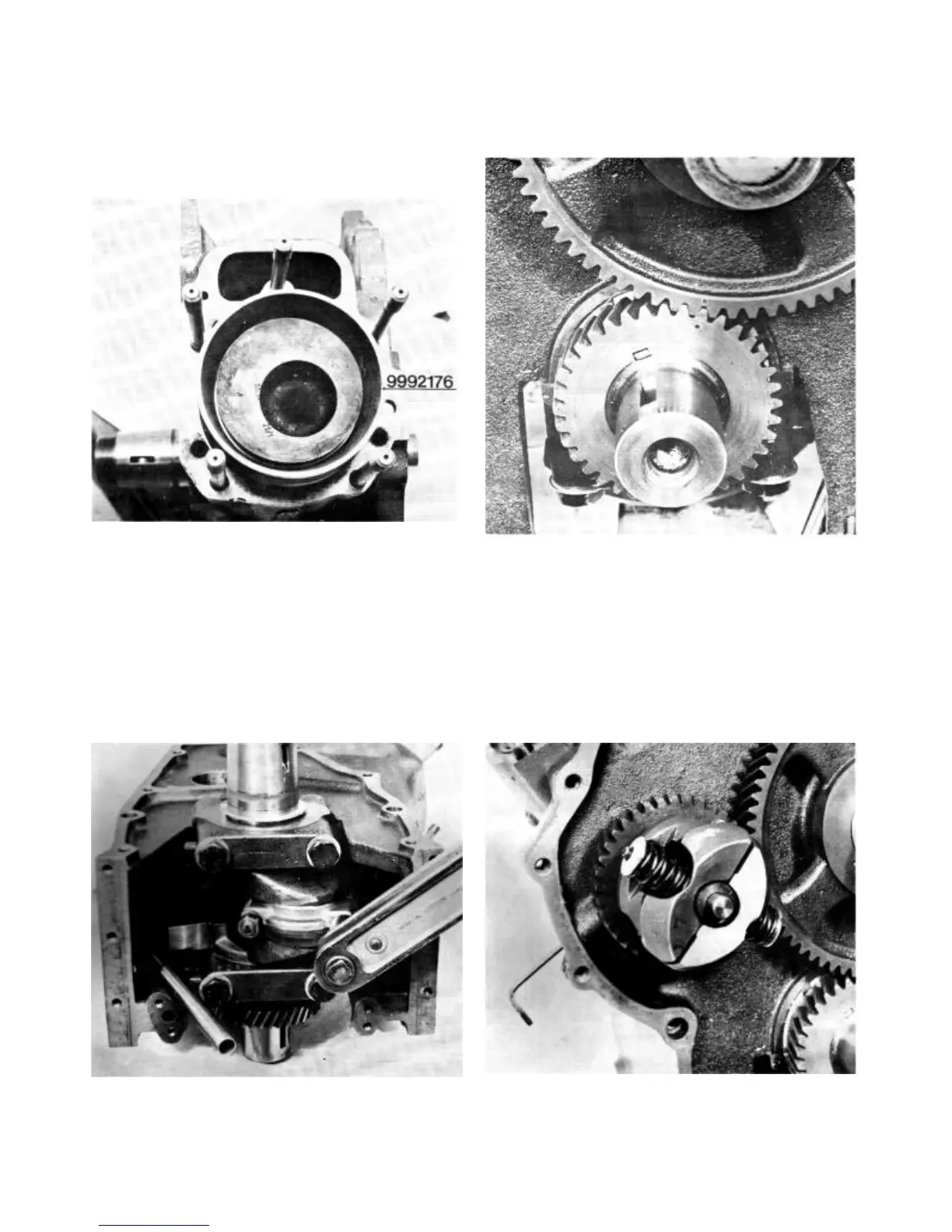

65. Remove any wear edges in the cylinder liner. Oil the
cylinder liner and fit the piston in the block. Use a piston ring
sleeve or tool 9992176. Turn the piston so that the machined
depression in the piston crown faces the nozzle side.
67. Fit the camshaft with the camshaft gear. Align the marks
on the crankshaft gear and the camshaft gear.
66. Oil and fit the big end bearing shells in the bearing half.
Turn mark to the correct position and fit the bearing half.
Tightening torque: 70 Nm (7 kpm) (50Lbft.).
68. Fit the governor. Tighten it in position with the set screw
on the side. See that it goes into the groove.
19
