Wiring Diagram
Cable Marking
Designation Colour mm
2
A.W.G.
A White 6 9
B Black 1.5 15
B’ Black 0.6 19
B” Black 0.75 18
C Red 6 9
C’ Red 35 1
C” Red 0.6 19
F Yellow 1.5 15
G Brown 1.5 15
H’ Blue 35 1
I Green/Red 1.5 15
I’ Green/Red 0.75 18
J Green 1.5 15
J’ Green 0.6 19
J” Green 0.75 18
K Blue/Yellow 0.75 18
L White/Red 0.75 18
M Blue/Red 0.75 18

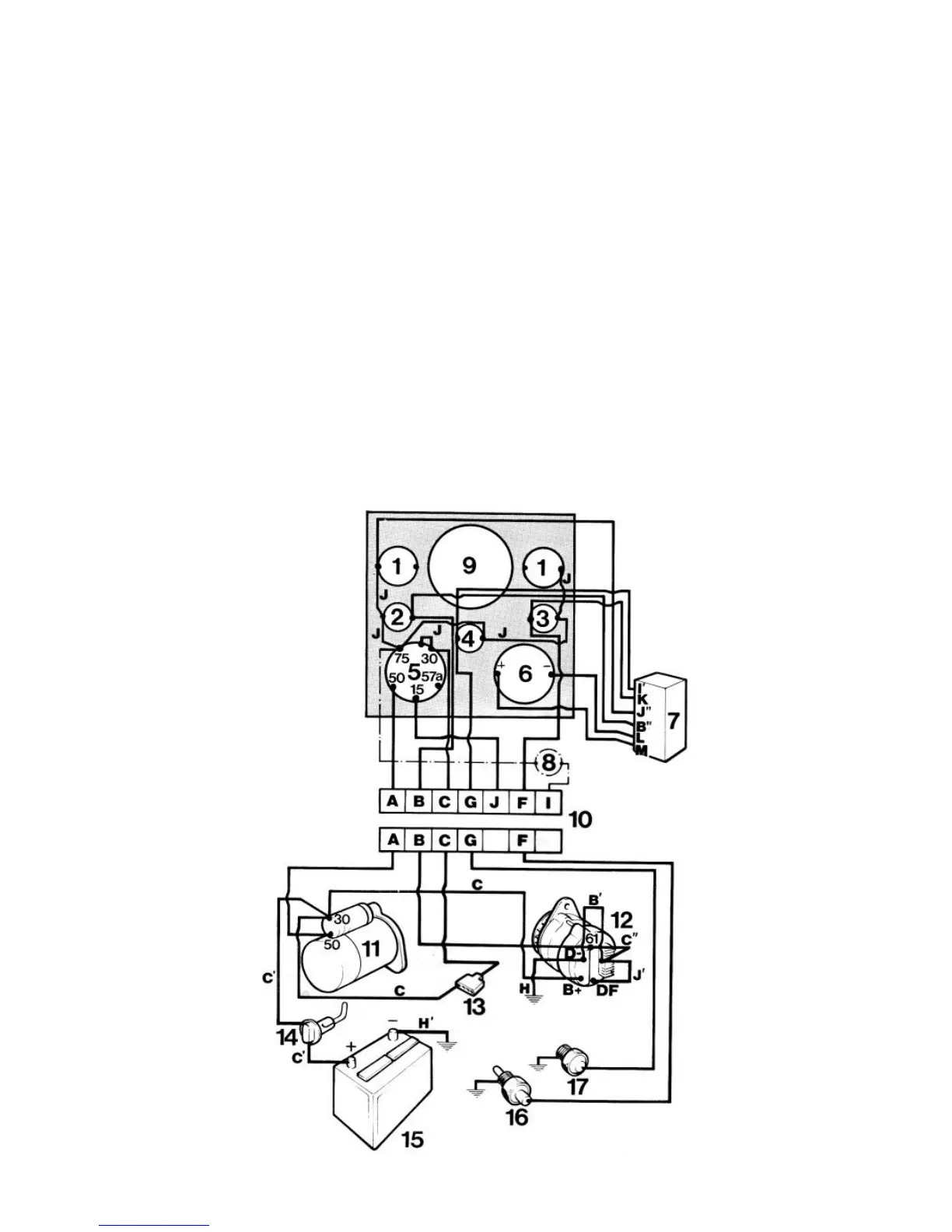

Circuit explanation
1. Extra switch
2. Charging control lamp
3. Temperature warning lamp
4. Oil pressure warning lamp
5. Key switch
6. Warning unit
7. Screw
8. Charging control lamp (for secondary battery
circuit, extra equipment)
9. Place for instruments, extra equipment.
10. Snap connection
11. Starter motor
12. Alternator
13. Fusebox
14. Main switch
15. Battery
16. Temperature sender
17. Oil pressure sender
