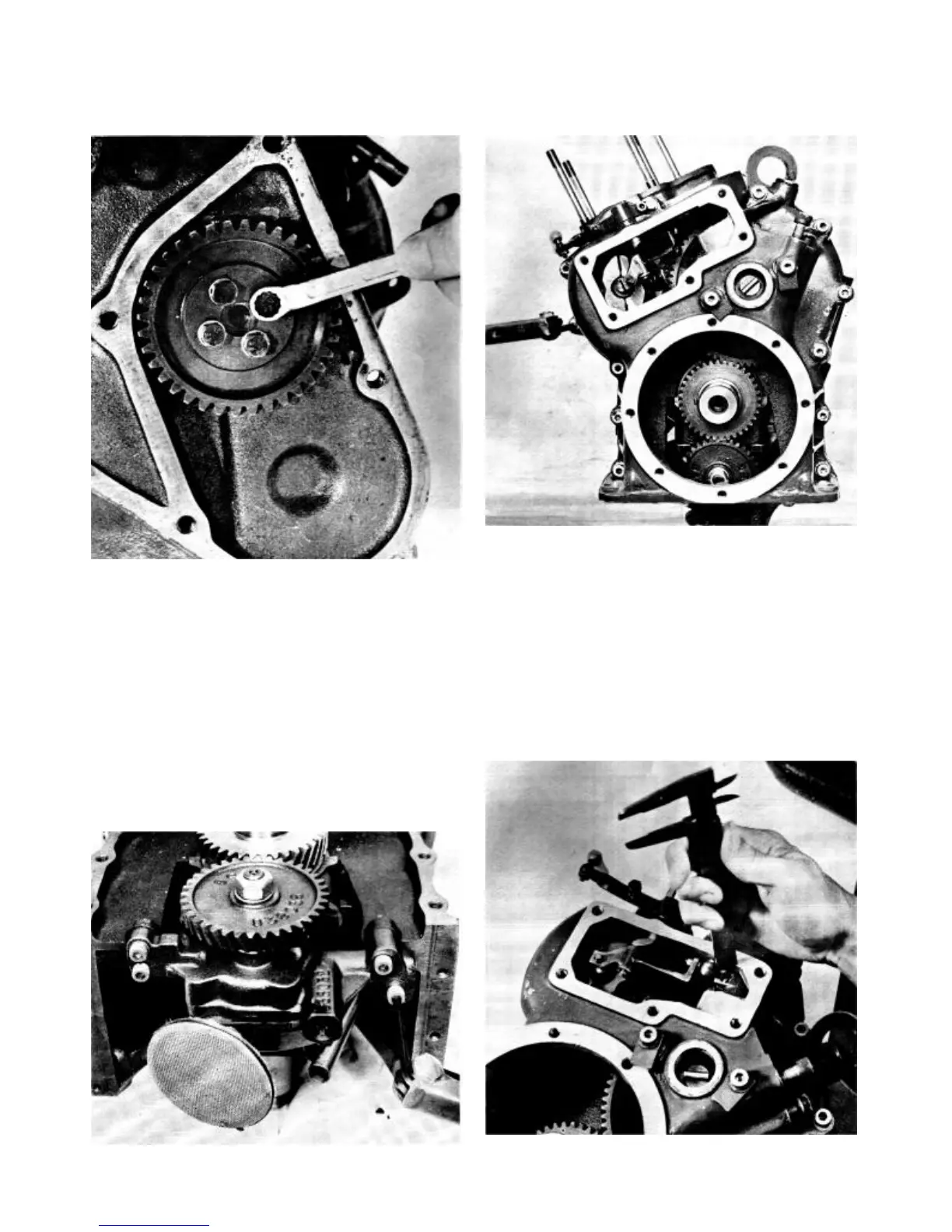

69. Fit the gearwheel on the camshaft’s opposite end. 71. Fit a new gasket for the transmission cover. Afterwards
fit the transmission cover. Fix the lifting eye with the upper
screw.
Adjustment of control rod travel
72. Fit a new gasket and fit the injector pump. Press on the
ball end of the control arm. Measure and check that the
control rod travel is correctly adjusted. (The same as prior to
dismantling.) The measurement must be carried out with a
new gasket. Set the control at full throttle. Press down the
plunger to bottom position. Note that the cold start must not
be engaged during measurement. The exact amount
injected can only be determined when checking in a test
bench.
70. Fit the oil pump. Note the different screw lengths.
20
