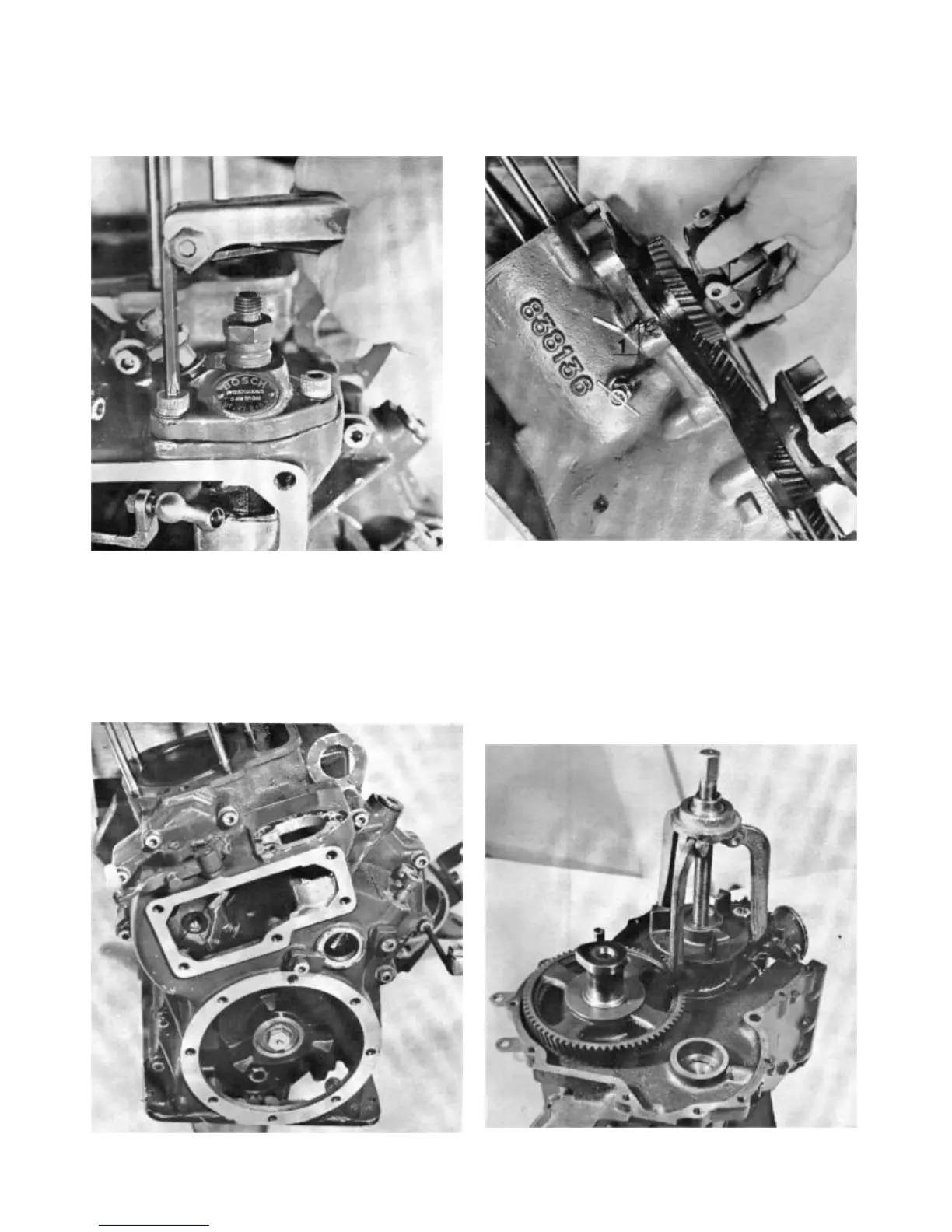

9. Remove the pump screws. Position the ball in the centre
and remove the pump.
11. Remove the governor by loosening the hexagonal set
screw (1), the governor and the gear wheel can then be
withdrawn.
10. Remove the sump and then the transmission cover (13
screws). The lifting eye is fixed one of the screws. The cover
is centralised by guide pins.
12. Remove the screw and the locking washer for the
gearbox drive flange on the crankshaft and remove the
flange with a puller. (Use counter force.) Remove the key
afterwards.
5
