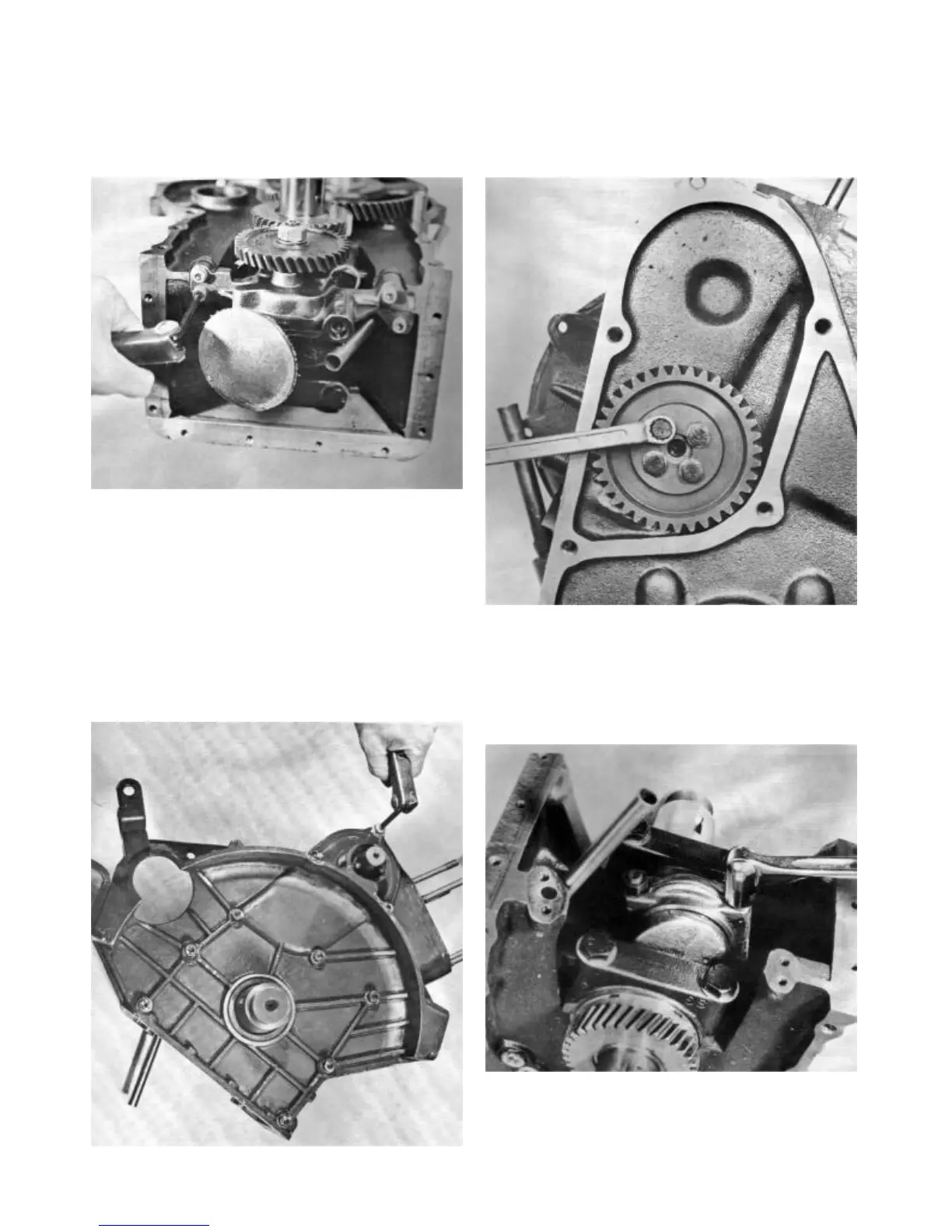

13. Remove the lubricating oil pump. Discard the gasket. 15. Remove the gearwheel on the camshaft’s flywheel side
(4 screws). Then remove the camshaft and the gearwheel.
14. Remove the cover (flywheel side), 10 screws. The cover
is centred with guide pins. The screws by the guide pins are
fitted with thick washers.
16. Mark and remove the bearing cap on the crankshaft and
carefully knock out the piston through the cylinder.
6
