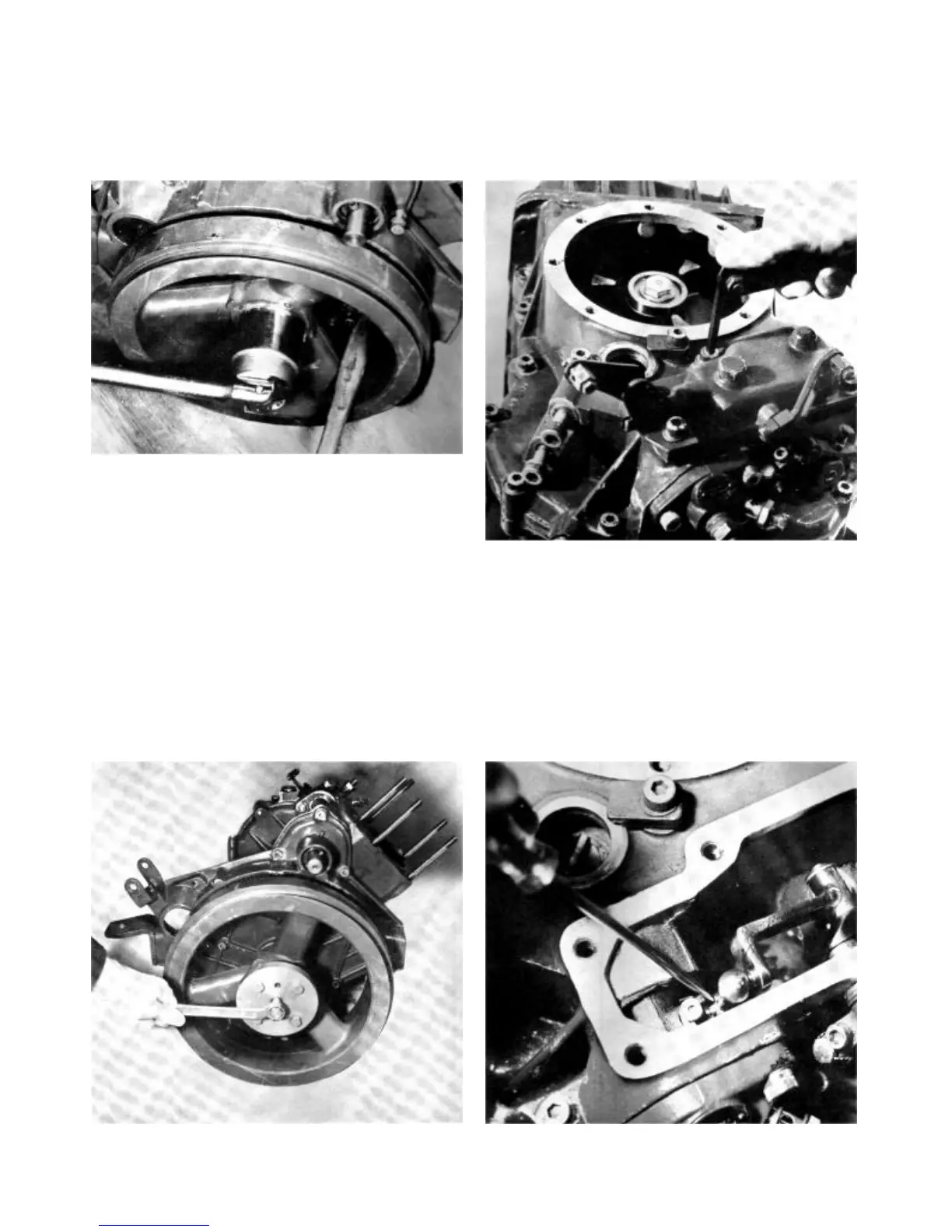

5. Remove the flywheel nuts. Spanner jaw width 55 mm
(2 5/32”). Use a wooden shaft or something similar as a
counter force in the flywheel spokes.
7. Remove the cover for the injection pump. Note! The
bracket for the cold start is fixed with one of the screws.
Take care of the spring under the cover.
6. Fit tool 884078 to the flywheel. Afterwards screw in the
centre screw on the tool until the flywheel loosens.
8. Prise the lower ball joint free from the pump with a
screwdriver.
4
