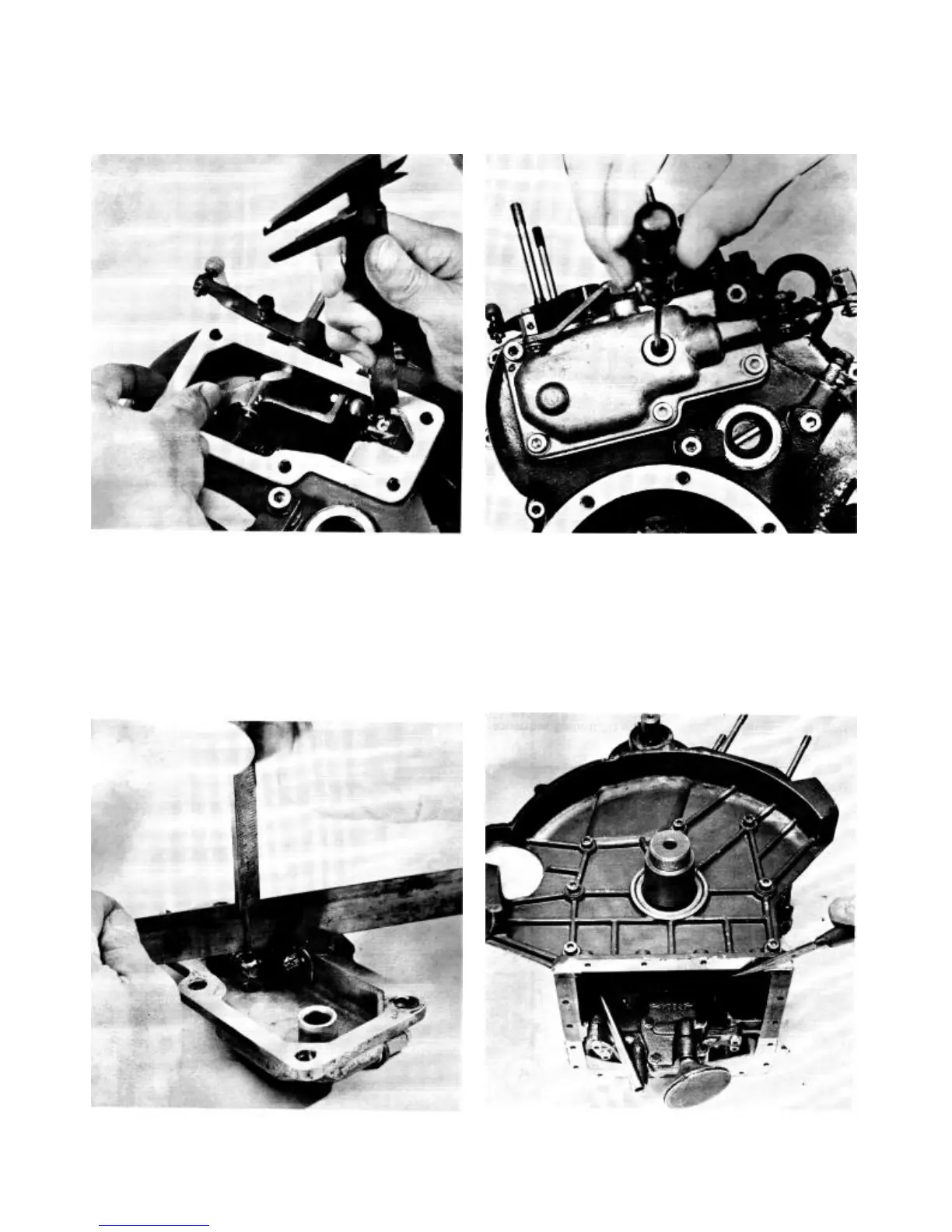

73. Release the plunger 8 mm (0,3150 in.) and measure the
distance from the transmission cover face to the adjusting
screw’s contact point on the control arm.
75. If the engine smokes abnormally, the centre screw on
the cover can be loosened and the adjusting screw can be
adjusted until the engine runs smoke free. See the technical
data for the correct injection amount.
74. Measure the adjusting screw’s length and adjust any
eventual deviation so that the plunger stops when released 8
mm. Screw down the cover afterwards.
76. Fit a new gasket and fit the flywheel cover. Be careful so
that the sealing ring is not damaged. Trim the excessive
gasket.
21
