Standard STD 101-0001
Volvo Group
Version
4
Page
28
a) Placement and attachment
Query
Visual response
b) Datum feature indicator associativity

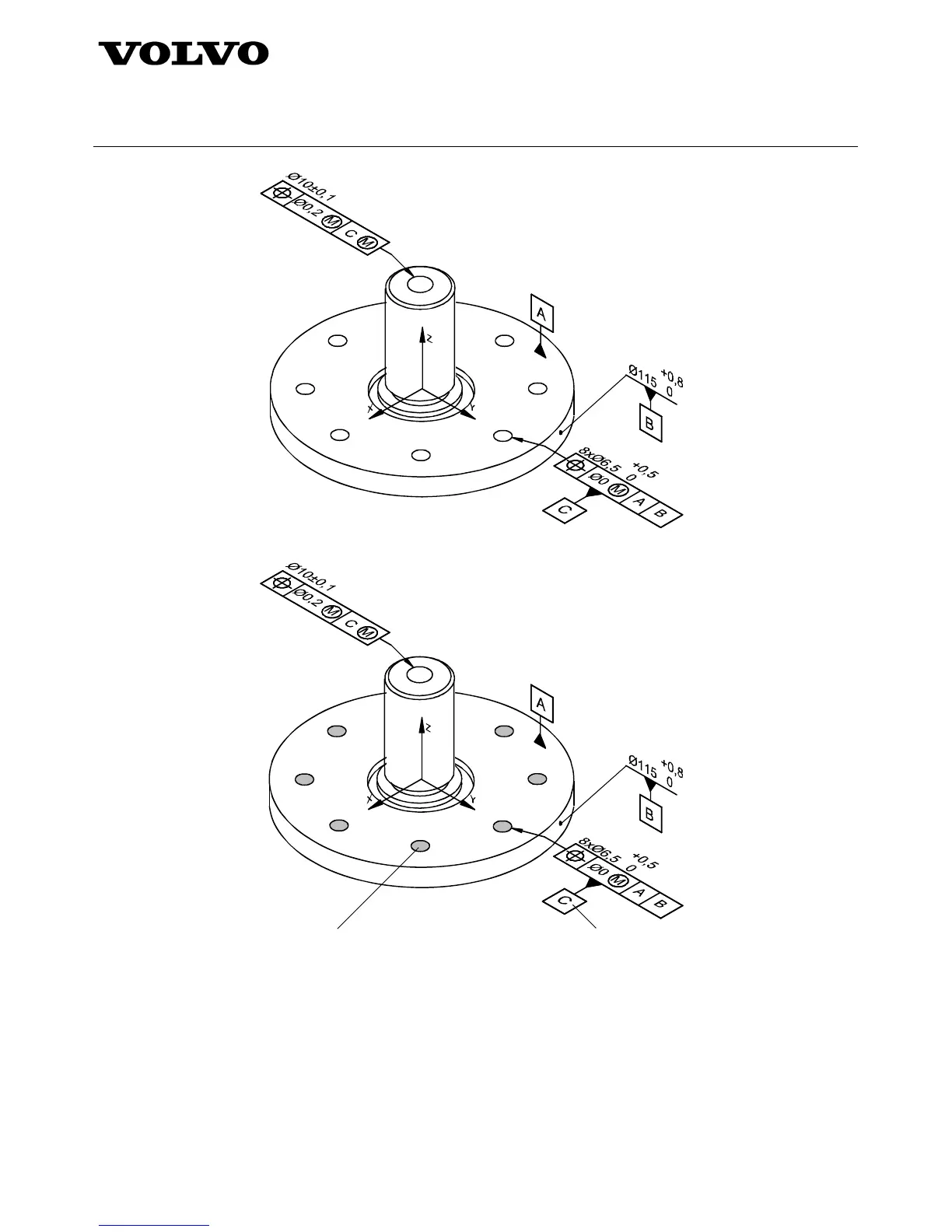

Figure 24 – Pattern of features establish a datum axis
b) When two or more co-planar surface features are used to establish a datum plane, the involved model
surfaces and any applied tolerance for these surfaces shall be organized as an associated group, see
figure 25.
