Standard STD 101-0001
Volvo Group
Version
4
Page
29

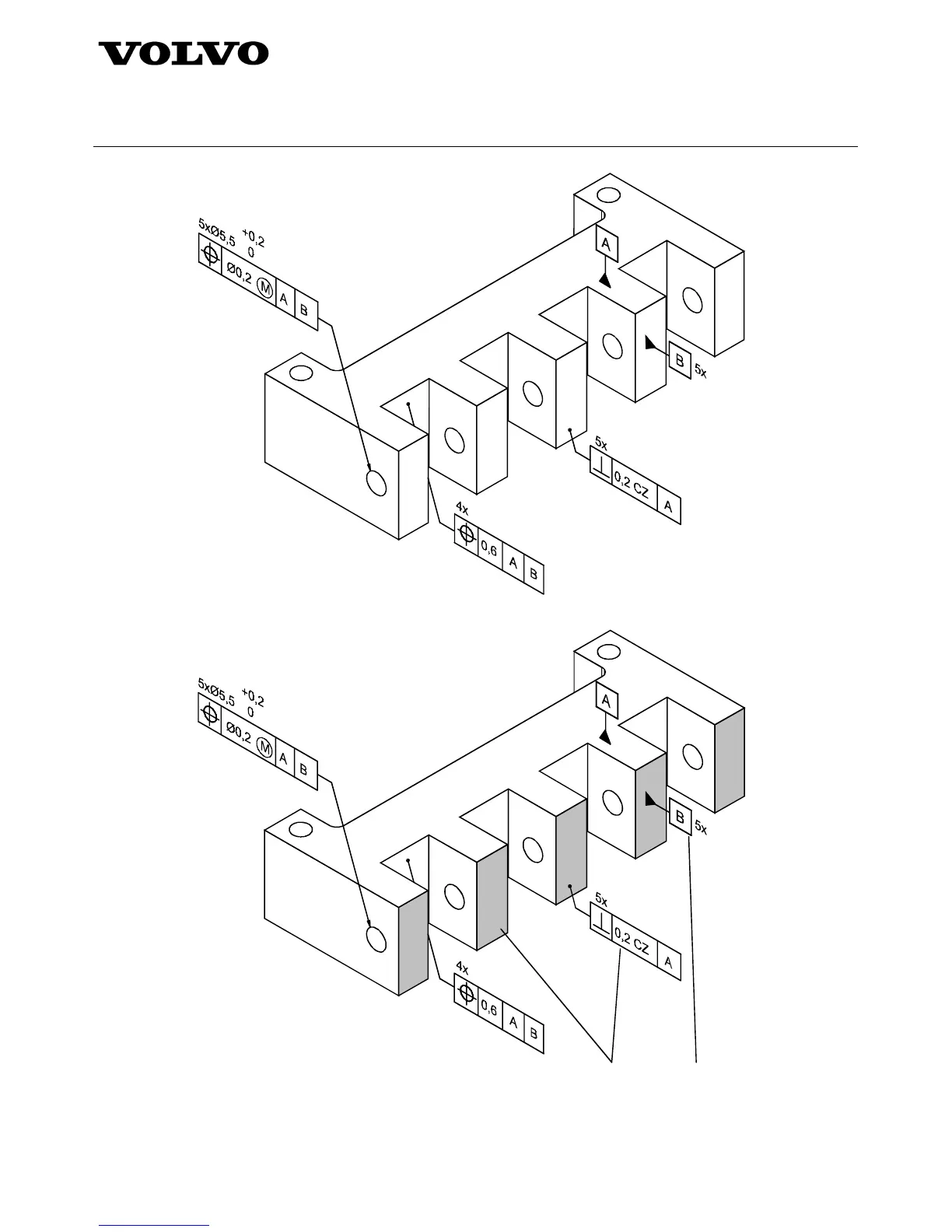

a) Placement and attachment
Visual response Query
b) Datum feature indicator associativity
Figure 25 – Co-planar surfaces establish a datum plane
