P40.28 ≠ 0, when the inverter runs, the PID output is equal to the initial value of PID and keeps the time of P40.28.

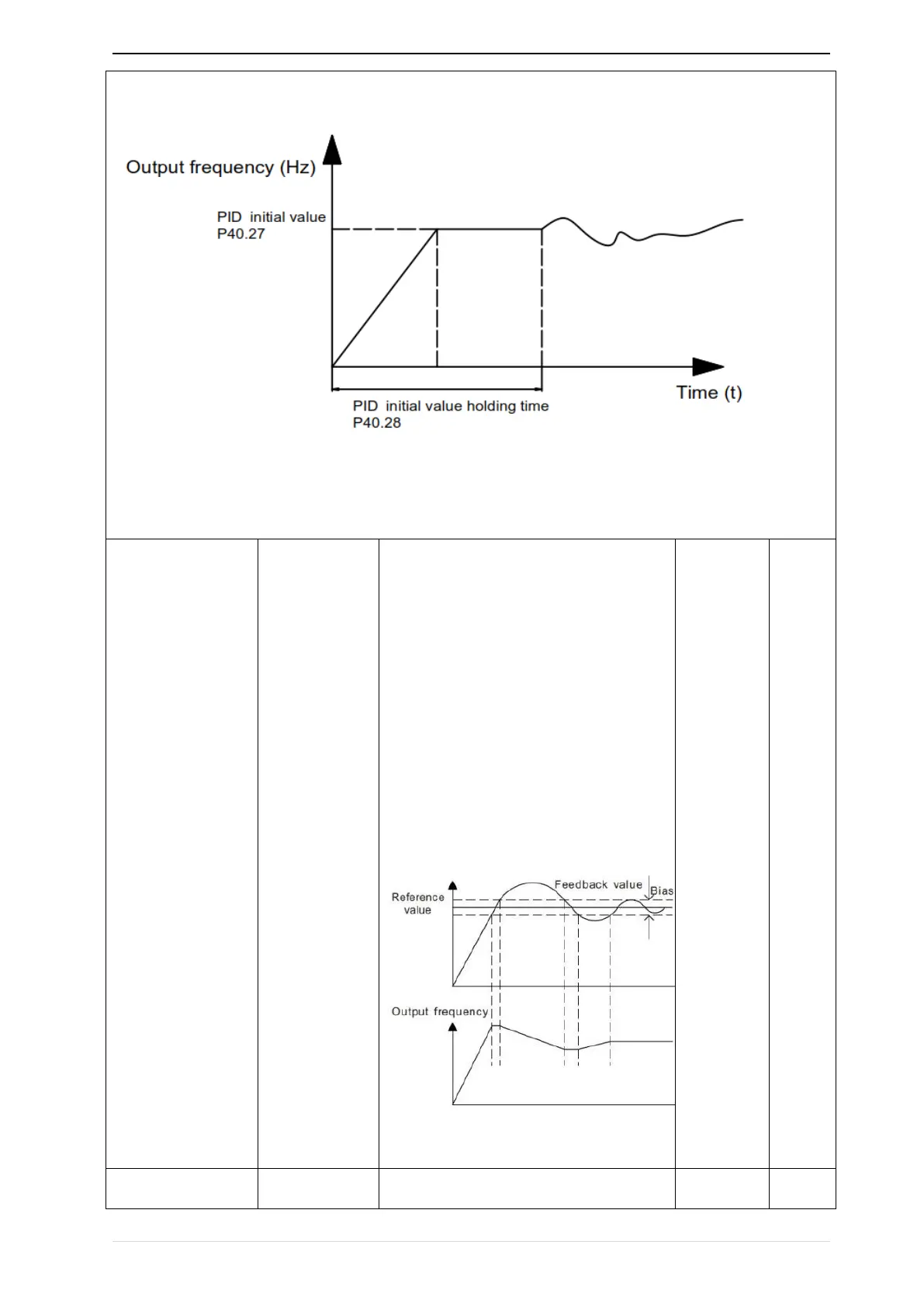

PID initial value function diagram
P40.29
PID devia
tion limit
0.0%～100.0%
The output of PID system is relative to the
maximum
deviation of the close loop reference. As
shown in the
diagram below, PID adjustor stops to work
during the
deviation limit. Set the function properly to
adjust the
accuracy and stability of the system.
0.0%
☆
P40.30
PID differential
0.00%～100.00%
1.00%
☆
