IR610 high performance vector control frequency inverter user manual Chapter 5 function code table
- 144 -
1 2 3
1

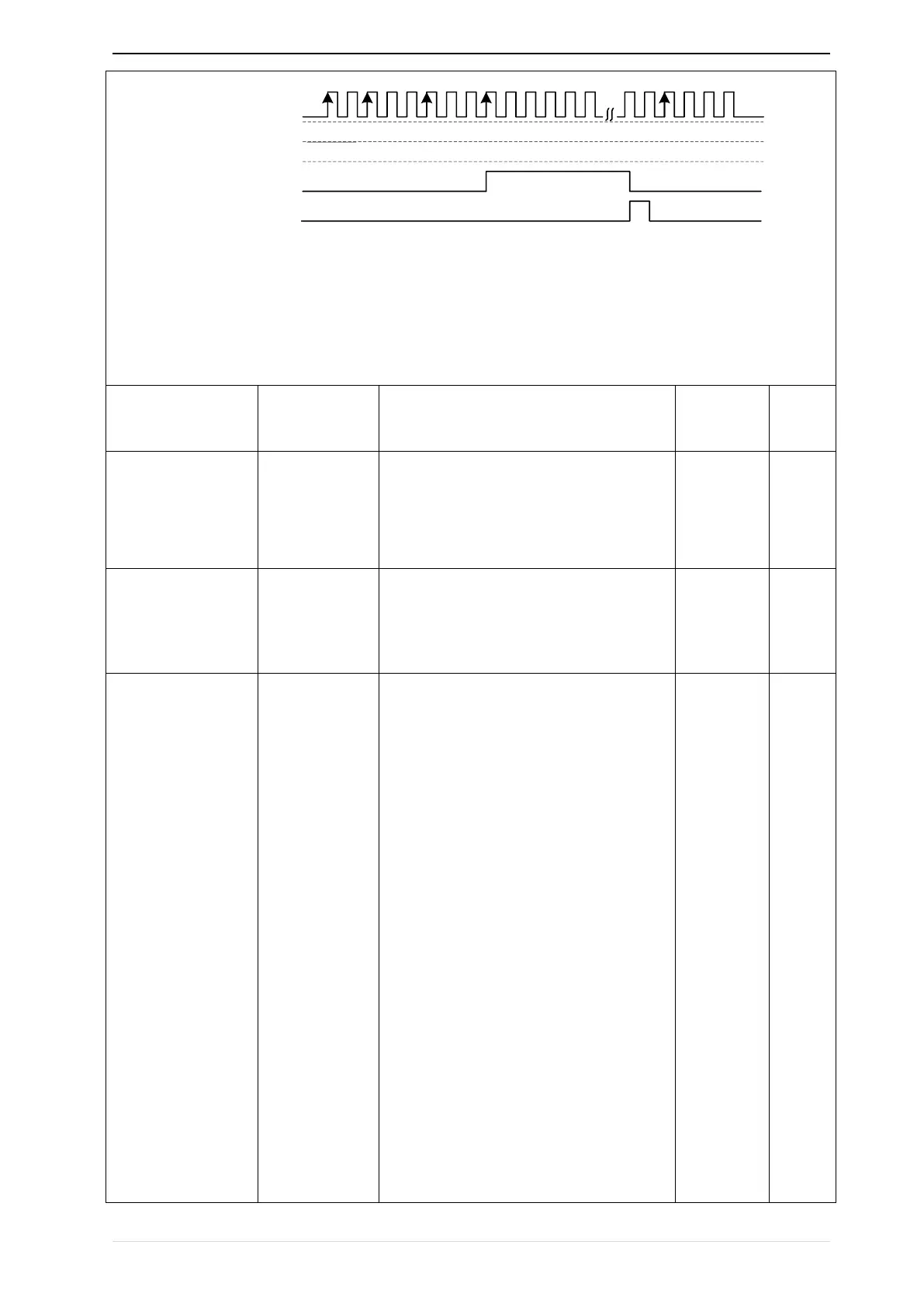

Counter input:
Counter1 before
electronic gear
4 5 6
2
7 8 9
3
Set value arrival output
Counteer reset DI input
0 1 2 3 4
0 1
Counter1 after electronic
gear
By setting a reasonable electronic gear, the counter 1 can realize functions such as fixed length in addition to
the counting function, and the user can flexibly use it in specific applications.
r45.10
Counter 2 actual
value
Read only
-
●
P45.11
Counter 2 set
value
When the counter 2 count value (after the
electronic gear) reaches this setting, the DO
function "Counter 2 set value reached" is
valid.setting range: 1～65535
1000
☆
P45.12
Counter 2
maximum value
1 to 65535, set the maximum value of
counter 2.
Setting range: 1~65535
65535
☆
P45.13
Counter 1
control
Unit’digit: counting method
0: Stop counting after counting the maximum
value
1: Reset after counting the maximum value,
recount from 0
Ten’sdigit: the action after the counter
reaches the set value
0: continue to run
1: Free stop
2: Ramp to stop
3: Emergency stop
Hundred’s digit : Power-down save option
0: Do not save the count value when power is
off
1: save the count value when power is off
001
☆
