17
Load cells should be connected to inputs starting
with input 1 from the front and backwards and
from left to right.
Example:
1 Smart box, 1 load cell at front axle and 2 load cells at
rear axle.
Input Load cell
1 Front axle
2 Rear axle, front left
3 Rear axle, front right
4 Not Used
5 Not Used
6 Not Used
Vehicle Configuration
The following vehicle configurations are available. See
Configuration details later in this section for more
details on the different configurations.
• Truck
• Truck + Trailer (Short Log)
• Truck + Pole Trailer
• Tractor + Jeep + Pole Trailer
• Tractor + Semi Trailer
• Tractor + Jeep + Semi Trailer
• Truck + Trailer Long Log
• Truck + Trailer Long/Short Log
• B-Train
• Generic
• Truck (true axle load)
• Truck (true axle load) + Trailer
A B
5 6
3 4
1 2
FRONT
UP

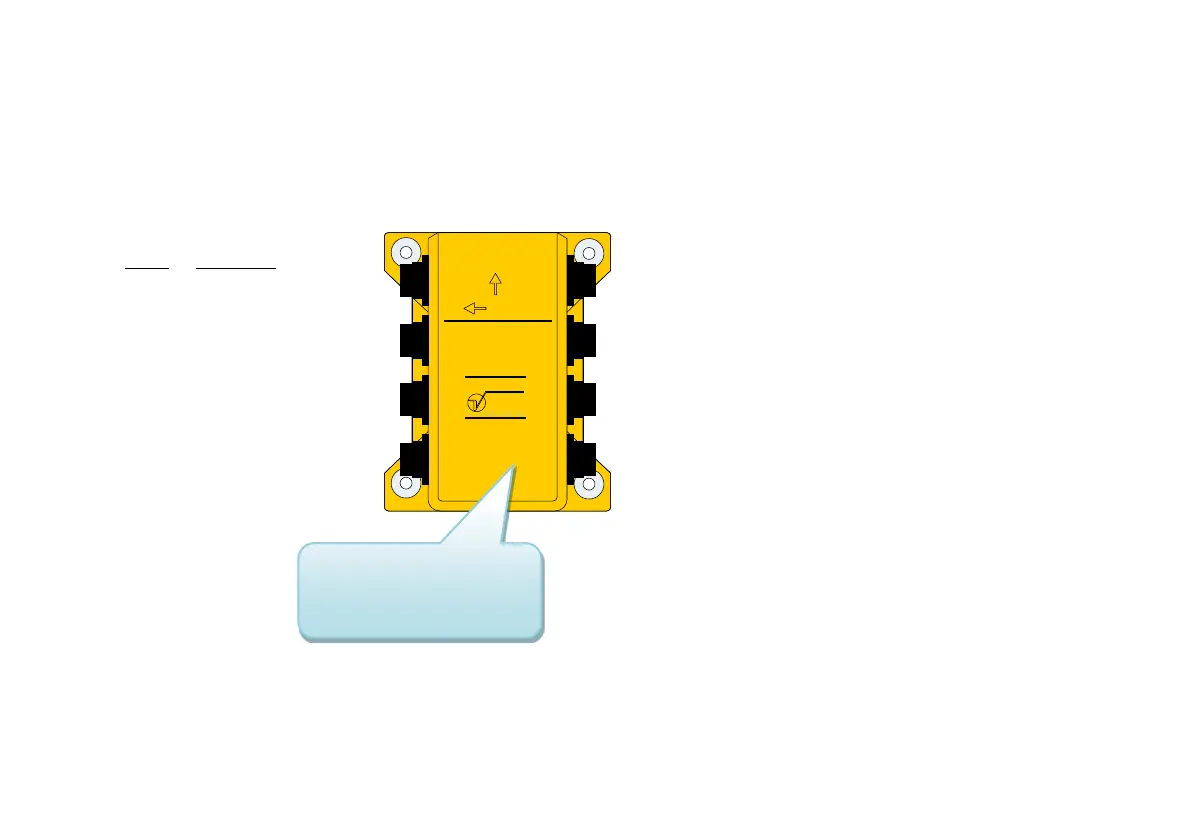

9150 JBOX
VISHAY
PRECISION
GROUP
Jboxes are available
in 2, 4 or 6 inputs
