7. Installation
The 9150 Meter can be installed in three different
positions. Remove the stand from the Meter.
Make sure the nuts in the meter and the knobs with
nylon washers are not lost.
Place the stand at the desired mounting position and
mark the screw holes. Drill holes for the self-tapping
screws that are enclosed in the Meter delivery box.
Note. Make sure nothing is damaged when drilling.
The viewing angle of the meter can be adjusted by
losing the two knobs slightly and turn the Meter to the
preferred angle. Tighten the
knobs by hand firmly to secure
the position.
Dashboard mounted.
This is the standard position on
top of the dashboard or other
similar surface. The stand and
Meter are delivered for this
mounting position.
Roof mounted.

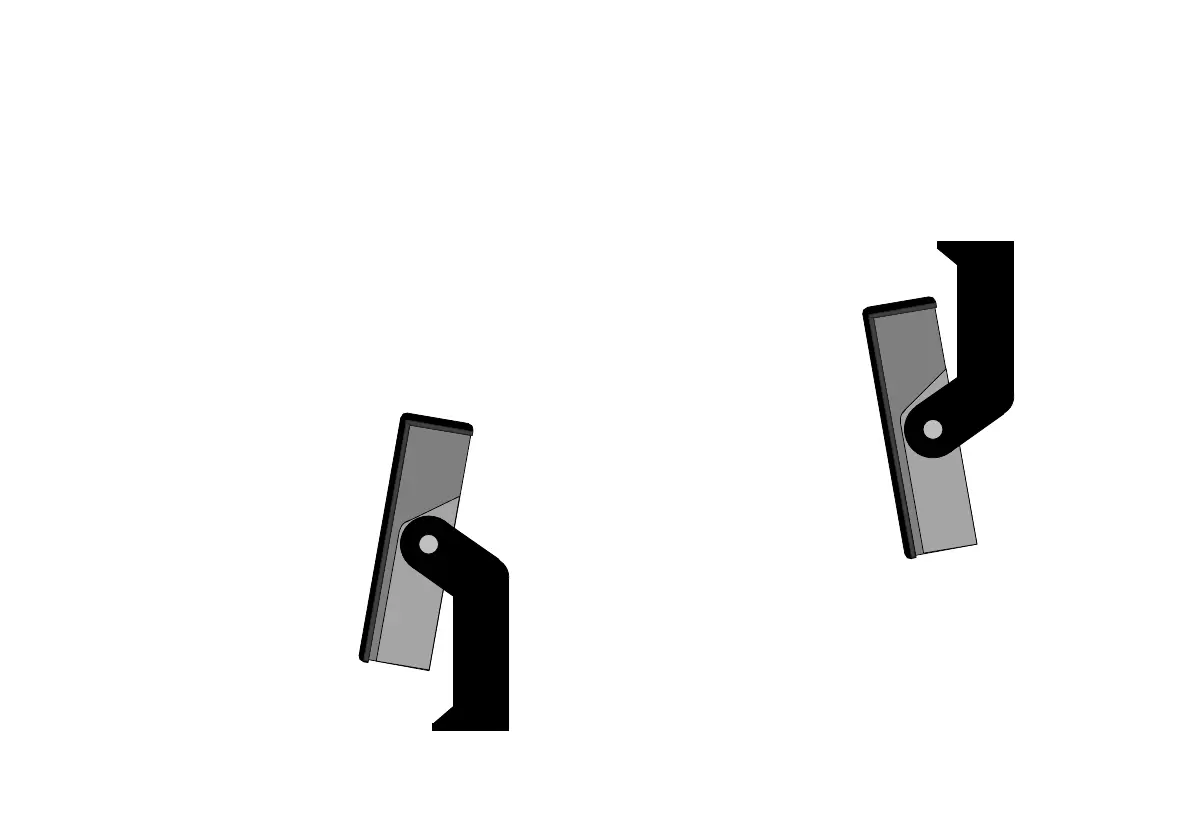

The Meter is mounted hanging below the mounting
surface. See the picture below.
